SHEET METAL FABRICATION

You are here: Home / Services / Sheet Metal
Our Services

Sheet Metal Fabrication

Cutting / Punching / Bending / Welding

Sheet metal fabrication is the most cost-effective processes to force the metal components with specified material wall thickness.



We offer a comprehensive services.

From cutting, welding bending, punching,stamping, drilling, pinning to assembly serivces.



Why Sheet Metal with Jucheng Precision?​​​​​​​  

10+ Years of Experience​​​​​​​
Jucheng Precision, 10+ Years of Expertise in Rapid Prototyping, ISO 9001 Certified.
Fast Turnaround
We deliver high-quality sheet metal services on short timelines (typically in 5 to 12 days)​​​​​​​
Economical Cost
Low setup costs mean low prices for large volumes.
Low Volume Production
 We produce durable parts for prototyping or end use, from 1 PC to 100,000PCS.
Various Post-Finishes
We offer finished like Bead blasting, anodizing, plating, powder coating etc.​​​​​​​
Complex Geometry​​​​​​​
This technique can fabricate the complex structure easily with its diverse processes.​​​​​​​
Sheet metal  Processes We Are Offering
Cutting / Punching / Bending / Welding

Jucheng Precision support projects from simple bent sheet metal prototypes to complex mechanical assemblies by offering a comprehensive services.
Laser Cutting
CNC Punching, Stamping
Sheet Metal Bending
Welding & Assemly​​​​​​​
Laser Cutting
Laser cutting uses a laser to cut the sheet metal part.

A high-power laser is directed onto the sheet and intensified with a lens or mirror to a concentrated spot.

Laser cutters are CNC machines that use a thin, high-powered laser beam to cut materials.

– Cutting area Up to 4000 x 6000 mm
– Maximum material thickness <20mm
– Laser sources Up to 20 kW
– Repeatability Ps: +/- 0.05 mm
– Positioning accuracy Pa: +/- 0.1 mm

READ MORE
CNC Punching, Stamping
When the sheet metal needs to be punctured with holes, a designated punching machine is generally more efficient than the above cutting methods.

Punching involves sandwiching the sheet between a punch and a die; when the punch moves into the die, it forces a hole in the sheet.

The process can also be used to form irregular shapes, by making several small punches in series.

 Most sheet metals can be punched, but the diameter of a round hole should generally be larger than the thickness of the chosen metal.
Sheet Metal Bending
Sheet metal bending is used to create V-shape, U-shape and channel shape bends using a machine called a brake.

Forms generally uniform-thickness material to a specific shape or angle along a straight axis.
 – Metal folding capacity Up to 300 tons
– Maximum bending length Up to 4000 mm
– Maximum thickness Up to 20 mm.

Most brakes can bend sheet metal to an angle of up to 120 degrees, but the maximum bending force is dependent on factors such as metal thickness and tensile strength.


​​​​​​​
Welding & Assembly

Welding
Melts the base materials and fuses it together, forming a metallurgical bond that joins the metals together.

 Assembly
A product may be designed so that several sheet metal parts can be fitted together with joints, screws or other common methods.
This usually comes after the parts have undergone any required finishing processes.

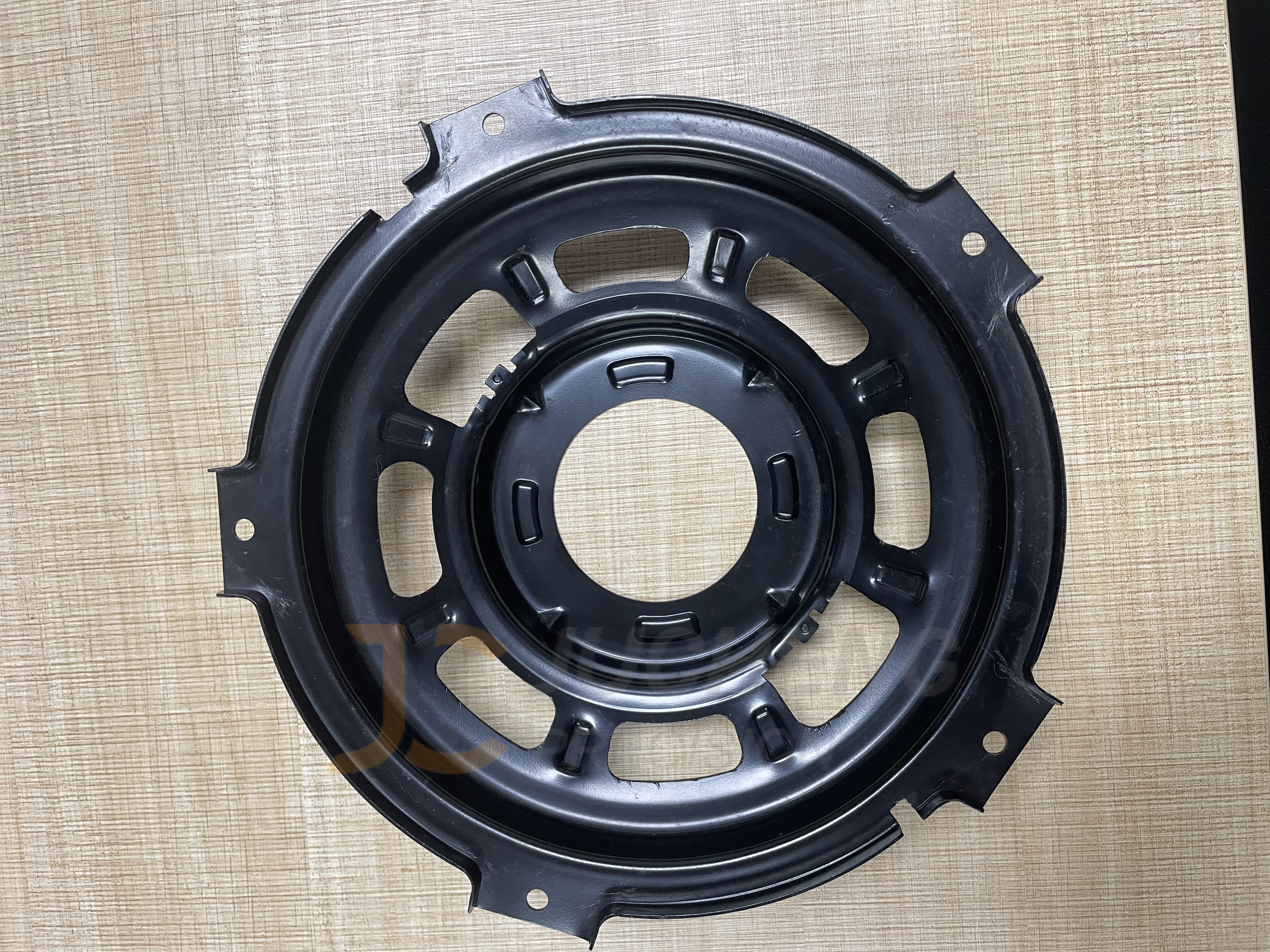

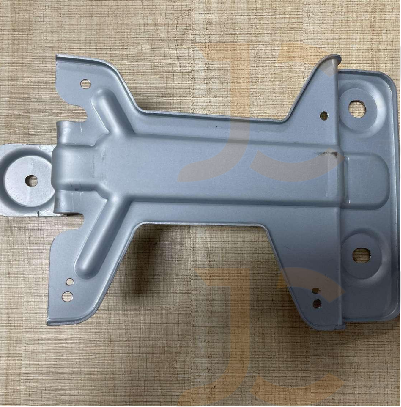

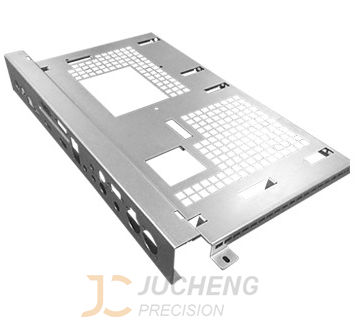

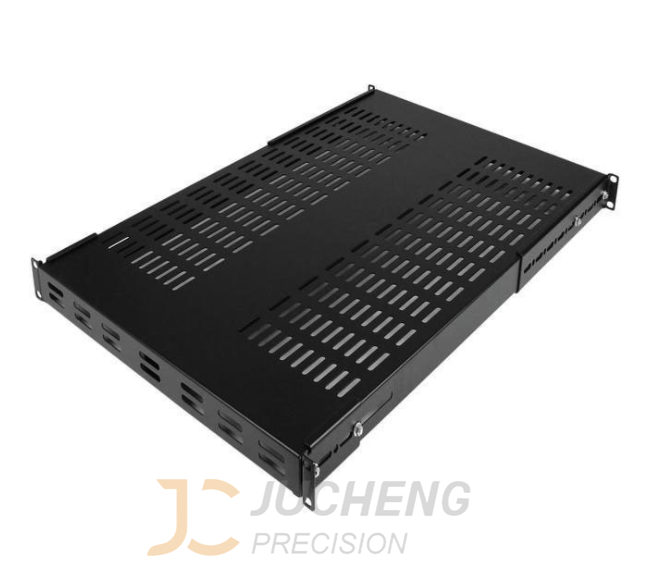

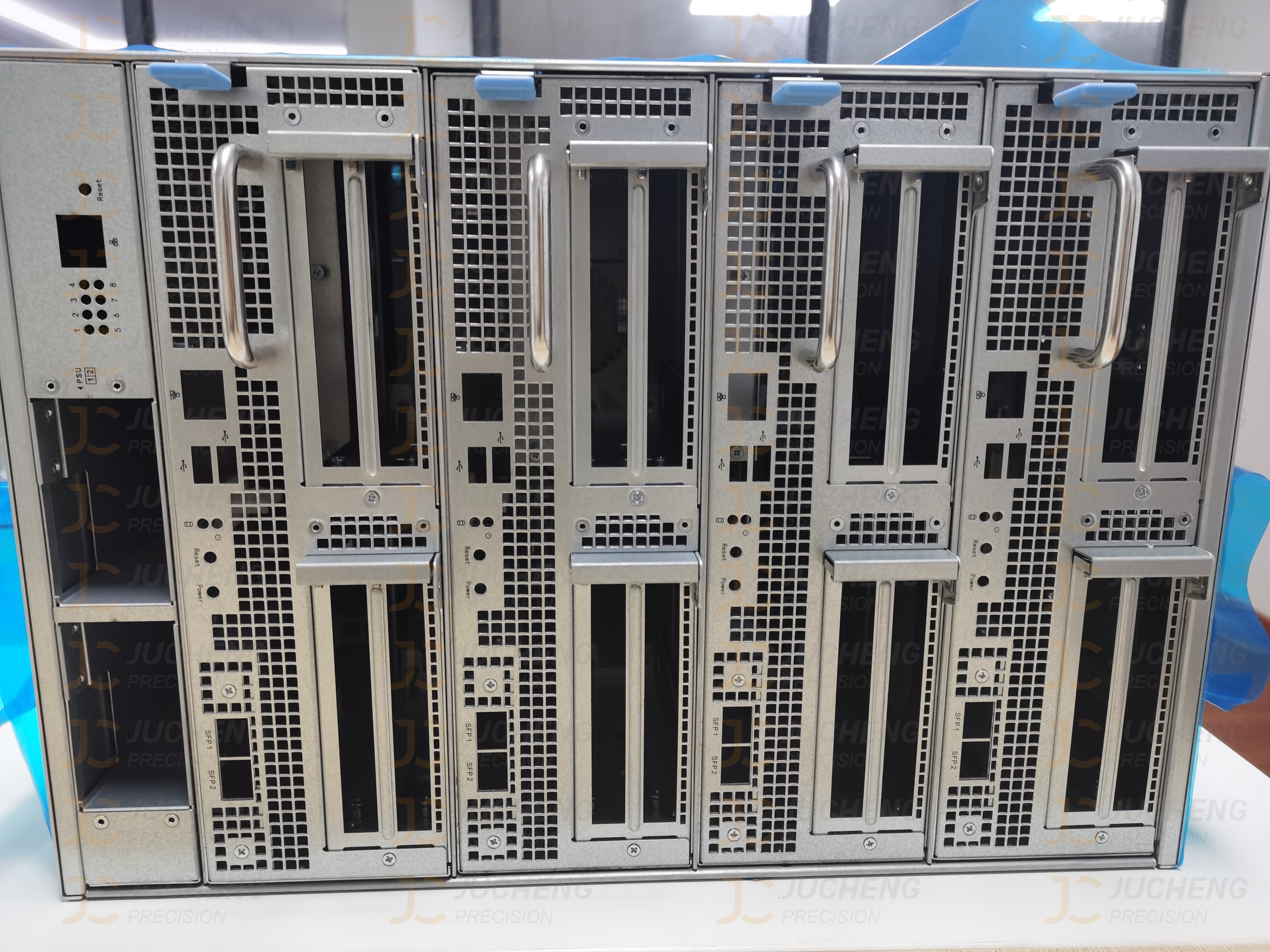

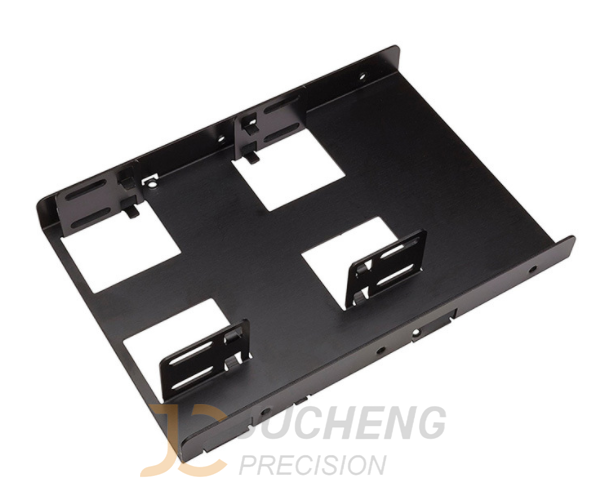

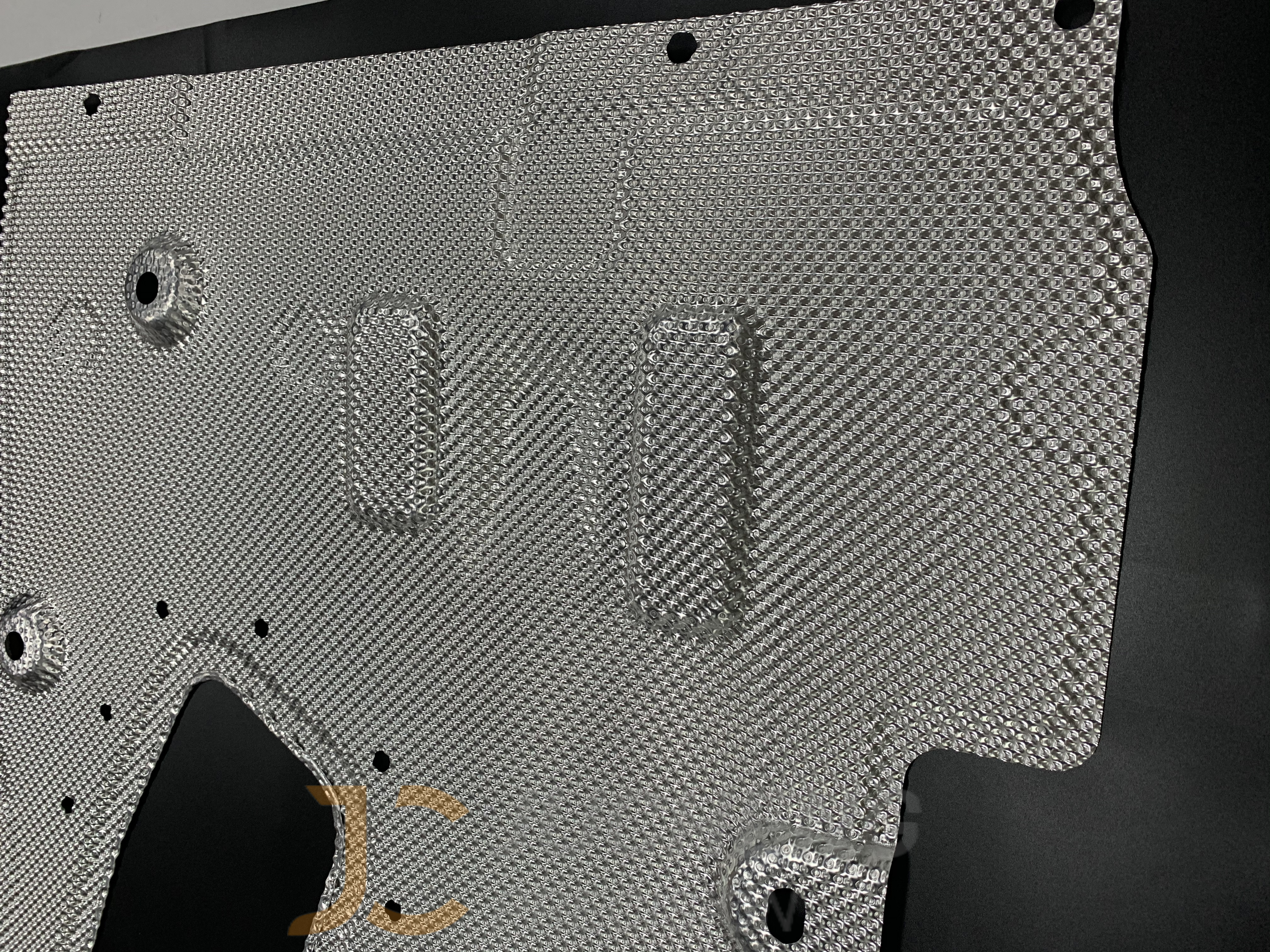

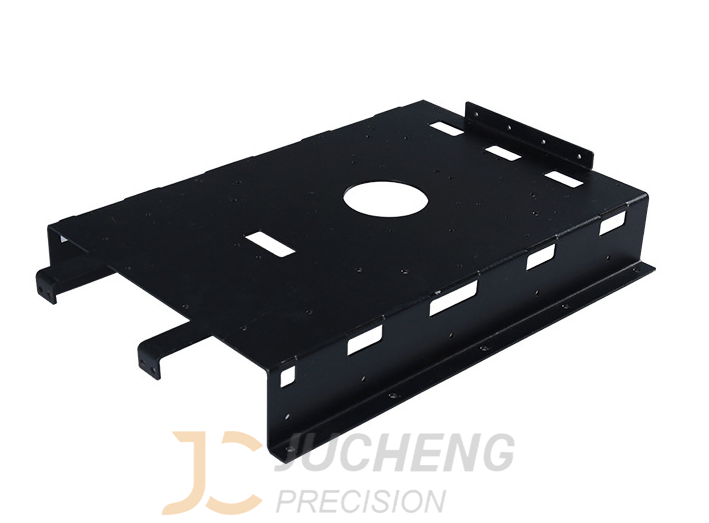

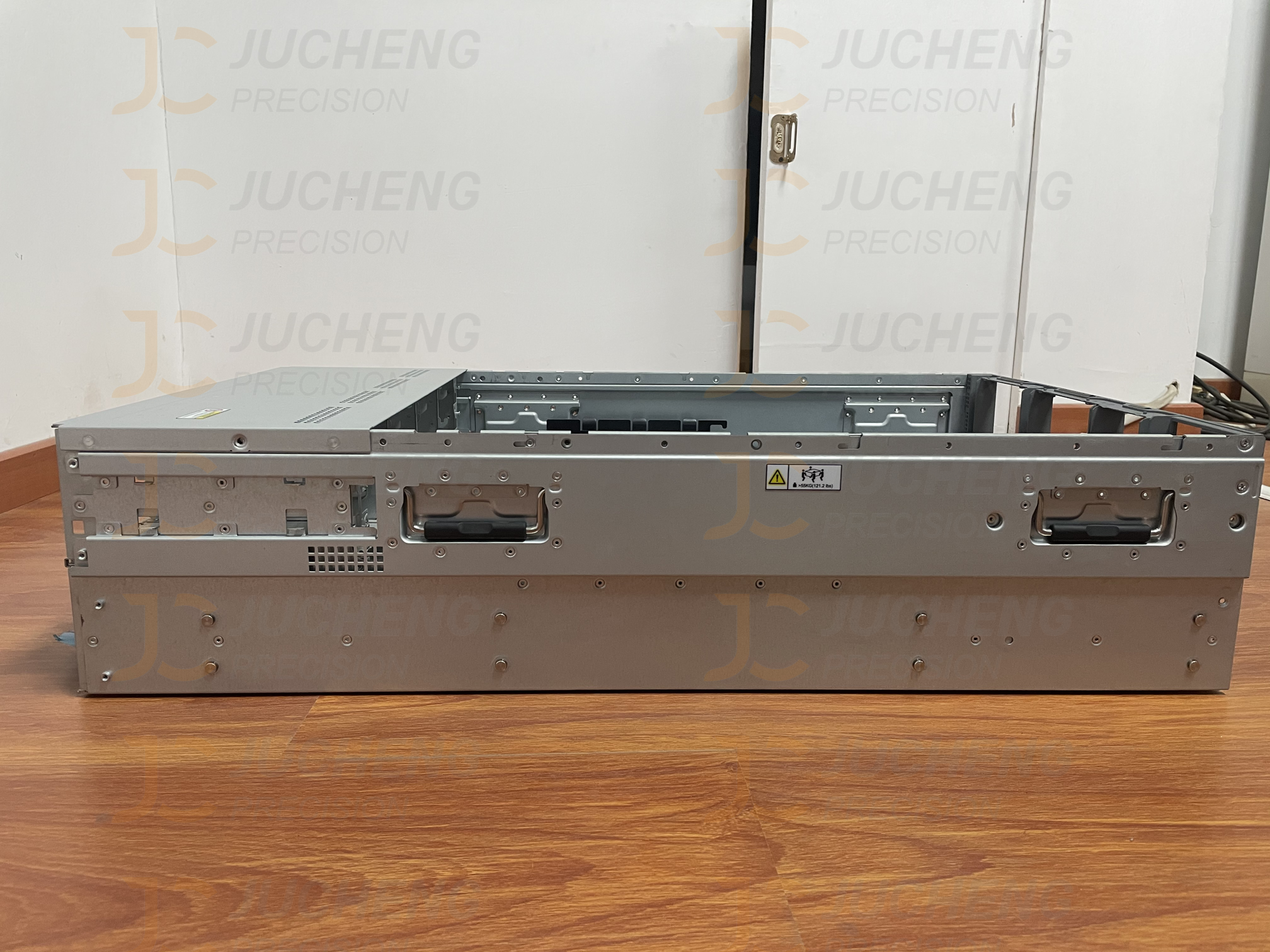

PARTS SHOWS

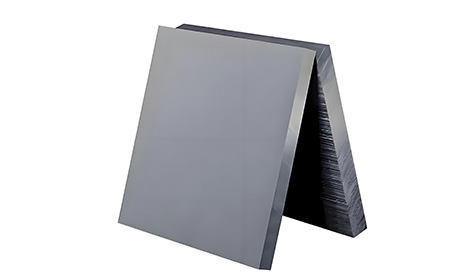

Materials We Use To Sheet Metal Parts

At Shenzhen Jucheng Precision, we have very strong capability and it is the most advantaged service.

  • It is mainly used for electroplating and baking varnish parts, low cost, easy to shape, material thickness ≤3.2mm

  • The material Thickness ≥3.0mm is also used for electroplating and baking varnished parts. More suitable for the flat parts.

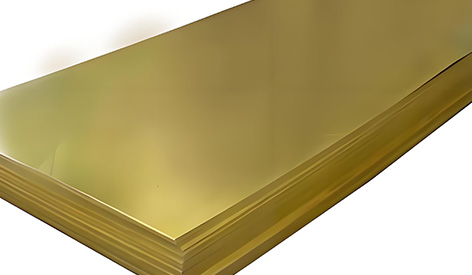

  • It is mainly used conductive parts, the surface treatment could be nickel plating and chrome plating.


Contact Us

If you have any questions, please contact us, we will answer all kinds of questions for you in time.

Get in Touch or Get an Free Quote
  Rapid Prototyping & On-Demand Manufacturing In Days.
  ONE-STOP services from prototyping to batch production.
