SLA 3D Printing Materials
Stereolithography (SLA) is the gold standard in additive manufacturing for producing parts with exceptional surface smoothness and intricate feature detail. Unlike SLS or FDM, which rely on heat, SLA uses a precision UV laser to cure liquid photopolymer resin layer by layer, resulting in isotropic, watertight components. At JUCHENG, we utilize a fleet of large-format industrial SLA printers to offer a versatile library of resin materials. From High-Temp Somos® grades for wind tunnel testing to Optical Clear Resins for lighting prototypes, we deliver parts that simulate the look and feel of final injection-molded thermoplastics like ABS, PC, and PP.

JUCHENG's SLA Production Capabilities

We focus on delivering aesthetic perfection and functional simulation:
  • Industrial Scale: Unlike desktop printers, our industrial SLA machines feature large build platforms (up to 800mm), allowing for single-piece production of large panels or dashboards without gluing.
  • Premium Resins: We partner with top material suppliers (like DSM Somos®) to offer specific formulations that mimic engineering plastics, rather than just generic "modeling resin."
  • Surface Excellence: SLA offers the best "out-of-printer" finish. We further enhance this with in-house wet sanding, polishing, UV clear coating, and painting to achieve Class-A surfaces.
  • Master Patterns: Our high-precision SLA parts are the preferred choice for creating master patterns used in Vacuum Casting (Urethane Casting).

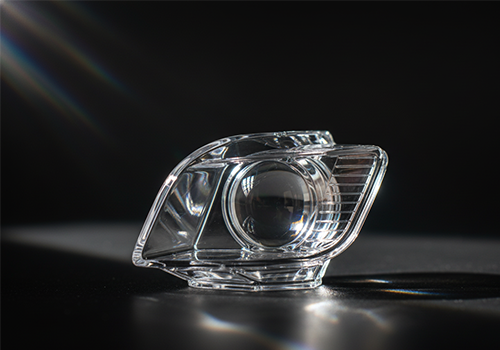

SLA 3D printed

Advantages of SLA 3D Printing Materials


Advantage Detailed Description Key Benefit
Superior Surface Quality Layers are nearly invisible to the naked eye; surfaces are smooth and glass-like. Ideal for visual prototypes, cosmetic models, and marketing samples.
High Precision & Detail Capable of printing extremely fine features and thin walls (min 0.3mm). Perfect for verifying fit and assembly of small, complex electronic components.
Optical Transparency Clear resins can be polished to near-perfect transparency. The only 3D printing method suitable for clear lenses, light pipes, and fluid visualization.
Material Versatility Resins available to simulate flexible, tough, heat-resistant, or ceramic properties. Allows for versatile testing beyond just shape verification.
Watertight Structure Parts are fully dense and chemically bonded. Suitable for fluid flow testing and air-tight enclosures.

Technical Parameters & Material Properties

We offer a comprehensive range of functional and aesthetic resins:

Grade Category Specific Models Characteristics Ideal Uses
Standard Resin (ABS-like) White / Gray Resin (Generic) Godart® 8011 General purpose resin. Good balance of detail, speed, and cost. Surfaces are easy to sand and paint. Opaque white or grey color mimics molded ABS. Visual models, concept verification, artistic figurines, master patterns for vacuum casting.
Clear Resin (PC-like) Transparent Resin Somos® WaterShed XC 11122 High optical clarity. Water-resistant. Simulates Polycarbonate or Acrylic. Can be finished to glass-like transparency (requires clear coating to prevent yellowing). Lenses, bottles, light guides, microfluidic devices, transparent housing prototypes.
Tough / Durable Resin Somos® 14120 Godart® 8111 Low viscosity resin producing parts with high impact strength and moisture resistance. Simulates the durability of ABS or PBT. Very consistent surface. Consumer products, mobile phone casings, automotive parts, functional assemblies.
High-Temp Resin Somos® PerFORM Somos® Imagine 8000 Ceramic-filled (PerFORM) or high-performance resin. Extremely high stiffness and heat deflection temperature (up to 260°C). Excellent detail resolution. Under-the-hood components, wind tunnel test models, injection mold tooling, electrical housings.
Functional Resin (PP-like) Flexible / Tough Resin Simulates Polypropylene (PP). High elongation and flexibility. Resists breaking when snapped or bent. Good fatigue resistance. Snap-fit assemblies, living hinges, protective packaging, wearable device prototypes.
Castable Resin Wax-like Resin Burns out cleanly with zero ash content. Captures ultra-fine details. Designed specifically for investment casting processes. Jewelry masters, dental crowns, precision metal casting patterns.

SLA Printing Guidelines & Design Tips

  • Support Structures: Unlike SLS, SLA requires support structures for overhangs. We carefully place supports to minimize scarring, but small marks may remain on the bottom surface (which we sand smooth).
  • UV Sensitivity: SLA resins cure with UV light. Prolonged exposure to direct sunlight can cause parts to become brittle or yellow over time. Painting or UV-blocking clear coats are recommended for longevity.
  • Hollowing: Large solid parts are typically hollowed to reduce weight and resin cost. Drain holes must be added to allow un-cured liquid resin to escape from the interior.
  • Brittleness: While tough resins exist, standard SLA parts are generally more brittle than SLS nylon. They are not recommended for high-impact testing.

Application Scenarios

  • Consumer Electronics: Smartphone mockups, earbud casings, smart watch prototypes (smooth feel).
  • Automotive: Headlight lens prototypes (Clear), interior knobs, dashboard buttons, wind tunnel models (High-Temp).
  • Medical: Anatomical models for surgery planning, clear microfluidic chips, hearing aid shells.
  • Entertainment: High-detail movie props, character figurines, architectural scale models.

Physical Properties Table

Property Standard White (ABS-like) Clear Resin (PC-like) Somos® 14120 (Tough) High-Temp (Somos® PerFORM) Unit
Tensile Strength 45 - 50 50 - 60 46 65 - 80 MPa
Elongation at Break 10 - 20 10 - 20 15 - 25 1 - 3 %
Flexural Modulus 2,200 2,500 2,400 10,000 MPa
Heat Deflection (0.46 MPa) 50 - 55 50 - 55 60 > 260 °C
Color White / Grey Clear White Off-White / Brick Red -
