Quality Control
Jucheng Precision always take high quality as our top priority.
We strictly follow the ISO 9001 certified quality management system.
All the parts made at Shenzhen Jucheng Precision will rigorously tested by our engineers.
 Usually, We provide the following report:
⦁ 3D scanning report
⦁ Full dimensional Report
⦁ Material test report
⦁ Material certificate
⦁ First article inspection report
⦁ PSW
⦁ PPAP
⦁ Moldflow
⦁Control Plan etc
 List of detection equipment
We are equipped with 2 sets of ZEISS spectrum (Coordinate Measuring Machine (CMM) ), 1 set of Mitutoyo height gauge, 1 set of 2.5 CMM (Explorer), Caliper/Caliper, Micromete, Plug Guage, Filler Guage, Sclerometer/hard meter, Rough Insturment/surface roughness meter.

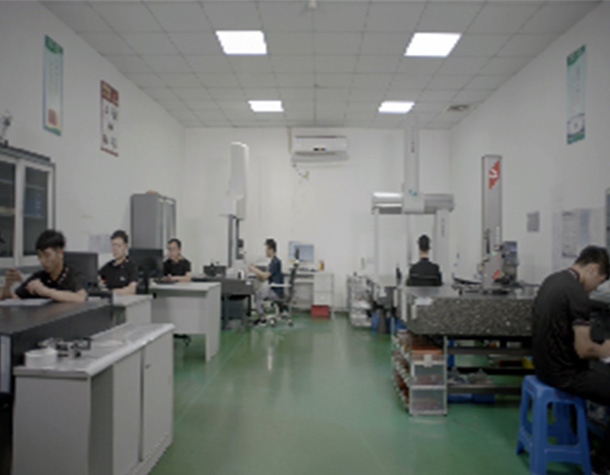

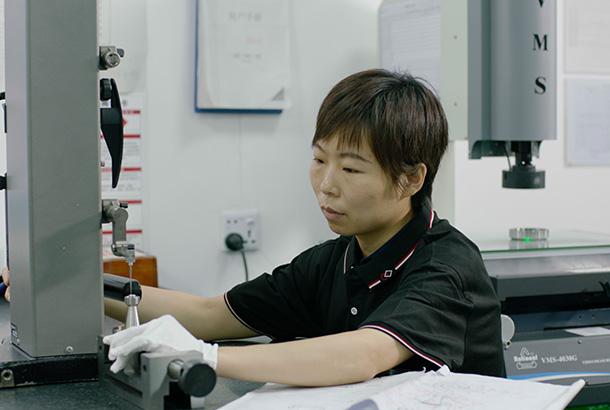

QC Department

QC Department

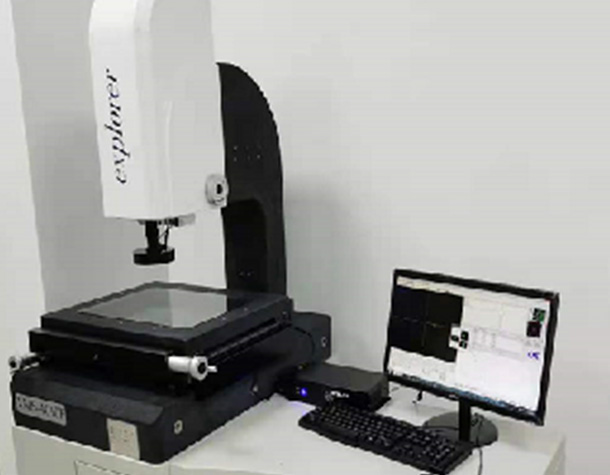

TDM

TDM

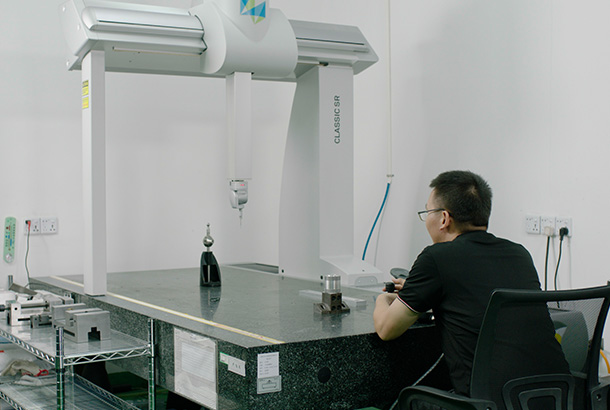

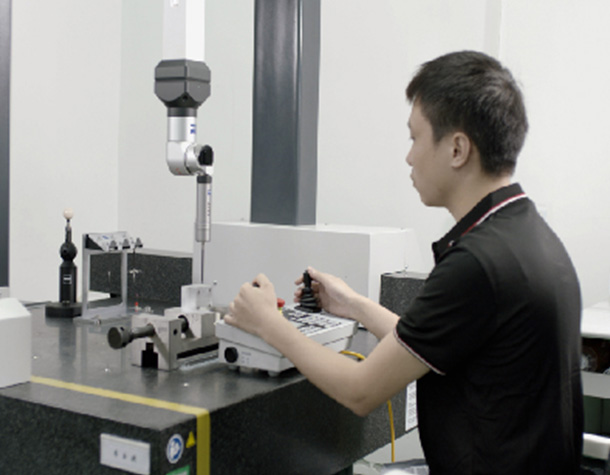

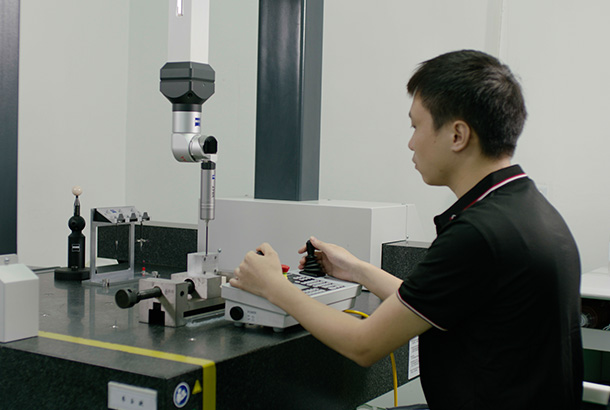

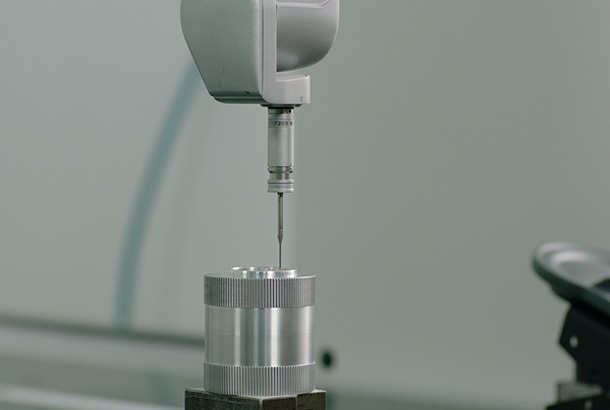

CMM

CMM

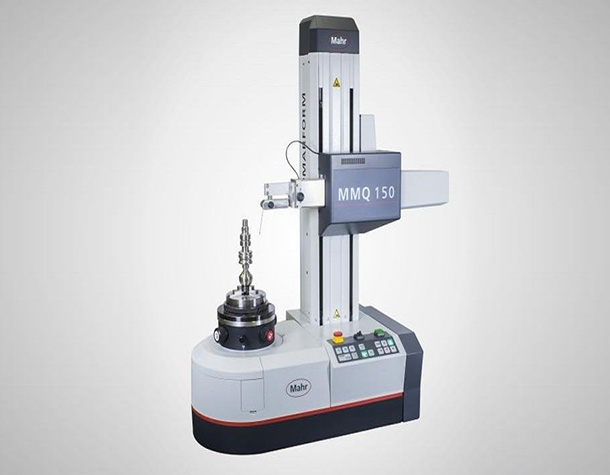

Pin gauge

Pin gauge

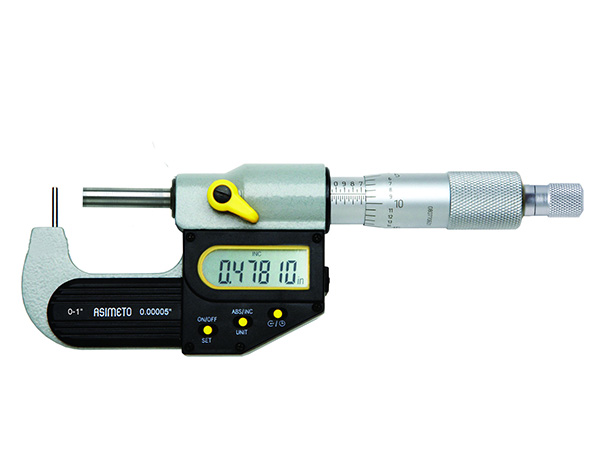

Micrometer

Micrometer

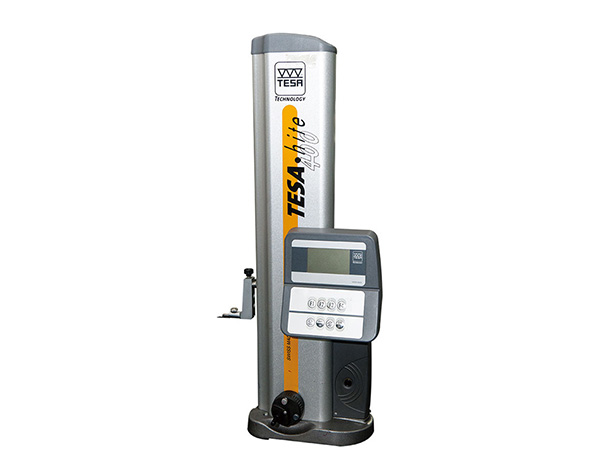

Height gauge

Height gauge

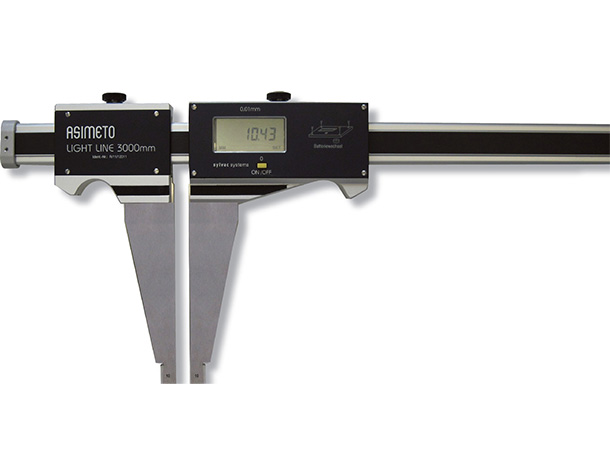

callipers

callipers

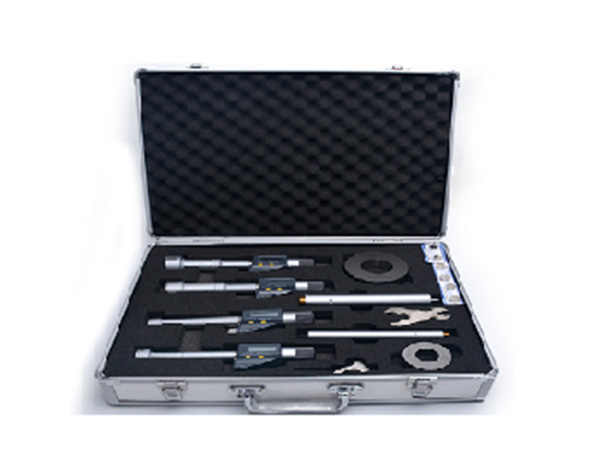

Digital 3 point inside Micrometer

Digital 3 point inside Micrometer
How we check your parts?
check_img_1

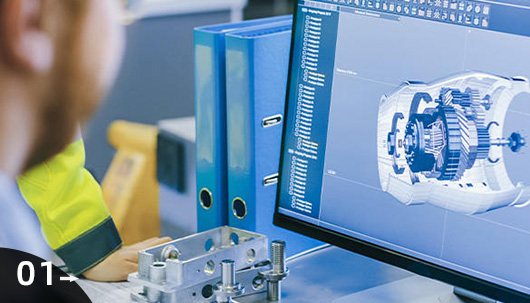

Drawings Checking

we will check every item on the BOM like quantity, material, process, and surface finish requirements, and see if they are in accordance with the quotation. Meanwhile, our engineering team will check 3D and 2D drawings to see if there are any design errors, in accordance, with interference, and confirm all the tolerance are okay to be machined.

Meanwhile, DFM will be sent when it is necessary.
check_img_2

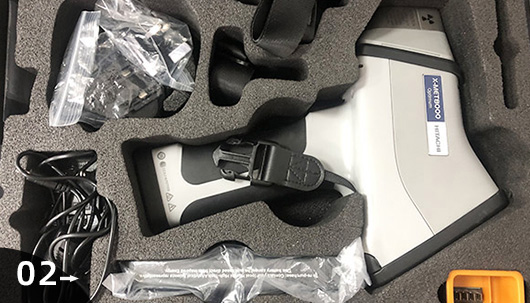

Incoming Material inspection

We asked our material supplier to provide certification and paste marks for all the materials. And we will check the materials with Spectrometer to test the material chemical components.
check_img_1-(2)

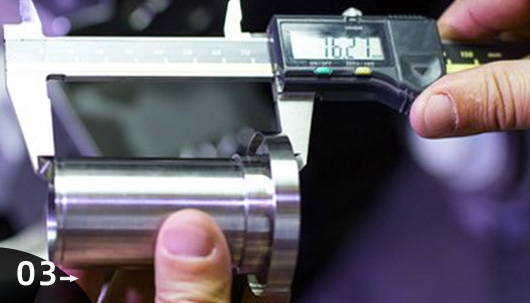

In processing checking

In this stage, we will go both with visual checking and manual checking.

Our experienced and skillful craftsman will check the parts with 3D drawings.

We understand that it is very essential to check the parts when machining and avoid time-wasting. If necessary, we can provide you with the first sample when it comes to batch production.
check_img_2-(2)

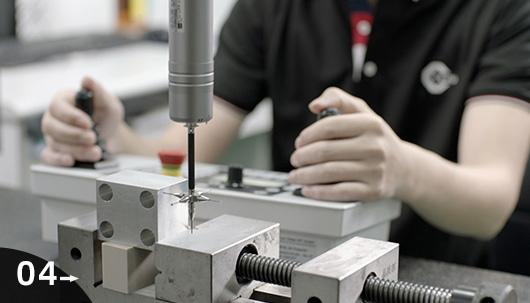

Final Inspection

We have 6 well-trained engineers in our QA department.

We can provide inspection reports like 3D scanning reports, Cleanness reports,100% dimensional reports, PPAP, Control Plans, etc.
