PA+GF30 (Glass Filled Nylon) CNC Machining Material
PA+GF30 refers to Polyamide (Nylon) reinforced with 30% glass fibers. This composite material significantly upgrades the properties of standard nylon, offering vastly superior stiffness, tensile strength, and heat resistance. It is often used as a direct replacement for metal die-cast parts in weight-sensitive applications.
PA+GF30 CNC Machining

JUCHENG's PA+GF30 Machining Capabilities

At JUCHENG, we have specialized expertise in CNC machining Glass-Filled Nylon. Processing this abrasive material requires hardened tooling and optimized cutting strategies to maintain tolerances and surface quality. We stock and machine both PA6-GF30 and PA66-GF30 grades, delivering robust structural components for the automotive, power tool, and industrial machinery sectors.

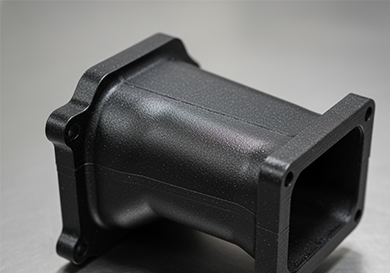

CNC machined PA66 GF30

Advantages of CNC Machining PA+GF30


Advantage Detailed Description Key Benefit
High Stiffness & Strength Glass fibers act as reinforcement, doubling or tripling the tensile strength and stiffness compared to unfilled nylon. Ideal for structural parts that must bear heavy static loads without bending or deforming.
Superior Heat Resistance Significantly increases the Heat Deflection Temperature (HDT), allowing parts to perform near engine blocks or heat sources. Essential for under-the-hood automotive parts and power tool housings.
Dimensional Stability Glass fibers reduce the coefficient of thermal expansion and moisture absorption rate compared to standard nylon. Parts hold their shape better in varying temperatures and humid environments.
Creep Resistance Resists deformation under long-term stress or load much better than unfilled plastics. Suitable for functional parts like snap-fits, housings, and fasteners under constant tension.
Metal Replacement Offers strength comparable to some metals (like magnesium or aluminum alloys) but at a fraction of the weight. Reduces overall system weight and production costs without sacrificing durability.

Technical Parameters & Material Properties

We offer different reinforcement levels, with 30% being the industry standard:

Grade Category Composition Detailed Characteristics Ideal Applications
PA66 GF30 (Standard) Nylon 66 + 30% Glass Fiber The industry standard for high-performance engineering plastics. It offers the highest stiffness, mechanical strength, and heat resistance (HDT up to 250°C). It is harder and more rigid than PA6 GF30 but slightly more brittle. Automotive intake manifolds, radiator end tanks, power tool casings, structural gears.
PP CopolymPA6 GF30er Nylon 6 + 30% Glass Fiber Offers improved toughness and better surface finish compared to PA66 GF30. It processes slightly easier and is often more cost-effective. Excellent for parts requiring both strength and impact resistance. Consumer product housings, furniture components, industrial handles, engine covers.
PA66 GF15 / GF50 15% or 50% Glass Fiber GF15: Lower glass content for a balance of toughness and stiffness.GF50: Extremely high stiffness for ultimate metal replacement, but very abrasive to tools and brittle. GF15: Impact-prone housings.GF50: Heavy-duty structural brackets replacing aluminum.

CNC Machining Guidelines for PA+GF30

Machining glass-filled nylon presents unique challenges due to the abrasive nature of glass fibers. JUCHENG uses the following protocols:
  • Tooling Strategy: Glass fibers are extremely abrasive and will rapidly dull standard high-speed steel (HSS) tools. We use carbide or diamond-coated (DLC) tools to maintain sharp cutting edges and dimensional accuracy.
  • Surface Finish: Machined glass-filled parts have a matte, slightly rough texture because the glass fibers are exposed at the surface. They do not polish to a high gloss like unfilled nylon.
  • Warpage Control: Glass-filled materials are anisotropic (properties vary by direction). Machining can release internal stresses leading to warp. We use symmetrical material removal and annealing to keep parts flat.
  • Heat Management: Although heat-resistant, the plastic matrix can still melt. We use aggressive cooling to prevent the plastic from smearing over the glass fibers.

Application Scenarios

PA+GF30 is the go-to material for demanding structural applications:
  • Automotive: Air intake manifolds, engine covers, radiator tanks, oil pans, pedal assemblies.
  • Power Tools: Drill housings, grinder bodies, internal gearboxes (high heat/vibration resistance).
  • Industrial: Pump bodies, impellers, heavy-duty valve handles, conveyor system structural links.
  • Consumer Goods: High-end office chair frames, durable sports equipment components.
  • Aerospace: Structural brackets, cable clamps, interior mechanical assemblies.

Physical Properties Table

Property Unfilled PA66 PA66 GF30 Unit
Density 1.15 1.35 - 1.40 g/cm³
Tensile Strength 85 160 - 180 MPa
Flexural Modulus 2,900 9,000 - 10,000 MPa
Elongation at Break 60 3 - 5 %
Heat Deflection Temp (1.8 MPa) 70 - 85 250 °C
Water Absorption (24h) 1.2 0.9 %
Hardness (Rockwell) R120 R121 / M100 -
(Note: The values above illustrate the massive performance jump when glass fibers are added. Actual values depend on the specific resin supplier like Zytel® or Durethan®.)
