Precision 3-Axis & 5-Axis CNC Milling Solutions
CNC Milling is the backbone of modern subtractive manufacturing, capable of sculpting solid blocks of material into high-precision components. At JUCHENG, we don't just cut metal; we engineer solutions. Our facility houses a diverse fleet of machining centers, ranging from high-speed 3-Axis vertical mills for cost-effective prismatic parts to advanced 5-Axis simultaneous machining centers for complex, multi-sided geometries.
Whether you need a single prototype machined from PEEK or a production run of 10,000 aluminum housings, our milling department offers the versatility to handle it. We combine state-of-the-art CAM programming with rigid machine setups to hold tight tolerances and deliver surface finishes that often require no secondary polishing.
3 & 5 Axis CNC Milling Service

Our Milling Workshop: Where Precision Meets Efficiency

We tailor the machine selection to your specific design requirements to optimize cost and quality:
  • 3-Axis Milling: The industry standard for drilling, tapping, and milling flat surfaces or simple contours. Perfect for electronic enclosures, base plates, and brackets.
Capacity: High-speed spindles for aluminum; high-torque spindles for steel.
  • 4-Axis Machining: Adds a rotary axis (A-axis) to the standard setup. This allows us to machine the sides of a part or cut continuous helix features without manually fixturing the part multiple times.
  • 5-Axis Simultaneous Milling: Our flagship capability. The tool moves along X, Y, Z, A, and B axes simultaneously. This allows the cutter to approach the workpiece from any angle, enabling the machining of impellers, turbine blades, and organic shapes with deep pockets.
  • Micro-Milling: specialized high-RPM capability for creating miniature features with tools as small as 0.1mm in diameter.
  • Tolerance Standard: We routinely hold ±0.01mm (0.0004") for metal parts and ±0.05mm for plastics.

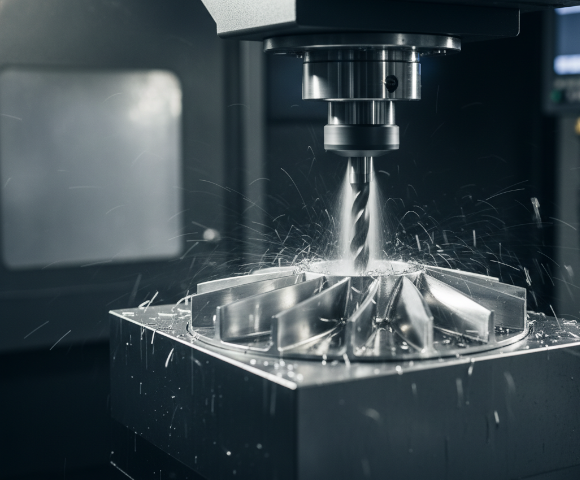

5-axis CNC milling

Product Gallery Categories

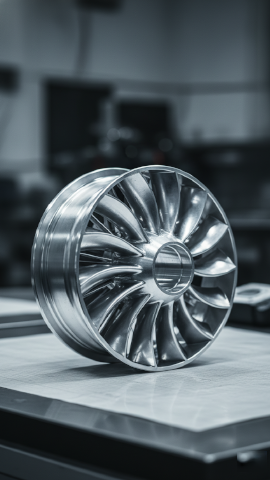

Complex 5-Axis Geometries
Complex 5-Axis Parts

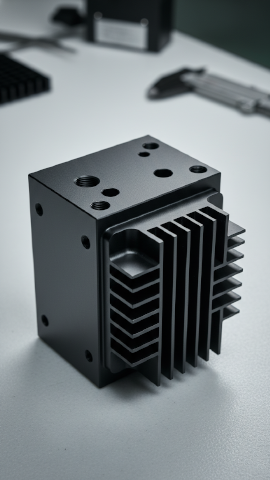

Prismatic 3-Axis Parts
Precision 3-Axis Components

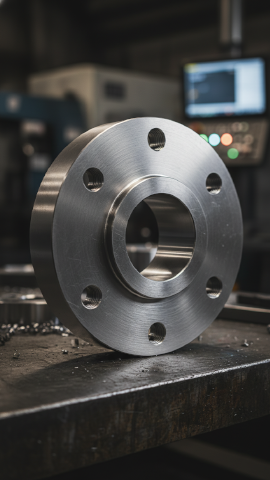

Hard Metal Components
Hard Metal Milling

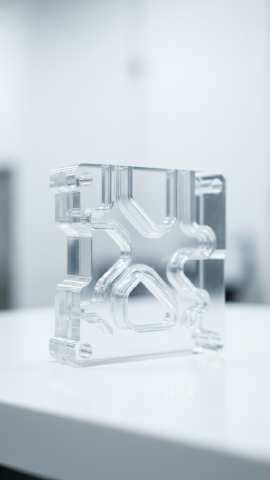

Engineering Plastic Parts
Plastic Milling

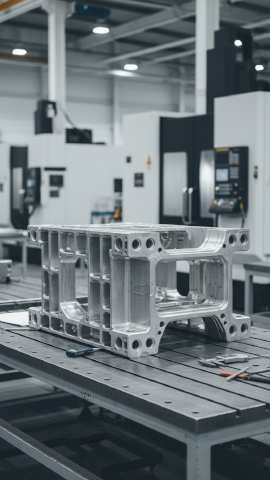

Large Format Structures
Large Format Milling

Materials Available

Machining Materials: From Soft Plastics to Hard Alloys
Our milling cutters are optimized for a vast library of stock materials.
Material Class Common Grades Milled Milling Characteristics
Aluminum 6061, 7075, 5052, 6063 Excellent chip control; high-speed machining possible; mirror finishes.
Stainless Steel 304, 316L, 17-4PH, 303 Requires rigid setup and flood coolant; we minimize work hardening.
Titanium Grade 2, Grade 5 (Ti64) Low thermal conductivity requires specialized tool paths to prevent heat buildup.
Plastics ABS, PEEK, POM, Nylon We use sharp tools to prevent melting; stress-relieving cycles used for PEEK.
Yellow Metals Copper C11000, Brass Copper requires sharp tools to prevent burrs; Brass allows for extremely fast feeds.

Comparison

3-Axis vs. 5-Axis: Which do you need?
Choosing the right machine can save you money and improve part quality.
Feature 3-Axis Milling 5-Axis Milling
Movement X, Y, Z (Linear) X, Y, Z + A, B (Rotary & Tilt)
Best For Flat parts, simple housings, holes on one face. Complex curves, undercuts, multi-sided parts.
Setup Requires manual flipping for multiple sides. Single Setup (Done in one go).
Accuracy Good, but re-fixturing introduces stack-up errors. Superior, as the part never leaves the machine.
Cost Lower machine hourly rate. Higher rate, but saves time on complex parts.
Tool Length Needs longer tools for deep pockets (chatter risk). Can tilt tool to use shorter, stiffer cutters.

Why Choose Us

The JUCHENG Milling Advantage
  • Smart CAM Programming: Our engineers don't just let the machine run. We optimize tool paths to minimize "air cutting" time and maximize surface finish quality, passing the cost savings to you.
  • Fixture Design: For odd-shaped parts that are hard to hold, we design and machine custom vacuum fixtures or soft jaws in-house, ensuring the part stays rigid under cutting forces.
  • Tooling Inventory: We maintain a massive inventory of metric and imperial cutters, drills, and reamers, so we don't have to wait for tooling to start your job.
  • In-Process Inspection: We utilize Renishaw probes for on-machine verification, checking critical dimensions before the part even is unclamped.

Advantages

Why CNC Milling is the Standard for Precision
  • Material Integrity: Unlike 3D printing which sinters powder, milling cuts from a solid block. The final part has 100% of the structural integrity of the raw material.
  • Surface Excellence: Milling produces smooth, precise surfaces that are seal-ready (e.g., for O-rings) without extensive post-processing.
  • Tightest Tolerances: For bearing fits (H7/g6) or press fits, CNC milling is often the only method precise enough.
  • Scalability: The same program that cuts your prototype can be used to run 1,000 production parts with identical consistency.

Industries Served

Industries Powered by Our Milling Centers
  • Aerospace: Turbines, impellers, structural bulkheads, landing gear fittings (High-stress 5-axis parts).
  • Medical: Surgical instruments, bone plates, PEEK implants, MRI device components.
  • Automotive: Custom engine blocks, transmission housings, suspension arms, rapid prototyping of die-cast parts.
  • Electronics: Heat sinks with high aspect ratio fins, waterproof enclosures, camera housings.
  • Oil & Gas: Valve bodies, downhole sensors, high-pressure manifolds (Inconel/Stainless).
