Aluminum Alloy 2024-T3 CNC Machining Material
Aluminum 2024-T3 is widely known as the "Aircraft Alloy." It is a high-strength aluminum-copper alloy that has been the backbone of the aerospace industry for decades. While slightly lower in ultimate strength than 7075, 2024-T3 offers superior fatigue resistance and fracture toughness, making it the preferred choice for structural components subject to tension and cyclic loads. At JUCHENG, we have extensive experience processing this aerospace-grade material. We utilize precision CNC machining strategies to manage the internal stresses typical of the T3 temper, delivering high-performance parts for aviation, military, and precision engineering applications.
Aluminum Alloy 2024-T3 Material

JUCHENG's 2024-T3 Machining Capabilities

Machining aerospace alloys requires strict process control to ensure part integrity. We offer:
  • Stress-Free Machining: The "T3" temper involves cold working, which induces internal stress. We employ specialized clamping and material removal strategies (such as equalizing cuts) to prevent parts from warping during machining.
  • Surface Protection: Since 2024 has poor corrosion resistance, we provide immediate post-machining treatments. Our in-house Chromate Conversion (Alodine) and Anodizing lines ensure your parts meet MIL-spec protection standards.
  • High-Precision Turning: 2024 machines beautifully with excellent chip breaking. We use this to our advantage on our CNC lathes to produce complex fittings and shafts with tight tolerances (+/- 0.005mm).
  • Material Traceability: For aerospace projects, we provide full material certifications (Mill Test Reports) confirming the chemical composition and mechanical properties.

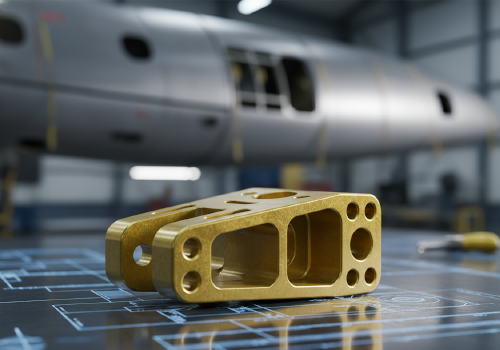

Aluminum 2024-T3 aerospace fitting

Advantages of CNC Machining 2024-T3

Advantage Detailed Description Key Benefit
Superior Fatigue Resistance Resists failure under repeated cyclic loading better than 6061 or 7075. Critical for aircraft wing structures and tension members that vibrate or flex during flight.
High Strength-to-Weight Offers excellent yield strength (approx. 324 MPa), far exceeding standard 6000-series alloys. Allows for lightweight designs without sacrificing structural integrity.
Excellent Machinability Produces crisp, small chips and allows for fine finishes. It is rated highly for screw machine parts. Enables efficient production of complex, high-precision components.
High Fracture Toughness Resists the propagation of cracks better than harder alloys like 7075-T6. Improves safety factors in critical structural applications.

Technical Parameters & Material Standards

We process 2024 in its most common aerospace tempers:

Grade Category Specification Characteristics & Ideal Uses
Aluminum 2024-T3 AMS 4037 / QQ-A-250/4 Solution heat treated, cold worked, and naturally aged. High strength and excellent fatigue resistance. The most common form for sheet and plate.
Uses: Fuselage skins, wing tension members, shear webs, structural bulkheads.
Aluminum 2024-T351 Stress-Relieved Similar to T3 but stress-relieved by stretching. Offers superior dimensional stability after heavy machining operations.
Uses: Precision machined fittings, manifolds, heavy structural blocks.
Aluminum 2024-T4 Naturally Aged Solution heat treated and naturally aged (without cold work). Slightly lower yield strength but higher ductility than T3.
Uses: Parts requiring forming capabilities before final use.

CNC Machining Guidelines for 2024

  • Corrosion Susceptibility: The high copper content makes 2024 prone to corrosion. It must never be left bare in humid environments. We recommend Alodine (Chem Film) or Anodizing immediately after machining.
  • Welding: Not Weldable. 2024 should not be welded (TIG/MIG) as it causes cracking and destroys corrosion resistance. Parts are typically assembled via rivets or bolts.
  • Anodizing: 2024 can be anodized, but the copper content can turn the finish slightly yellowish or dark gray (for hardcoat). It is less cosmetic than 6061 but highly functional.
  • Tooling: Use sharp carbide tools to ensure a clean surface finish and minimize heat buildup, which can affect the temper.

Application Scenarios

  • Commercial & Military Aircraft: Wing tension members, fuselage frames, shear webs, ribs.
  • Precision Mechanics: Gears, shafts, couplings, and fuse parts.
  • Computer Hardware: High-strength mounting brackets, internal chassis components.
  • Medical: Orthopedic braces and structural equipment parts requiring high stiffness.
  • Automotive: Racing suspension components where fatigue life is a concern.

Physical Properties Table

Comparison: 2024-T3 vs 7075-T6 (The two giants of aerospace):
Property Aluminum 2024-T3 Aluminum 7075-T6 Unit
Density 2.78 2.81 g/cm³
Tensile Strength 483 572 MPa
Yield Strength 345 503 MPa
Fatigue Strength 140 160 (Brittle) MPa
Fracture Toughness High Moderate -
Corrosion Resistance Poor Average -
Machinability Excellent Fair -
