Aluminum Alloy 6061-T6 CNC Machining Material
Aluminum Alloy 6061-T6 is the definitive "workhorse" of the machining industry. It is a precipitation-hardened aluminum alloy containing Magnesium and Silicon as its major alloying elements. The "-T6" temper indicates it has been solution heat-treated and artificially aged to achieve maximum precipitation hardening. At JUCHENG, 6061-T6 accounts for the majority of our aluminum production due to its exceptional versatility. It offers the perfect balance of mechanical strength, corrosion resistance, and machinability, making it the default choice for everything from semiconductor equipment components to custom automotive brackets.
Aluminum Alloy 6061-T6

JUCHENG's 6061-T6 Machining Capabilities

We optimize our CNC processes specifically for this versatile alloy to deliver superior results:
  • High-Speed Milling: We utilize high-RPM spindles (up to 24,000 RPM) to machine 6061-T6 efficiently, achieving mirror-like surface finishes directly off the machine.
  • Stress Management: 6061-T6 can contain internal stresses. We employ specialized roughing and finishing strategies (sometimes with intermediate stress relief) to prevent part warping, especially on thin-walled components.
  • Premium Anodizing: Our finishing lines are calibrated for 6061. We produce consistent Type II (Decorative) and Type III (Hard) anodized coatings in Clear, Black, Blue, Red, and Gold.
  • Material Verification: We verify all incoming stock using X-Ray Fluorescence (XRF) to ensure it meets ASTM B221 standards.

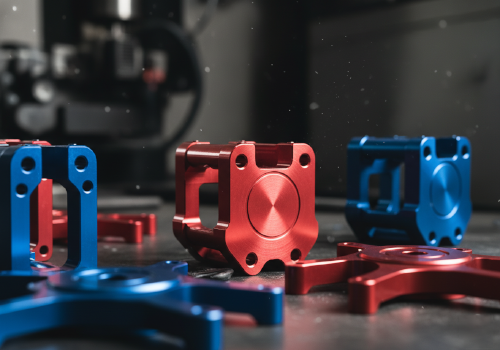

Aluminum 6061-T6 parts

Advantages of CNC Machining 6061-T6


Advantage Detailed Description Key Benefit
Excellent Machinability It chips well and does not stick to tools as much as softer alloys (like 3003). Allows for fast production cycles and complex geometries with fine details.
Superior Anodizing Quality The chemical composition is ideal for anodizing. Produces a uniform, vibrant, and durable protective layer for cosmetic parts.
Good Weldability Can be welded using TIG or MIG methods (unlike 7075). Suitable for complex assemblies and frames requiring welded joints.
Brasion Resistance Offers medium-to-high strength (Yield ~276 MPa). Strong enough for most structural applications without the high cost of 7075.
Corrosion Resistance Good resistance to atmospheric corrosion and seawater. Reliable for outdoor enclosures and marine hardware.

Technical Parameters & Material Standards

We process 6061 in various forms and equivalent international standards:

Standard / Form Specification Characteristics
ASTM B209 / B221 6061-T6 The standard US specification for aluminum and aluminum-alloy sheet and plate. Ensures consistent mechanical properties.
EN Standard EN AW-6061 / AlMg1SiCu The European equivalent. Chemically identical for most machining purposes.
Temper T6 Solution Heat Treated & Artificially Aged Provides the standard high strength. Stable dimensions.
Temper T651 Stress Relieved by Stretching A variation of T6 often used for thick plates. It has reduced internal stress, making it better for heavy machining (less warping).

CNC Machining Guidelines for 6061-T6

  • Coolant: Flood coolant is recommended to flush chips and maintain thermal stability, although 6061 machines relatively cool compared to steel.
  • Tooling: Uncoated carbide tools or tools with coatings specific for aluminum (like ZrN) prevent material build-up on the cutting edge (BUE).
  • Surface Finish: Standard machined finish is Ra 1.6 - 3.2 µm. With fine finishing passes, Ra 0.4 - 0.8 µm is achievable.
  • Anodizing Compensation: If parts are to be hard anodized, the coating adds thickness (approx. 25-50 microns). Machining tolerances must account for this growth.

Application Scenarios

  • Automotive: ABS brake valves, suspension components, transmission housings.
  • Consumer Electronics: Laptop unibodies, smartphone chassis, camera lens mounts.
  • Industrial: Hydraulic manifolds, base plates, jigs and fixtures, robotic arms.
  • Aerospace: Aircraft fittings, camera mounts, couplings (where 7075 strength is not required).
  • Marine: Sailboat fittings, masts, and hardware exposed to salt spray.

Physical Properties Table

Typical properties for 6061-T6:
Property Value Unit
Density 2.70 g/cm³
Tensile Strength (Ultimate) 310 MPa
Yield Strength 276 MPa
Hardness (Brinell) 95 HB
Elongation at Break 12 - 17 %
Thermal Conductivity 167 W/m-K
Fatigue Strength 96 MPa
