Titanium Grade 5 (Ti-6Al-4V) CNC Machining: The Ultimate Aerospace & Medical Alloy
When engineering designs demand the highest strength-to-weight ratio available in commercial metals, Titanium Grade 5, also known as Ti-6Al-4V, is the undisputed material of choice. As an alpha-beta titanium alloy, it accounts for over half of global titanium usage. It offers the strength of high-grade steel but is nearly 50% lighter, coupled with outstanding corrosion resistance and complete biocompatibility. At JUCHENG, we have mastered the complex machining dynamics of this formidable alloy. Utilizing our advanced 5-axis CNC machining centers and rigorous thermal management strategies, we transform solid titanium billets into flight-critical aerospace structures, high-performance racing components, and life-saving medical implants.

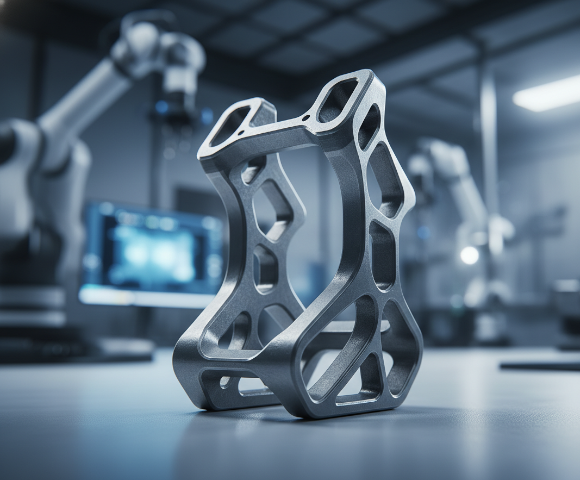

Titanium Grade 5

JUCHENG's Titanium Ti64 Fabrication Capabilities

Titanium’s notoriously low thermal conductivity and tendency to work-harden make it incredibly challenging to machine. We ensure precision through specialized capabilities:
  • Rigid 5-Axis Machining: To produce the complex, organic shapes often required for aerospace and medical parts, we utilize heavy-duty 5-axis milling centers that eliminate vibration and chatter, ensuring micron-level positional accuracy.
  • Advanced Thermal Management: Because Ti-6Al-4V transfers cutting heat into the tool rather than the chip, we utilize high-pressure, through-spindle coolant systems to rapidly dissipate heat, preventing tool failure and surface metallurgical damage.
  • Specialized Tooling: We employ premium micro-grain carbide and polycrystalline diamond (PCD) tools with specific geometries designed to shear titanium cleanly, avoiding the "galling" and built-up edge (BUE) effects common with this alloy.
  • Surface Integrity Verification: We carefully control cutting speeds and feeds to prevent the formation of an alpha-case (a brittle, oxygen-enriched surface layer), ensuring the fatigue life of your critical components is never compromised.
Titanium Grade 5

Advantages of CNC Machining Titanium Grade 5

Advantage Detailed Description Key Benefit
Highest Strength-to-Weight Ratio Yields strength comparable to hardened steel (~880 MPa) while weighing 45% less. Critical for aerospace weight reduction, lowering fuel consumption and increasing payload.
Exceptional Biocompatibility Completely non-toxic, hypoallergenic, and capable of osseointegration (bonding directly with human bone). The absolute standard for orthopedic implants, bone screws, and dental fixtures.
Superior Corrosion Resistance Forms a stable, highly adherent, and protective oxide film instantly upon exposure to oxygen. Impervious to seawater, chlorides, and most industrial acids; ideal for marine hardware.
High Heat Resistance Retains its mechanical properties at elevated temperatures up to 400°C (750°F). Excellent for jet engine compressor blades and motorsport exhaust components.
Heat Treatability Can be solution treated and aged (STA) to further increase its strength. Allows engineers to tailor the mechanical properties for specific high-stress applications.

Technical Parameters & Material Conditions

We machine Ti-6Al-4V to meet stringent industry-specific certifications:
Grade Category Specification Characteristics & Ideal Uses
Titanium Grade 5 Ti-6Al-4V (Standard) Characteristics: The workhorse alloy. Contains 6% Aluminum and 4% Vanadium. Excellent balance of strength, toughness, and ductility.
Uses: Aircraft turbines, structural airframe components, high-performance engine valves, marine fasteners.
Titanium Grade 23 Ti-6Al-4V ELI Characteristics: Extra Low Interstitial (ELI) variant of Grade 5. Contains lower levels of oxygen, carbon, and iron. Offers improved ductility, fracture toughness, and superior biocompatibility.
Uses: Surgical implants, orthopedic pins, cryogenic aerospace vessels, medical instrumentation.

CNC Machining Guidelines for Ti-6Al-4V

  • Low Speeds, High Feeds: We program our CNC machines with lower surface speeds (RPM) but maintain a heavy, constant feed rate. This ensures the tool stays under the work-hardened layer and removes material efficiently.
  • Never Dwell: Stopping or dwelling the cutting tool against a titanium surface will cause instant friction and work-hardening, destroying the tool on the next pass. Continuous tool engagement is mandatory.
  • Galling Prevention: Titanium has a strong chemical reactivity with cutting tools at high temperatures (galling). Copious amounts of high-lubricity coolant are critical to prevent the metal from welding to the cutter.
  • Thin-Wall Machining: Titanium's relatively low modulus of elasticity means it can spring back or deflect during machining. We use specialized workholding and balanced tool paths to machine extremely thin-walled aerospace features accurately.

Application Scenarios

  • Aerospace & Defense: Jet engine compressor discs, helicopter rotor hubs, wing spars, missile structural components, and high-strength fasteners.
  • Medical & Dental: Hip and knee joint replacements, spinal fusion cages, bone trauma plates, pacemakers, and surgical tools.
  • Motorsports: Connecting rods, valve retainers, suspension wishbones, and lightweight structural brackets for F1 and rally cars.
  • Marine & Offshore: Subsea ball valves, propeller shafts, ROV (Remotely Operated Vehicle) housings, and desalination equipment.

Physical Properties Table

Typical mechanical properties for Annealed Ti-6Al-4V:
Property Hastelloy C276 (UNS N10276) Titanium Grade 2 (CP) Unit
Density 4.43 4.51 g/cm³
Tensile Strength (Ultimate) 950 345 MPa
Yield Strength 880 275 MPa
Elongation at Break 14 20 %
Hardness (Rockwell C) 36 80 (HRB) HRC
Thermal Conductivity 6.7 16.4 W/m-K
Biocompatibility Excellent (Grade 23 ELI) Excellent -
