Monel K500 CNC Machining Material: High-Strength Marine Alloy
When harsh marine environments and highly corrosive chemical processes threaten standard metals, Monel K500 (a precipitation-hardenable Nickel-Copper alloy) provides an impenetrable defense. By adding aluminum and titanium to the traditional Monel 400 base, K500 achieves significantly higher tensile strength and hardness while retaining exceptional corrosion resistance. At JUCHENG, we specialize in the precision CNC machining of this tough superalloy. From deep-sea pump shafts to non-sparking safety tools and sour-gas wellhead components, we leverage our advanced turning and milling centers to deliver Monel K500 parts that ensure absolute reliability in the most unforgiving industrial conditions.

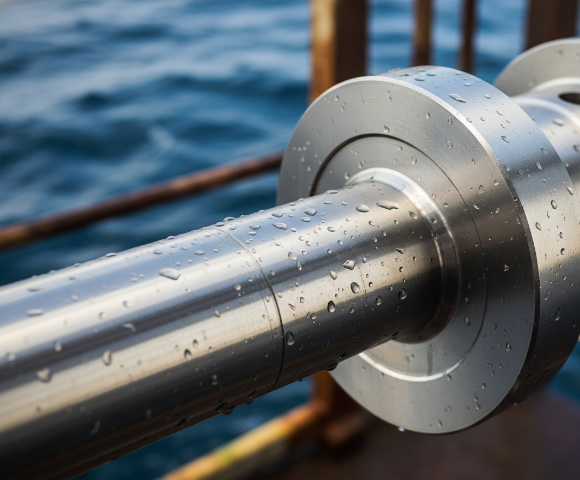

Monel K500

JUCHENG's Monel K500 Machining Capabilities

Monel K500 is notoriously tough and prone to work-hardening, requiring highly controlled machining environments. We ensure your project’s success through:
  • Precision Shaft Turning: Monel K500 is extensively used for long marine and chemical pump shafts. We utilize heavy-duty CNC lathes with steady rests to prevent deflection, maintaining strict concentricity and runout tolerances over extended lengths.
  • Age-Hardening Management: We typically machine Monel K500 in its annealed (softer) condition for complex geometries, then partner with certified heat-treatment facilities to perform the precipitation age-hardening process to achieve maximum mechanical strength.
  • Tooling Optimization: To combat the alloy's high shear strength and work-hardening nature, we employ positive-rake carbide tooling and continuous-feed programming, preventing the cutter from rubbing and hardening the workpiece surface.
  • Surface Finish Excellence: Despite its toughness, we can achieve remarkably smooth surface finishes (Ra 0.4 - 0.8 µm) required for critical sealing faces in high-pressure valves.
Monel K500

Advantages of CNC Machining Monel K500

Advantage Detailed Description Key Benefit
Ultimate Corrosion Resistance Impervious to fast-flowing seawater, marine atmospheres, and a wide variety of industrial acids and alkalis. The premier choice for marine hardware, offshore oil rigs, and chemical processing plants.
High Strength & Hardness Precipitation hardening doubles its tensile strength and triples its yield strength compared to Monel 400. Can withstand massive mechanical loads and torque in deep-well pump shafts.
Non-Magnetic Properties Remains virtually non-magnetic even at extremely low temperatures (down to -100°C). Essential for components in navigational equipment, MRI scanners, and mine-sweeping sensors.
Non-Sparking Does not produce sparks when struck against other metals. A mandatory safety requirement for tools and hardware used in explosive or highly flammable environments.
Sour Gas Resistance Highly resistant to sulfide stress-corrosion cracking. Ideal for the oil and gas industry, specifically in sour service (H2S) well environments.

Technical Parameters & Material Conditions

We process Monel K500 based on the specific mechanical demands of your design:
Grade Category Ideal Applications Detailed Characteristics
Monel K500 (Annealed / Hot Finished) General machining of complex shapes before age-hardening. Parts requiring subsequent heavy forming. The material is in a softer state, making it far more machinable. Heavy milling and turning should be done in this condition. It still offers excellent corrosion resistance but lower yield strength.
Monel K500 (Age-Hardened) Finished pump shafts, high-pressure valve trim, doctor blades, and heavy-duty fasteners. Subjected to a controlled thermal cycle, the aluminum and titanium precipitate throughout the matrix. This dramatically increases hardness (up to 35 HRC) and tensile strength. Machining in this state requires very rigid setups.

CNC Machining Guidelines for Monel K500

  • Work-Hardening Avoidance: Monel K500 will work-harden rapidly if the cutting tool is allowed to dwell or rub. We program our CNC machines to maintain a constant, steady feed rate, ensuring the tool is always cutting beneath the work-hardened layer.
  • Rigidity is Crucial: The material exerts high forces on cutting tools. We use the shortest possible tool overhangs and extremely rigid workholding fixtures to eliminate chatter.
  • Coolant Application: Generous amounts of high-quality, sulfur-free water-soluble coolant are required to dissipate heat and flush chips away, preventing the chips from welding to the cutting edge.
  • Tapping: Tapping Monel K500 is challenging due to its toughness. We often utilize thread milling instead of tapping for internal threads to ensure thread quality and prevent tool breakage inside the part.

Application Scenarios

  • Marine & Shipbuilding: Propeller shafts, pump shafts, seawater valves, fastening systems, and subsea robotics.
  • Oil & Gas Extraction: Drill collars, downhole measurement-while-drilling (MWD) housings, valve trims, and components exposed to sour gas.
  • Chemical Processing: Pump impellers, mixing shafts, doctor blades, and pressure vessel fittings.
  • Medical & Scientific: Non-magnetic housings for sensitive electronic or magnetic resonance imaging (MRI) equipment.
  • Safety Equipment: Non-sparking safety tools (wrenches, hammers) for explosive environments.

Physical Properties Table

Typical mechanical properties (Age-Hardened condition):
Property Monel K500 (Age-Hardened) Unit
Density 8.44 g/cm³
Tensile Strength (Ultimate) 1100 - 1300 MPa
Yield Strength 790 - 1000 MPa
Hardness 28 - 35 HRC
Magnetic Permeability < 1.002 (Virtually Non-Magnetic) -
Corrosion Resistance Excellent (Seawater / Acids) -
Machinability Difficult -
