Custom Nylon 6/6 (PA66) CNC Machining: The Standard for Metal Replacement
When engineers look to replace heavy, friction-prone metal components with lightweight, durable plastics, Nylon 6/6 (Polyamide 66 or PA66) is almost always the first choice. Renowned as the ultimate "workhorse" of engineering thermoplastics, Nylon 6/6 offers an exceptional combination of high tensile strength, outstanding abrasion resistance, and natural self-lubricating properties. At JUCHENG, we specialize in the precision CNC machining of this highly versatile polymer. Whether your design calls for high-load gears that run silently without external grease, or durable wear pads that must resist harsh automotive chemicals, our facility is equipped to transform raw PA66 stock into flawless, high-performance mechanical parts.
Nylon 6/6

JUCHENG's Nylon 6/6 Fabrication Capabilities

Machining Nylon 6/6 efficiently while maintaining tight dimensional tolerances requires specific expertise to manage its thermal and hygroscopic (moisture-absorbing) nature. We deliver through:
  • Dimensional Stability Control: Nylon 6/6 naturally absorbs moisture from the environment, which can cause slight dimensional swelling. Our engineers account for these environmental factors during the CAM programming and tolerancing phases, ensuring your parts fit perfectly upon assembly.
  • Advanced Deburring: Nylon is notoriously prone to leaving stubborn, stringy burrs during the milling and turning process. We employ specialized cryogenic deburring and meticulous manual inspection under magnification to ensure gear teeth and threaded holes are immaculately clean.
  • Heat Management: Thermoplastics can melt and smear if machined improperly. We utilize ultra-sharp, polished carbide tools with high positive rake angles, combined with high feed rates and directed coolant, to shear the Nylon cleanly without inducing thermal distortion.
  • Glass-Filled Processing: We are highly experienced in machining glass-reinforced PA66 grades, utilizing diamond-coated tooling to combat the severe abrasive wear caused by glass fibers while maintaining a superior surface finish.

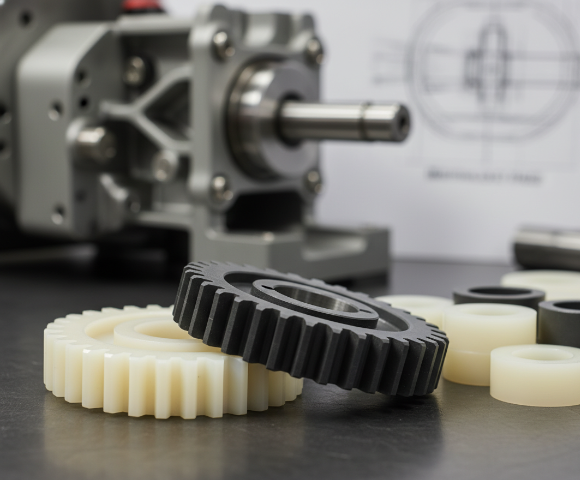

Nylon 66

Advantages of CNC Machining Nylon 6/6

Advantage Detailed Description Key Benefit
Exceptional Wear Resistance Naturally self-lubricating with a very low coefficient of friction against metals. The industry standard for gears, bearings, and sliding mechanisms that operate without maintenance.
High Mechanical Strength One of the strongest and stiffest unfilled engineering plastics available. Capable of bearing heavy mechanical loads, making it a prime candidate for metal replacement.
Chemical Resistance Highly resistant to hydrocarbons, motor oils, fuels, greases, and cleaning solvents. Performs reliably in under-the-hood automotive applications and industrial fluid environments.
Noise & Vibration Dampening Absorbs shock and dampens sound transmission much better than metal counterparts. Creates quieter running machinery and gearboxes.
Lightweight Significantly lighter than aluminum or brass (Density ~1.14 g/cm³). Reduces inertia in moving parts and overall system weight, improving energy efficiency.

Technical Parameters & Material Conditions

We stock and machine a comprehensive range of PA66 formulations to suit specific loads and environments:
Grade Category Ideal Applications Detailed Characteristics
Unfilled Nylon 6/6 (Natural/Black) Standard gears, sprockets, rollers, insulators, consumer appliance mechanisms. The standard general-purpose grade. Offers the best balance of strength, ductility, and impact resistance. Easiest to machine. Often supplied in off-white (Natural) or Black.
Glass-Filled Nylon 6/6 (e.g., 30% GF) Structural housings, load-bearing brackets, automotive engine components, pump impellers. Reinforced with glass fibers. Drastically increases tensile strength, stiffness, and heat deflection temperature, while reducing moisture absorption and thermal expansion. Very abrasive to machine.
MoS2-Filled Nylon 6/6 Heavy-duty plain bearings, wear pads, sliding tracks, highly loaded gears. Impregnated with Molybdenum Disulfide (MoS2). Usually dark grey. Enhances the load-bearing capabilities and further lowers the friction coefficient while improving wear life.

CNC Machining Guidelines for Nylon 6/6

  • Tooling: High-speed steel (HSS) or uncoated carbide tools with sharp, polished flutes are mandatory. Dull tools will generate excessive friction, causing the nylon to melt, smear, and lose its mechanical properties at the surface.
  • Workholding: Nylon 6/6 is strong but can deform under heavy clamping pressure. We use custom-machined soft jaws and distribute clamping forces evenly to prevent crushing the workpiece during heavy roughing passes.
  • Coolant: While it can be machined dry, using a water-based coolant is highly recommended to flush away the continuous, stringy chips and keep the part dimensionally stable by removing heat.
  • Tolerances: Due to moisture absorption, extremely tight tolerances (e.g., < ±0.01mm) can be challenging to hold long-term in fluctuating humidity. We consult with clients to design appropriate functional clearances.

Application Scenarios

  • Mechanical & Power Transmission: Spur gears, helical gears, sprockets, pulleys, cams, and plain bearings.
  • Automotive Industry: Timing belts, chain guides, cooling fan blades, fluid reservoirs, and fuel system components.
  • Industrial Manufacturing: Wear strips, conveyor belt rollers, star wheels, and heavy-duty sliding guides.
  • Electrical & Electronics: Switch housings, coil bobbins, cable ties, and insulating terminal blocks (due to excellent dielectric strength).

Physical Properties Table

Comparison: Unfilled PA66 vs. Glass-Filled PA66:
Property Nylon 6/6 (Unfilled) Nylon 6/6 (30% Glass-Filled) Unit
Density 1.14 1.35 g/cm³
Tensile Strength 80 - 85 150 - 170 MPa
Flexural Modulus 2,800 - 3,000 8,500 - 9,500 MPa
Hardness (Rockwell) R115 - R120 R121 -
Heat Deflection Temp (1.8 MPa) 90 - 100 245 - 250 °C
Water Absorption (24h) 1.2 - 1.5 0.7 - 0.9 %
Coefficient of Friction Low (Self-Lubricating) Moderate -
