PEI (Polyetherimide) CNC Machining: The Premium Aerospace & Medical Plastic
When engineering specifications demand unparalleled heat resistance, inherent flame retardancy, and exceptional dielectric strength, PEI (Polyetherimide)—widely recognized in the industry under the trade name Ultem—is the ultimate thermoplastic solution. Characterized by its distinct translucent amber color, PEI is an advanced amorphous polymer that maintains its mechanical integrity in prolonged elevated temperatures and harsh chemical environments. At JUCHENG, we treat the machining of this high-value super-polymer with the utmost precision. Our specialized CNC milling and turning processes are optimized to handle the unique thermal dynamics of PEI, delivering flawless, stress-free components for critical aerospace interiors, reusable medical devices, and semiconductor equipment.
PEI (Polyetherimide)

JUCHENG's Advanced PEI Fabrication Capabilities

Machining premium amorphous polymers like PEI requires rigorous stress management and specialized tooling. We ensure top-tier quality through:
  • Stress-Relief Annealing: PEI is highly susceptible to stress-cracking if machined aggressively. We utilize precise annealing (heat treatment) cycles both before and after machining to relieve internal stresses, ensuring long-term dimensional stability.
  • Optical Polishing: Unfilled PEI is naturally translucent. Our finishing department employs specialized vapor and manual polishing techniques to restore the material's clear, amber aesthetics, which is highly desired in fluid observation components and sight glasses.
  • Precision Coolant Management: Certain synthetic coolants can cause environmental stress cracking in PEI. We strictly use approved, non-aromatic, water-soluble coolants to flush chips and maintain part integrity without chemically degrading the plastic.
  • Micro-Machining: The stiffness and stability of PEI allow us to machine micro-features, thin walls, and extremely precise electrical connector pin-holes with tolerances as tight as ±0.01mm.

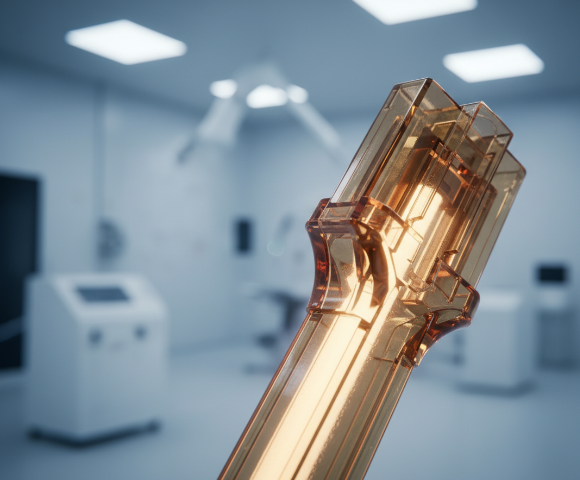

PEI Polyetherimide

Why Specify PEI for Extreme Environments?

Advantage Detailed Description Key Benefit
Inherent Flame Retardancy Naturally achieves UL94 V-0 ratings and passes stringent aerospace FST (Flame, Smoke, Toxicity) standards. The mandatory choice for commercial aircraft interiors, air ducts, and cabin components.
Autoclavable (Sterilizable) Withstands thousands of cycles in steam autoclaves, gamma radiation, and ethylene oxide (EtO) without degrading. The gold standard for reusable medical and dental devices, surgical probes, and sterilization trays.
Extreme Heat Resistance Offers a very high Glass Transition Temperature (Tg) of 217°C and continuous service up to 170°C. Replaces metal in high-temperature under-hood automotive applications and burn-in test sockets.
High Dielectric Strength Outstanding electrical insulation properties that remain stable over a wide range of temperatures and frequencies. Perfect for high-voltage connectors, microwave components, and semiconductor insulators.
High Strength & Rigidity One of the strongest amorphous thermoplastics available, providing a robust, metallic feel. Supports heavy mechanical loads in structural brackets and housings.

PEI Material Grades We Process

We stock and machine various formulations of Polyetherimide to meet specific industry certifications:
Grade Category Ideal Applications Detailed Characteristics
Unfilled PEI (Natural Amber) Medical instrument handles, electrical insulators, sight glasses, aircraft interior panels, semiconductor wafer wands. The standard, unreinforced grade. Features a characteristic translucent amber color. Offers the highest ductility and best electrical insulation properties within the PEI family.
Glass-Filled PEI (10% - 30% GF) High-load structural brackets, burn-in test sockets, automotive transmission components, rigid aerospace housings. Reinforced with glass fibers, making the material opaque (typically tan or black). Drastically increases tensile strength, stiffness, and dimensional stability while reducing the coefficient of thermal expansion.
Medical Grade PEI Surgical drill guides, implant trial sizers, dental tools, and reusable sterilization containers. Specially formulated and certified to meet ISO 10993 and USP Class VI biocompatibility standards. Completely non-toxic and highly resistant to hospital-grade disinfectants.

Best Practices for Milling & Turning PEI

  • Tooling Selection: We exclusively use razor-sharp, polished solid carbide or polycrystalline diamond (PCD) tools. Dull tools create excessive friction, leading to localized melting, poor surface finish, and induced stress.
  • Feed and Speed Optimization: To prevent heat buildup, we employ high cutting speeds combined with moderate feed rates. Chip evacuation must be immediate to avoid re-cutting.
  • Clamping Considerations: Despite its strength, unfilled PEI can be brittle under point loads. We utilize custom-profiled soft jaws to distribute clamping pressure evenly, preventing micro-fractures during heavy roughing passes.
  • Thread Milling: For internal threads, we prefer thread milling over tapping. It exerts less radial stress on the material, producing stronger, cleaner threads without the risk of cracking the part.

Application Scenarios

  • Aerospace & Aviation: Oxygen system components, air distribution valves, cabin lighting reflectors, and structural honeycomb cores.
  • Healthcare & Life Sciences: Endoscopic device housings, dental isolation retractors, pharmaceutical fluid manifolds.
  • Electronics & Telecom: Burn-in and test (BiTS) sockets, heavy-duty circuit board standoffs, fiber optic connectors.
  • Automotive: High-temperature sensor housings, thermostat components, electric vehicle (EV) battery insulators.

Physical Properties Table

Comparison: Unfilled PEI vs. 30% Glass-Filled PEI:
Property Unfilled PEI (Amber) 30% Glass-Filled PEI Unit
Density 1.27 1.51 g/cm³
Tensile Strength 105 165 MPa
Flexural Modulus 3,300 9,000 MPa
Glass Transition Temp (Tg) 217 217 °C
Heat Deflection (1.8 MPa) 200 210 °C
Continuous Service Temp 170 170 %°C
Flammability Rating V-0 (FST Compliant) V-0 UL94
