Stainless Steel 301 CNC Machining Material
Stainless Steel 301 is an austenitic alloy that offers a compelling alternative to 304 when higher strength is required. It is distinguished by its high work-hardening rate, meaning it gains significant strength and hardness as it is deformed or machined. This unique property makes it the standard material for parts requiring a "spring temper" or high tensile strength without heat treatment. At JUCHENG, we have mastered the techniques to machine this challenging alloy. We process 301 in various conditions—from annealed to full-hard—delivering robust components for the automotive, rail, and consumer electronics industries.
Stainless Steel 301

JUCHENG's 301 Machining Capabilities

Machining a material that hardens as you cut it requires specific expertise. JUCHENG delivers:
  • Hard State Machining: We are capable of CNC machining 301 that has already been cold-rolled to a "Half-Hard" or "Full-Hard" condition, ensuring the final part retains its spring properties.
  • Process Control: To combat rapid work hardening, we utilize rigid setups, constant feed rates, and specialized tool coatings (TiCN) to maintain dimensional accuracy.
  • Hybrid Manufacturing: For parts like custom clips or brackets, we combine CNC machining (for holes/profiles) with precision bending to leverage 301's ductility and strength.
  • Surface Finishing: We offer electropolishing and passivation to enhance the corrosion resistance of 301, making it suitable for exposed applications.

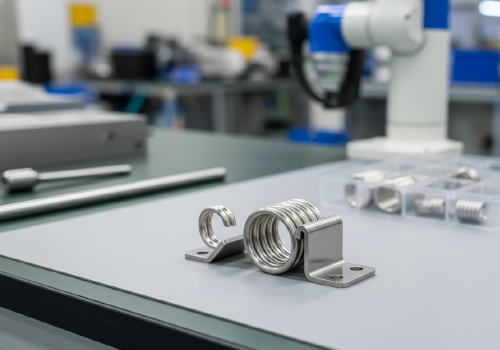

Stainless Steel 301 spring clip

Advantages of CNC Machining 301

Advantage Detailed Description Key Benefit
High Work-Hardening Rate Gains strength rapidly during cold working or machining. Allows for the production of high-strength, thin-walled parts.
Spring Properties Retains elasticity and resists permanent deformation under load. The ideal material for springs, clips, fasteners, and flexible contacts.
Good Ductility In the annealed state, it is highly formable. Suitable for complex drawn or formed parts that are subsequently machined.
Wear Resistance Harder surface than 304 due to cold working. Better resistance to scratching and abrasion in moving assemblies.
Cost-Effective Strength Achieves high strength without the need for post-process heat treatment (unlike 17-4 PH). Economical for high-volume structural components.

Technical Parameters & Material Standards

We process 301 in different tempers to match the required strength:
Grade Category Condition  Characteristics & Ideal Uses
301 Annealed Soft State Characteristics: Non-magnetic, soft, and ductile. Maximum formability. Can be hardened by subsequent machining or forming.
Uses: Deep drawn parts, complex stamped and machined components.
301 1/4 Hard to Full Hard Cold Worked Characteristics: Material is cold-rolled to specific tensile strengths. Magnetic. High yield strength and spring-back.
Uses: Springs, structural clips, automotive trim, wiper blade supports, diaphragms.

CNC Machining Guidelines 301

  • Work Hardening: This is the biggest challenge. The tool must cut and never rub. We use aggressive feed rates to get under the work-hardened layer from the previous pass.
  • Tooling: Carbide tools are mandatory. High-speed steel tools will dull instantly.
  • Heat Generation: 301 generates significant heat. High-pressure coolant is critical to prevent thermal expansion and tool failure.
  • Distortion: Machining heavily cold-worked 301 (Full Hard) can release internal stresses, causing warping. We use stress-relieving cycles or symmetrical machining to control flatness.

Application Scenarios

  • Automotive: Wheel covers, wiper blade holders, seat belt components, trim molding.
  • Rail & Transport: Structural car body parts, subway car panels (high strength-to-weight).
  • Industrial: Conveyor belts, springs, clamps, clips, fasteners.
  • Consumer Electronics: Battery contacts, flexible structural frames within devices.
  • Aircraft: Structural parts requiring higher strength than 304 but lower cost than titanium.

Physical Properties Table

Comparison: Annealed vs. Full Hard (Showing the massive strength gain):
Property SS 301 (Annealed) SS 301 (Full Hard) Unit
Density 7.90 7.90 g/cm³
Tensile Strength 515 1275 (Min) MPa
Yield Strength 205 965 (Min) MPa
Elongation 40 8 %
Magnetic No Yes -
Corrosion Resistance Good Good -
