Stainless Steel 303 CNC Machining Material
When your project demands intricate features and high-volume production from stainless steel, Stainless Steel 303 is often the most efficient choice. This austenitic stainless steel is modified with sulfur to improve its machinability, allowing for faster cutting speeds and shorter cycle times compared to 304 or 316. At JUCHENG, we leverage the excellent cutting performance of 303 to produce complex components like fasteners, shafts, and fittings with great surface finishes. While not as corrosion-resistant or weldable as 304 or 316, its machinability makes it a cost-effective solution for components used in moderate environments.
Stainless Steel 303

JUCHENG's 303 Machining Capabilities

We optimize our processes to harness the unique advantages of 303:
  • High-Speed Machining: Our CNC centers are configured for rapid material removal with 303. We use specialized tool geometries designed for sulfur-bearing alloys to manage chip formation.
  • Thread Milling Expertise: 303 machines into threads exceptionally well. We offer high-precision thread milling and tapping services for all common thread standards.
  • Surface Finish: Its free-machining properties allow for very smooth finishes directly off the machine, often reducing the need for extensive secondary polishing.
  • Cost-Effective Production: The faster cycle times translate to lower unit costs for high-volume orders, making it a very economical choice for production runs.

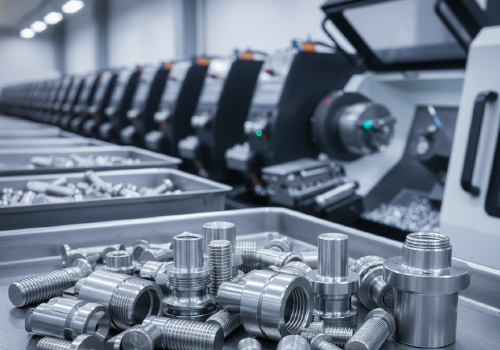

Stainless Steel 303 parts

Advantages of CNC Machining 303

Advantage Detailed Description Key Benefit
Superior Machinability Addition of sulfur creates short, brittle chips, making it easiest to machine among stainless steels. Fastest cycle times, lower tooling costs, and excellent surface finish directly from the machine.
High Production Volume Machines faster than 304 or 316. Significantly reduces manufacturing costs for large production runs.
Good Strength Offers strength similar to 304 in the annealed condition. Suitable for general mechanical parts and fasteners.
Non-Magnetic Remains non-magnetic in most conditions. Ideal for components where magnetic interference is a concern.

Technical Parameters & Material Standards

We machine 303 to meet common industry standards:
Grade Category Characteristics & Ideal Uses
Stainless Steel 303 Characteristics: Austenitic SS, modified with sulfur for enhanced machinability. Good corrosion resistance (but lower than 304/316). Not recommended for welding or severe corrosion.
Uses: Screw machine parts, shafts, gears, nuts, bolts, valve bodies, electrical switch components.

CNC Machining Guidelines for 303

  • Chip Management: Control is key. We use tools with specific rake angles and peck cycles to break the long chips into manageable pieces, preventing tool breakage and surface damage.
  • Work Hardening: While more machinable, 303 still work-hardens. We maintain positive tool engagement to prevent rubbing and subsequent hardening.
  • Corrosion: Do not use in marine environments or for welded assemblies, as the sulfur addition compromises corrosion resistance and weldability. For these applications, choose 316L or 304.
  • Passivation: Always recommended after machining to remove any residual machining oils and maximize the passive layer for optimal corrosion resistance.

Application Scenarios

  • Fasteners: Bolts, nuts, screws, shafts, studs requiring high machinability.
  • Electrical: Switch components, insulators, terminal pins, bushings.
  • Mechanical Assemblies: Gears, shafts, valve stems, fittings where weldability is not required.
  • Aerospace: Components requiring moderate corrosion resistance and high machinability.

Physical Properties Table

Comparison: 303 vs 304 (Machinability Focus)
Property SS 303 SS 304 Unit
Machinability Rating Excellent (70-80%) Good (40-50%) %
Corrosion Resistance Good (Lower than 304) Excellent -
Weldability Poor Excellent -
Tensile Strength 500 - 700 515 MPa
Hardness (Brinell) 170 - 210 130 - 201 HB
