Precision Structural & Functional Prototypes for Engineering Verification
Before moving to mass production, validating the mechanical performance of your design is non-negotiable. Structural and Functional Prototypes are built to undergo rigorous testing—checking for fit, assembly tolerances, load-bearing capacity, and environmental resistance. Unlike visual models, these prototypes must perform exactly like the final product.
At JUCHENG, we specialize in "Works-Like" prototypes. We utilize precision CNC Machining to cut real engineering plastics and metals, along with industrial SLS/MJF 3D Printing for complex nylon structures. Our engineering team ensures that every snap-fit clicks, every gear meshes, and every enclosure seals perfectly. We deliver robust prototypes that allow you to identify design flaws early, mitigate risks, and accelerate your time-to-market.
Structural and Functional Prototype

JUCHENG’s Engineering Prototyping Capabilities

We focus on dimensional accuracy and material authenticity to ensure valid test results:
  • Real Material Machining: We machine prototypes from the exact stock material specified for production (e.g., PEEK, Delrin, Aluminum 7075), ensuring the test data correlates 100% with the final part.
  • Tight Tolerance Assembly: We achieve tolerances as tight as +/- 0.01mm for CNC parts, ensuring precise fit-checks for multi-part assemblies and complex mechanisms.
  • Functional Features: We specialize in machining functional details like live hinges, snap-fits, fine threads, and O-ring grooves that require high precision.
  • Durability & Strength: Through SLS (Selective Laser Sintering) and MJF, we produce isotropic nylon parts that withstand functional snap-fit testing and drop testing without breaking.
  • Thread Integration: We install high-quality threaded inserts (Helicoils, PEM nuts) to ensure prototypes can be assembled and disassembled repeatedly during the testing phase.
complex functional drone prototype

Product Gallery Categories

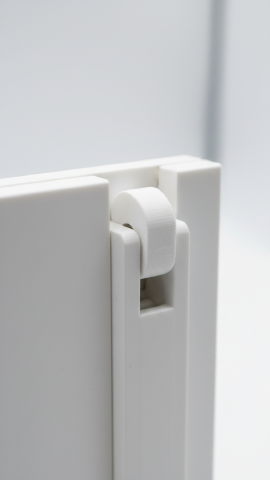

Snap-Fits & Clips Testing
Snap-Fits & Clips Testing
Load-Bearing Structural Parts
Load-Bearing Structural

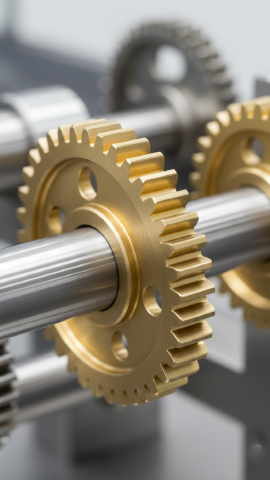

Moving Mechanisms & Gears
Moving Mechanisms

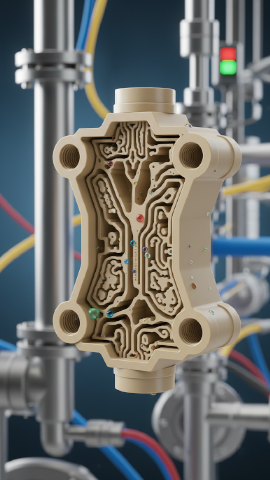

High-Temp & Chemical Resistance
High-Temp Chemical

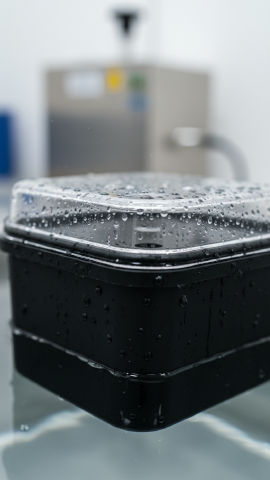

Waterproof & Sealing Enclosures
Waterproof Sealing

Materials Available

Engineering Materials for Functional Testing
For functional prototypes, material properties are critical. We select materials based on the specific mechanical or thermal tests required:
Material Category Specific Materials Functional Properties & Applications
Engineering Plastics (CNC) POM (Delrin), Nylon (PA6/66) Wear Resistance & Friction: Ideal for gears, sliding mechanisms, bushings, and snap-fits.
High-Performance Plastics (CNC) PEEK, PPS, PTFE (Teflon) Extreme Environments: For testing in high temperatures (>200°C), chemical exposure, or high-stress loads.
Structural Metals (CNC) Aluminum 6061/7075, Stainless Steel Load Bearing: For structural frames, chassis, and brackets requiring high strength-to-weight ratios.
3D Printing Powders Nylon 12 (SLS/MJF), Glass-Filled Nylon Complex Geometry: For air ducts, durable housings, and functional clips that cannot be machined easily.
Elastomers (Vacuum Casting) PU Rubber (Shore 40A-90A) Sealing & Gaskets: Simulating rubber seals, buttons, and overmolded grips for ergonomic testing.

Comparison

Comparison: CNC vs. SLS/MJF for Functional Prototypes
Selecting the right process depends on the specific function you need to test.
Feature CNC Machining SLS / MJF 3D Printing SLA 3D Printing
Material Authenticity High (Real Block Material) Medium (Powder Sintered) Low (Resin Simulants)
Strength & Durability Highest (Isotropic) High (Near Isotropic) Low (Brittle)
Accuracy High (+/- 0.01mm) Medium (+/- 0.2mm) High (+/- 0.1mm)
Snap-Fit Performance Excellent (POM/PP) Excellent (Nylon) Poor (Snaps easily)
Cost Higher Lower Medium
Best For Final material verification, high precision Complex shapes, ducting, tough housings Visual check only

Why Choose Us

Why Choose JUCHENG for Engineering Verification?
  • DFM Support: Our engineers review your CAD files not just for printability, but for functionality. We suggest modifications to improve wall thickness, draft angles, and tolerance stacks.
  • Material Certification: We provide material datasheets and CoC (Certificate of Conformity) to prove that the material we machined is the exact grade you specified.
  • Precision Metrology: We utilize in-house CMM (Coordinate Measuring Machines) and laser scanners to verify that critical dimensions on your prototype meet the design tolerances.
  • Fast Iteration: If a test fails, we can rapidly machine a modified version and ship it within days, keeping your development timeline on track.

Advantages

Key Advantages of Functional Prototyping
  • Risk Mitigation: Identify and fix design flaws (interferences, weak points) before cutting expensive steel molds.
  • Performance Verification: Physically test thermal management, airflow, water resistance, and structural integrity.
  • Assembly Validation: Ensure all internal components (PCBs, batteries, motors) fit perfectly within the enclosure.
  • Certification Testing: Produce production-grade units for early UL, CE, or FCC certification testing.

Industries Served

Industries & Applications
  • Automotive: Air intake manifolds, door handle mechanisms, suspension brackets, fluid reservoirs.
  • Robotics: Custom gears, robot arms, end-effectors, structural chassis.
  • Medical Devices: Functional surgical tools, MRI component housings, fluid management systems.
  • Industrial Equipment: Jigs and fixtures, heavy-duty valve bodies, wear-resistant machine parts.
