Beyond Fabrication: Comprehensive Sheet Metal Assembly Solutions
Cutting and bending are just the beginning of the manufacturing process. To deliver true value, a part often requires the installation of fasteners, the joining of multiple components, and the integration of hardware. Sheet Metal Assembly is the critical final stage that transforms loose metal pieces into a functional sub-assembly or finished enclosure.
At JUCHENG, we provide a complete turnkey solution. Instead of managing multiple vendors or performing tedious assembly tasks in-house, you receive parts that are ready for your final production line. From automated PEM® insertion to precision riveting and mechanical integration, our assembly department ensures that every nut, standoff, and hinge is installed with the same precision as our machining.
Sheet Metal Assembly Service

JUCHENG’s Assembly & Integration Capabilities

We configure our assembly floor to handle everything from simple hardware insertion to complex box builds:
  • Hardware Insertion (PEM): We utilize advanced hydraulic presses (e.g., Haeger) to install self-clinching nuts, studs, standoffs, and captive screws. We verify installation force to ensure push-out and torque-out performance meets specifications.
  • Riveting: For permanent non-welded joints, we offer Pop Riveting (blind rivets) and Solid Riveting (aerospace style), ideal for joining dissimilar materials like aluminum to steel.
  • Mechanical Assembly: We install third-party hardware such as hinges, latches, handles, rubber feet, and gaskets, delivering a complete enclosure.
  • Kitting & Packaging: We can sort and bag mating parts (screws, brackets) into kits, or package finish-painted parts in custom foam to prevent transit damage.
  • Bonding: We apply industrial structural adhesives (VHB tape, Epoxy) for applications where welding or mechanical fasteners are not suitable.

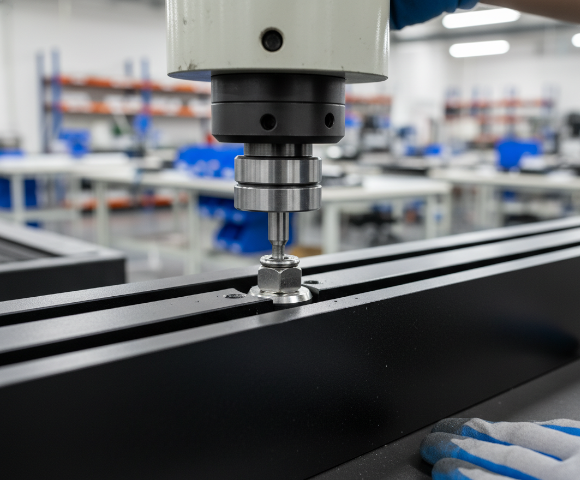

PEM fastener insertion machine

Product Gallery Categories

Fastener Insertion (PEM)

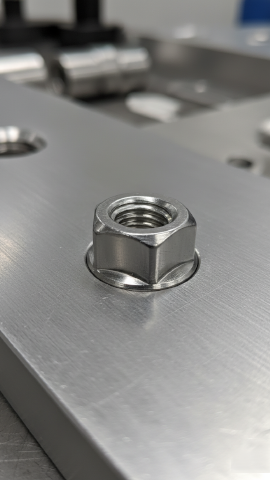

PEM Fasteners
Riveted Assemblies

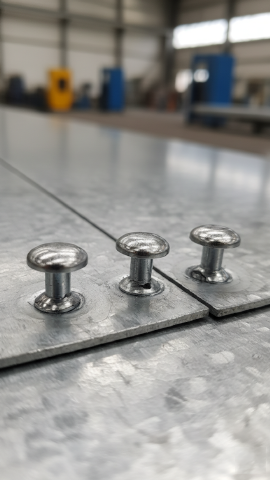

Riveted Joints
Hinge & Latch Installation

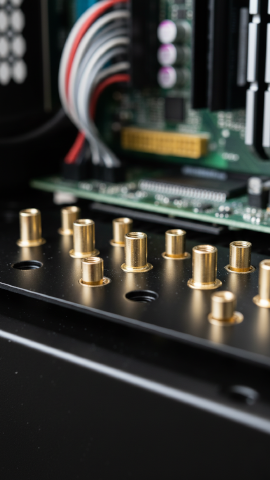

Chassis with Standoffs
Gasket & Seal Application

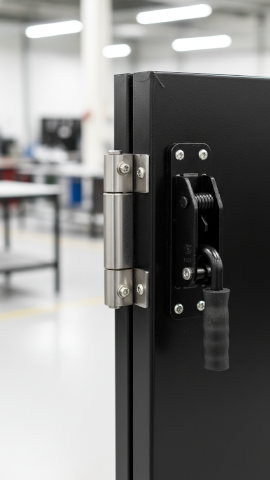

Hinges & Latches
Multi-Part Sub-Assemblies

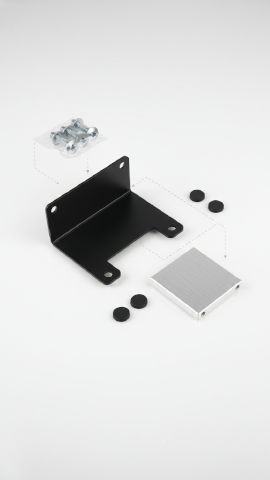

Sub-Assemblies

Materials Available

Hardware Integration Options
We stock and install a vast range of standard industrial hardware to suit your sheet metal material:
Component Type Material Options Function
Self-Clinching Nuts (PEM) Carbon Steel, Stainless (300/400 series), Aluminum Provides strong, reusable threads in thin sheet metal.
Standoffs / Spacers Stainless Steel, Brass, Aluminum Spaces PCBs or panels away from the chassis.
Studs / Pins Hardened Steel, Stainless Steel Creates a permanent male thread for mounting components.
Rivets Aluminum, Steel, Copper Permanently joins two sheets; vibration resistant.
Panel Fasteners Steel / Plastic caps Captive screws for tool-free access to enclosure doors.

Comparison

Comparison: Factory Assembly vs. In-House Assembly
Why let JUCHENG handle the assembly?
Feature JUCHENG Factory Assembly Customer In-House Assembly
Cost Lower (Integrated labor & bulk hardware) Higher (Extra labor & handling)
Consistency High (Automated machines & QC jigs) Variable (Manual installation)
Logistics Simple (Receive 1 SKU) Complex (Manage sheet metal + hardware SKUs)
Risk Zero (We scrap parts if insertion fails) High (Scrap parts if you cross-thread)
Equipment Specialized Insertion Presses Manual tools / Arbor presses

Why Choose Us

The JUCHENG Stamping Advantage
  • Torque Testing: We don't just press it in; we test it. We perform random torque-out and push-out tests to ensure fasteners won't spin or detach during your final assembly.
  • Surface Protection: Assembly is often done on painted or plated parts. Our assembly stations use rubber mats and fixtures to prevent scratches on your finished cosmetics.
  • Supply Chain Management: We source hardware directly from authorized distributors (like PennEngineering or equivalents), ensuring material authenticity and availability.
  • ESD Control: For sensitive electronic enclosures, our assembly area follows ESD (Electrostatic Discharge) safety protocols.

Advantages

Benefits of Value-Added Assembly
  • Reduced BOM Complexity: You order one part number instead of ten separate components.
  • Quality Assurance: Eliminates the risk of missing holes or threads, as every insertion point is verified.
  • Space Saving: You don't need to warehouse boxes of screws and nuts; we handle the inventory.
  • Ready for Line: Parts arrive ready to go straight onto your final assembly line, boosting your throughput.

Industries Served

Industries Relying on Assembled Metal Parts
  • Telecommunications: Server racks and 5G base station enclosures with hundreds of installed standoffs.
  • Medical: Carts and diagnostic devices requiring clean, precise hardware installation.
  • Kiosks & Vending: Complex sheet metal bodies with installed locks, hinges, and screen mounts.
  • Aerospace: Riveted aluminum sub-structures for interior cabin components.
  • Energy: Battery storage boxes with heavy-duty studs for busbar connections.
