Expert Metal Welding & Assembly Services
Welding is the art and science of fusing metal components into a single, permanent structure. It is a critical step in sheet metal fabrication that defines the durability and final appearance of the product. At JUCHENG, we employ a team of certified welders and robotic welding systems to handle everything from delicate electronic chassis to heavy-duty industrial frames.
We understand that different metals and applications require different welding techniques. Whether you need the precision and aesthetic perfection of TIG welding for visible aluminum parts or the speed and strength of MIG welding for steel structures, we provide the expertise to ensure strong, distortion-free, and clean joints.
Welding Service

Comprehensive Welding Technologies

We offer a full spectrum of welding solutions tailored to material type and thickness:
  • TIG Welding (GTAW): The gold standard for precision and aesthetics. Ideal for thin-gauge Stainless Steel and Aluminum. It produces high-quality, spatter-free welds that are perfect for cosmetic parts.
  • MIG Welding (GMAW): A faster process suitable for thicker materials and structural steel frames. It provides deep penetration and high strength for heavy-duty applications.
  • Spot Welding (Resistance Welding): Used for joining overlapping sheet metal without filler material. Perfect for attaching brackets, stiffeners, and fasteners to electronic enclosures quickly.
  • Robot Welding: For high-volume production, we utilize robotic arms to ensure consistent weld bead quality and rapid cycle times.
  • Post-Weld Finishing: A weld is not finished until it looks perfect. We offer weld grinding, blending, and polishing to make seams invisible, especially for brushed stainless steel products.
TIG welding process on stainless steel

Product Gallery Categories

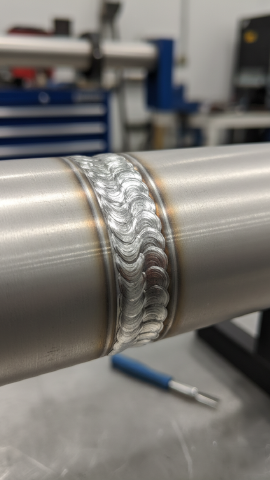

Cosmetic TIG Welding
Cosmetic TIG

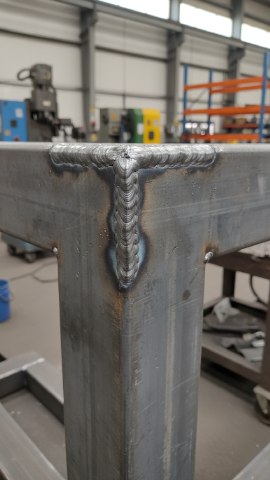

Structural MIG Welding
Structural MIG

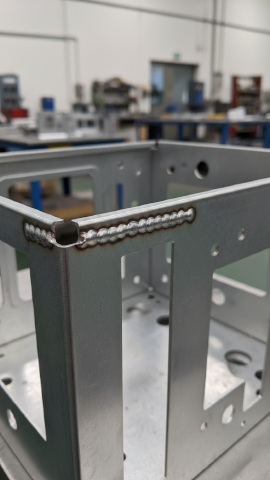

Spot Welded Enclosures
Spot Welding

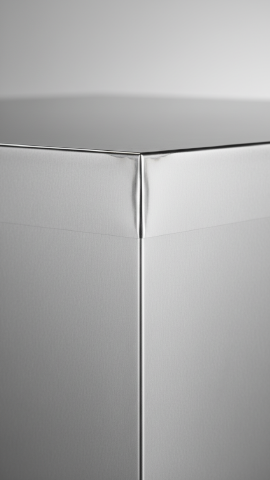

Invisible/Ground Welds
Invisible Welds

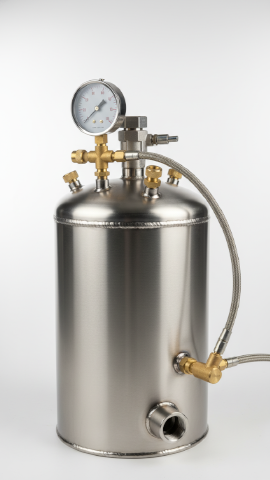

Leak-Proof Tanks
Leak-Proof Tanks

Materials Available

Weldability by Material
Not all metals weld the same. We adjust our technique based on the alloy:
Material Class Recommended Process JUCHENG Expertise
Stainless Steel (304/316) TIG (Thin) / MIG (Thick) We prevent "sugaring" (oxidation) on the back side using purge gas. Excellent for food/medical hygiene.
Aluminum (5052/6061) AC TIG / Pulse MIG Aluminum dissipates heat fast. We manage heat input to prevent warping and burn-through on thin sheets.
Mild Steel (SPCC/Q235) MIG / Spot Welding Fast and strong. We ensure proper penetration and clean up spatter before painting.
Galvanized Steel (SECC) Spot Welding Welding zinc-coated steel is tricky. We use specialized ventilation and techniques to ensure strong bonds.
Copper & Brass Brazing / Soldering While difficult to arc weld, we offer brazing services for conductive components.

Comparison

Comparison: TIG vs. MIG vs. Spot Welding
Which welding method is right for your project?
Feature TIG Welding (GTAW) MIG Welding (GMAW) Spot Welding (Resistance)
Speed Slow (Manual precision) Fast (Continuous feed) Very Fast (Milliseconds)
Aesthetics Excellent (Clean, precise) Good (May have spatter) Functional (Visible indentation)
Material Thickness Thin to Medium Medium to Thick Thin overlapping sheets
Strength High High Moderate (Shear strength)
Post-Processing Minimal cleaning required Grinding often needed Minimal
Best For Visible cosmetic parts, Aluminum, Stainless Structural frames, Steel brackets Enclosures, Brackets, Tabs

Why Choose Us

The JUCHENG Welding Standard
  • Custom Fixturing: We design and build custom welding jigs and fixtures to hold parts in perfect alignment during the welding process, ensuring dimensional accuracy and repeatability.
  • Distortion Control: Heat causes metal to warp. Our welders use techniques like skip welding, back-stepping, and heat sinks to keep your parts flat and true.
  • Leak Testing: For tanks and vessels, we perform dye penetrant or pressure testing to verify hermetic seals.
  • Seamless Integration: Welding is part of our workflow. Parts move directly from laser cutting to bending to welding and finally to powder coating, all under one roof.

Advantages

Benefits of Welded Assemblies
  • Permanent Bond: Welding creates a fused joint that is as strong as the base material, superior to screws or adhesives for structural integrity.
  • Weight Reduction: Eliminates the need for heavy fasteners and overlapping flanges required for riveting.
  • Leak-Proof: The only method to create truly airtight and watertight seams for liquid or gas containment.
  • Aesthetics: With proper finishing, welded joints can be made invisible, creating a seamless, high-end look.

Industries Served

Industries Relying on Precision Welding
  • Medical: Hygienic stainless steel carts, surgical trays, and clean-room equipment frames.
  • Automotive: Chassis sub-frames, exhaust systems, battery enclosures, and brackets.
  • Industrial Machinery: Heavy-duty machine guards, base frames, and fluid tanks.
  • Electronics: Custom server racks, NEMA-rated outdoor enclosures (seam welded).
  • Aerospace: Aluminum structural components and ducting.
