Precision Master Model Making: The Foundation of Vacuum Casting
In the vacuum casting process, the "Master Model" (or Master Pattern) is the reference object used to create the silicone mold. The quality, dimensional accuracy, and surface texture of the final cast parts are 100% dependent on this initial model. "Garbage in, garbage out" is the rule here.
At JUCHENG, we treat Master Model Making as a high-precision art form. We utilize 5-Axis CNC Machining for engineering-grade precision or high-resolution SLA 3D Printing for complex organic shapes. Our master model technicians then meticulously hand-finish these patterns—polishing surfaces to a mirror shine or applying specific mold textures—ensuring that every detail is perfectly replicated in the subsequent silicone tooling stage.
Master Model Making

JUCHENG’s Master Pattern Fabrication Capabilities

We select the manufacturing method for the master based on your specific requirements for tolerance and geometry:
  • CNC Machined Masters: For parts requiring tight tolerances (+/- 0.05mm) and crisp geometric features. We typically use PMMA (Acrylic) or ABS to create masters that hold precise dimensions.
  • SLA 3D Printed Masters: Ideal for intricate geometries, internal channels, or organic shapes that CNC cannot reach. We use high-temp or high-detail resins and hand-finish them to remove layer lines.
  • Surface Texturing: We can apply VDI 3400 or Mold-Tech standard textures directly onto the master model using specialized paints and sandblasting techniques, which are then transferred to the silicone mold.
  • Gloss Levels: From matte to high-gloss (SPI A2), our finishers ensure the master has the exact sheen required for the final parts.
  • Dimensional Verification: Every master model is inspected via CMM (Coordinate Measuring Machine) before mold making to ensure it compensates for the shrinkage rate of the casting resin.

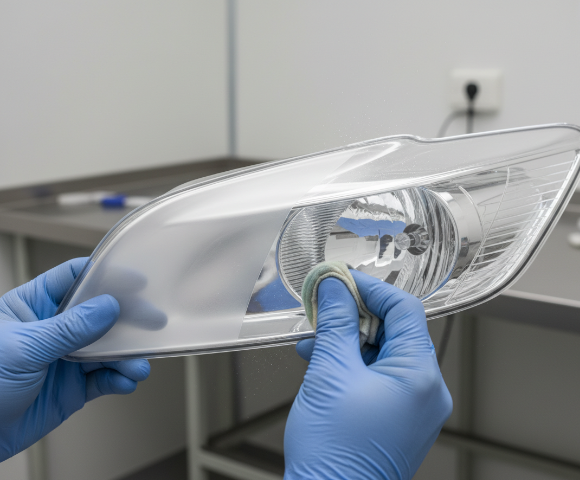

CNC machined master model

Product Gallery Categories

CNC PMMA Optical Masters

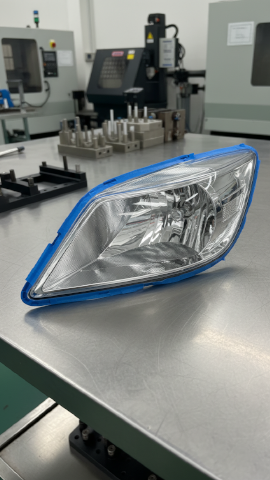

CNC PMMA Master
High-Resolution SLA Masters

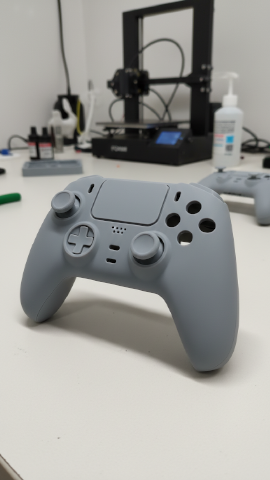

SLA Master
Textured Surface Masters

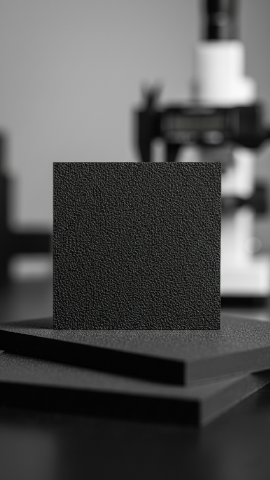

Textured Master
Multi-Part Split Masters

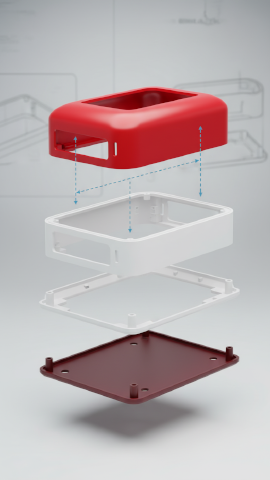

Split Master
High-Gloss Cosmetic Models

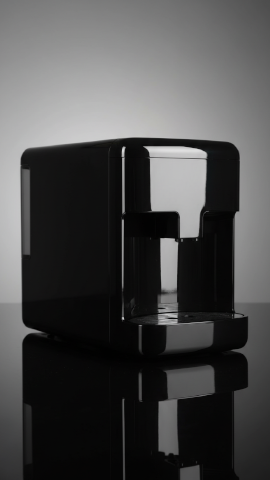

High Gloss Master

Materials Available

Materials for Master Patterns
The material of the master is chosen for its machinability and stability:
Alloy Grade Process Why use it for a Master?
PMMA (Acrylic) CNC The best choice for clear parts. Easy to polish to optical clarity. Rigid and stable.
ABS CNC Excellent for general housings. Easy to sand and paint. Good edge retention
POM (Delrin) CNC Used for functional masters requiring high precision gears or threads.
SLA Resin (Somos) 3D Print Best for complex curves and undercuts. Fast turnaround.
Aluminum CNC Used for masters that need to make many molds (high durability), though less common than plastic.

Comparison

Comparison: CNC Master vs. SLA Master
Which method should you choose for your master model?
Feature CNC Machined Master SLA Printed Master
WeightAccuracy High (+/- 0.05mm) Medium (+/- 0.1mm)
Surface Finish Excellent (Sharp edges) Good (Rounded edges possible)
Material Stability High Medium (Can warp over time)
Complexity Limited by tool access Unlimited
Cost Higher Lower
Best For Precision housings, lenses, flat parts Organic shapes, figurines, complex grills

Why Choose Us

The Importance of a Perfect Master
  • Shrinkage Calculation: Our engineers apply precise scaling factors to the master model CAD to compensate for the specific shrinkage rate of the polyurethane resin you selected (e.g., +0.4%).
  • Edge Definition: We ensure "crisp" parting lines and sharp edges on the master, which translates to cleaner molded parts with less flash.
  • Rapid Turnaround: With in-house CNC and SLA, we can produce a master model in as little as 24 hours.
  • Surface Expertise: We detect and fix minute surface imperfections on the master that would otherwise be replicated on every single cast part.

Advantages

Why Invest in a High-Quality Master?
  • Replication Fidelity: The silicone mold copies everything—including scratches. A perfect master ensures perfect copies.
  • Texture Transfer: Allows you to test surface textures (like grip patterns) without etching a steel mold.
  • Verification: The master serves as the first "proof" of your design's physical form before casting begins.
