Aluminum Alloy 5052 CNC Machining Material
Aluminum Alloy 5052 is the highest strength alloy of the non-heat-treatable grades. Alloyed primarily with magnesium, it is renowned not for brute force, but for its exceptional versatility. It combines high fatigue strength, superb resistance to saltwater corrosion, and outstanding workability. At JUCHENG, we machine 5052-H32 plates and bars for applications where 6061 is too brittle or where extreme environmental protection is required. Our facility is uniquely equipped to handle "Hybrid Manufacturing"—where a part is precision machined and then bent into its final shape, a process where 5052 excels.
Aluminum Alloy 5052 Material

JUCHENG's 5052 Machining Capabilities

Since 5052 is softer and "gummier" than 6061, it presents specific machining challenges that we have mastered:
  • Chip Control: 5052 produces long, continuous chips. We utilize specialized high-rake geometry tools and peck cycles to break chips effectively, preventing them from marring the surface finish.
  • Hybrid Fabrication: We are experts at machining complex features (pockets, holes) into flat 5052 plates and then using our CNC press brakes to form them, creating complex brackets that would be impossible to mill from a solid block.
  • Surface Finishing: We offer Anodizing and Chromate Conversion that works exceptionally well with 5052's chemistry, providing a clear, uniform protective layer.
  • Flatness Control: 5052 plate typically holds flatness well. We use vacuum fixtures to machine thin panels without inducing stress warping.

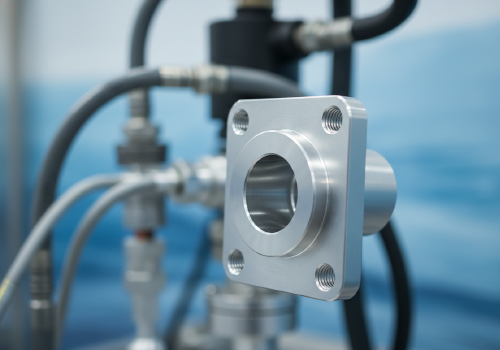

Aluminum 5052 fuel flange

Advantages of CNC Machining 5052

Advantage Detailed Description Key Benefit
Superior Formability Unlike 6061-T6 which can crack, 5052 can be bent to tight radii even after machining. Ideal for complex brackets, enclosures, and parts requiring post-machining deformation.
Marine-Grade Corrosion Resistance Excellent resistance to saltwater and industrial atmosphere. Reliable for marine hardware, boat fittings, and outdoor utility cabinets.
High Fatigue Strength Better fatigue resistance than many other aluminum alloys. Suitable for parts subjected to excessive vibration, such as fan blades or fuel lines.
Excellent Weldability Can be welded easily using standard techniques. Perfect for machined components that serve as fittings on fuel tanks or vessels.
Cost-Effective Generally lower material cost than 6061 or 7075. Economical choice for non-structural, high-volume parts.

Technical Parameters & Material Standards

We process 5052 primarily in the strain-hardened H32 temper:

Grade Category Specification Characteristics & Ideal Uses
Aluminum 5052-H32 Strain Hardened The standard temper. Work-hardened by rolling then stabilized by low-temperature heat treatment. Good flatness and reasonable strength.
Uses: Chassis plates, electronic panels, marine cabinets, hydraulic tubes.
Aluminum 5052-O Annealed (Soft) Maximum ductility and lowest strength. Used when extreme forming or deep drawing is required.
Uses: Intricate spun parts, deep drawn housings.

CNC Machining Guidelines for 5052

  • Burr Formation: Being softer, 5052 tends to create larger burrs than 6061. We employ aggressive deburring strategies, including tumbling and manual edge breaking.
  • Tool Adhesion: Aluminum 5052 likes to stick to the cutting edge. We use polished carbide tools with specific coatings (like ZrN) and flood coolant to ensure a clean cut.
  • Anodizing Appearance: When anodized, 5052 may have a slightly yellowish tint compared to the silver-clear of 6061 due to the magnesium alloy, but the protection level is superior.
  • Thread Strength: Threads in 5052 are not as strong as in 6061. For frequently disassembled parts, we recommend using stainless steel thread inserts (Helicoils).

Application Scenarios

Marine Industry: Small machined fittings, latches, and sensor housings exposed to sea spray.
Automotive & Transport: Fuel lines, fuel tank connectors, hydraulic clips, vibration-dampening brackets.
Electronics: Faceplates, chassis bottoms, heat shields (good thermal conductivity).
Signage & Architecture: Machined letters, road signs, decorative panels.

Physical Properties Table

Comparison: 5052-H32 vs 6061-T6:
Property Aluminum 5052-H32 Aluminum 6061-T6 Unit
Density 2.68 2.70 g/cm³
Tensile Strength 228 310 MPa
Yield Strength 193 276 MPa
Elongation 12 12 %
Hardness (Brinell) 60 95 HB
Machinability Fair (Gummy) Good -
Formability Excellent Fair -
