Aluminum Alloy 5083 CNC Machining Material
Aluminum Alloy 5083 is widely recognized as the premier "Marine Grade" alloy. As a high-magnesium alloy, it offers the highest strength of all non-heat-treatable aluminum grades. It is legendary for its exceptional performance in extreme environments, resisting corrosion from seawater and industrial chemicals better than 6061. At JUCHENG, we specialize in machining heavy-duty 5083 plates and blocks. Whether for shipbuilding components, cryogenic pressure vessels, or military vehicle armor, our facility ensures that the material's structural integrity and corrosion-resistant properties are preserved throughout the machining process.
Aluminum Alloy 5083 Material

JUCHENG's 5083 Machining Capabilities

Machining 5000-series alloys requires specific attention to chip management and surface finish. We offer:
  • Large Plate Machining: 5083 is often used for large structural panels. Our large-gantry CNC machines can handle oversized plates up to 3 meters in length.
  • Weld Preparation: Since 5083 is frequently welded, we provide precision CNC beveling and edge preparation to ensure perfect fit-up for subsequent welding operations.
  • Cryogenic Components: We machine parts destined for LNG (Liquefied Natural Gas) applications, ensuring strict adherence to dimensional tolerances required for low-temperature sealing.
  • Stress-Free Processing: We utilize the H111 temper, which offers good stability, and employ machining strategies that minimize residual stress induction.

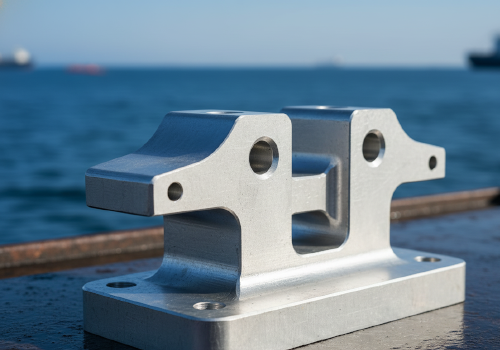

Aluminum 5083 marine bracket

Advantages of CNC Machining 5083

Advantage Detailed Description Key Benefit
Ultimate Corrosion Resistance Exceptional resistance to seawater, industrial chemicals, and atmospheric attack. The #1 choice for marine hardware, ship hulls, and subsea robotics.
High Strength (Non-Heat Treatable) Significantly stronger than 5052 and 3003. Retains high strength after welding. Suitable for structural applications where heat treatment (like T6) is not feasible.
Excellent Weldability Retains most of its strength in the Heat Affected Zone (HAZ). Perfect for complex assemblies that combine machining and welding.
Cryogenic Toughness Unlike steel which becomes brittle, 5083 becomes stronger and tougher as temperatures drop. Ideal for cryogenic tanks, LNG transport, and refrigeration equipment.
Good Machinability While "gummier" than 6061, it can be machined rapidly with correct tooling. Cost-effective production of large, robust parts.

Technical Parameters & Material Standards

We process 5083 in tempers optimized for stability and corrosion resistance:

Grade Category Specification Characteristics & Ideal Uses
Aluminum 5083-H111 Standard Structural Some work hardening by shaping, but less than H32. The most common temper for machined plates. Good dimensional stability.
Uses: General marine structures, vehicle bodies, pressure vessels.
Aluminum 5083-H116 Marine Special Specially processed to provide improved resistance to exfoliation corrosion. Mandatory for underwater or waterline marine applications.
Uses: Boat hulls, high-speed patrol boats, offshore platforms.
Aluminum 5083-O Annealed (Soft) Highest ductility but lowest strength. Used where maximum forming is required before machining.
Uses: Deep drawn parts, complex formed shapes.

CNC Machining Guidelines for 5083

  • Built-Up Edge (BUE): 5083 is softer and gummier than 6061. Aluminum tends to stick to the tool. We use highly polished, sharp carbide tools and flood coolant to prevent BUE.
  • Surface Finish: It does not achieve the same "mirror" shine as 6061 or 7075 easily. The finish is typically a clean, satin industrial matte.
  • Anodizing: 5083 can be anodized for protection, but the finish may appear yellowish or dark grey due to the magnesium content. It is often painted or powder coated in marine applications.
  • Chip Breaking: Chips can be long and stringy. Chip-breaking cycles are programmed to ensure smooth automated operation.

Application Scenarios

  • Marine & Shipbuilding: Masts, cleats, engine mounts, hull stiffeners, desalinations plants.
  • Pressure Vessels: Unfired welded pressure vessels, storage tanks.
  • Rail & Transport: Rail coach bodies, truck tip bodies (dump trucks).
  • Military: Armor plates for personnel carriers (due to high toughness).
  • Energy: LNG storage tanks, drilling rig components.

Physical Properties Table

Comparison: 5083-H111 vs 5052-H32 (The 5000 series siblings):
Property Aluminum 5083-H111 Aluminum 5052-H32 Unit
Density 2.66 2.68 g/cm³
Tensile Strength 275 - 350 228 MPa
Yield Strength 125 - 200 193Hardness (Brinell) MPa
Fatigue Strength 75 60 HB
Corrosion Resistance Excellent Very Good -
Weldability Excellent Excellent -
