Aluminum Alloy 6063 CNC Machining Material
Aluminum Alloy 6063 is widely recognized as the "Architectural Alloy." While it shares the same alloying elements (Magnesium and Silicon) as 6061, it is formulated for superior surface finish and extrudability rather than maximum structural strength. At JUCHENG, we utilize 6063 primarily for cosmetic CNC machined parts where visual quality is paramount. It offers the best response to anodizing of all the 6000-series alloys, producing rich, uniform colors and a flawless metallic texture. It is the material of choice for visible consumer electronics housings, custom heat sinks, and architectural trim.
Aluminum Alloy 6063 Material

JUCHENG's 6063 Machining Capabilities

We specialize in transforming 6063 stock (often extruded bars or plates) into precision components:
  • Cosmetic Surface Finishing: Since 6063 is chosen for looks, our process focuses on preventing scratches and chatter marks. We use diamond-polished tools to achieve a surface roughness better than Ra 0.8µm.
  • Custom Heat Sinks: We machine complex fin geometries from 6063 blocks. Its high thermal conductivity and ability to form thin fins make it superior for thermal management.
  • Color Anodizing: Our in-house anodizing line is optimized for 6063, ensuring consistent color matching for batch production of consumer goods.
  • Intricate Profiles: We can machine features into pre-extruded 6063 profiles, combining the cost-efficiency of extrusion with the precision of CNC.

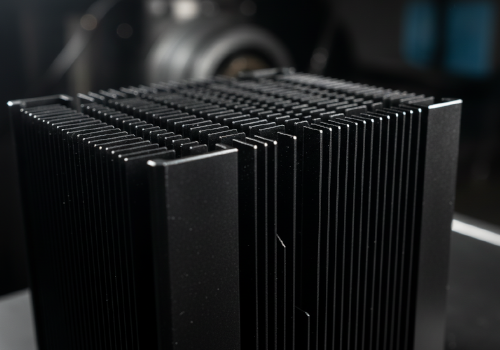

Aluminum 6063 heat sink

Advantages of CNC Machining 6063

Advantage Detailed Description Key Benefit
Superior Surface Finish Machines to a smoother finish than 6061 or 7075. Reduces polishing time; creates a premium "high-end" look.
Best for Anodizing The chemical composition accepts oxide layers evenly. Resulting colors are vibrant, uniform, and free from the "muddy" look sometimes seen in other alloys.
Excellent Corrosion Resistance Highly resistant to outdoor weathering and moisture. Suitable for exterior architectural fixtures and window frames.
High Thermal Conductivity Slightly higher conductivity than 6061 (approx. 200 W/m-K). The industry standard for heat sinks and LED cooling fixtures.
Good Formability Can be formed or bent more easily than T6 tempered 6061. Suitable for parts requiring both machining and subsequent bending.

Technical Parameters & Material Standards

We process 6063 typically in the T5 or T6 temper:

Grade Category Specification Characteristics & Ideal Uses
AA 6063 (USA) ASTM B221 Moderate strength alloy. Focus is on finish and corrosion resistance. Finer grain structure than 6061.
Uses: Visible electronic housings, furniture tubing, sign frames.
EN AW-6063 AlMg0.7Si European standard. Identical performance. Excellent for intricate machining where strength is secondary to aesthetics.
Uses: Architectural trim, door handles, window fittings.
Temper T5 Cooled from shaping & artificially aged Standard temper for extrusions. Good stability and machinability.
Uses: General purpose machining stock.
Temper T6 Solution heat treated & artificially aged Maximum strength for this alloy. Harder surface, better for machining fine chips.
Uses: Precision machined heat sinks, brackets.

CNC Machining Guidelines for 6063

  • Chip Control: 6063 is "gummier" (softer) than 6061. It tends to produce long, stringy chips. We use chip-breaking tool paths and high-pressure coolant to prevent bird-nesting.
  • Workholding: Being softer, it can dent easily in vise jaws. We use soft jaws or vacuum fixtures to hold parts without marring the cosmetic surface.
  • Deburring: Burrs on 6063 can be tenacious. We employ thermal deburring or meticulous manual tumbling to ensure smooth edges.
  • Coolant: Essential to prevent the material from welding to the cutter (BUE).

Application Scenarios

  • Thermal Management: CPU coolers, LED light heat sinks, amplifier cooling fins.
  • Architecture: Window latches, door handles, curtain wall components, railing brackets.
  • Consumer Electronics: High-end audio chassis, smartphone borders, decorative bezels.
  • Furniture: Custom aluminum joints, table legs, decorative trim strips.
  • Pipe & Tube: Machined fittings for irrigation or pneumatic systems.

Physical Properties Table

Comparison of 6063 vs 6061:
Property Aluminum 6063-T6 Aluminum 6061-T6 Unit
Density 2.70 2.70 g/cm³
Tensile Strength 215 310 MPa
Yield Strength 170 276 MPa
Hardness (Brinell) 73 95 HB
Thermal Conductivity 200 167 W/m-K
Anodizing Response Excellent Good -
