Precision CNC Machining of Aluminum 6082
While 6061 is the standard in America, Aluminum Alloy 6082 is the structural alloy of choice in Europe and is gaining traction globally. It possesses the highest strength of all the 6000-series alloys, often replacing 6061 in applications requiring higher stress resistance without jumping to the expense of the 7000 series. At JUCHENG, we understand the nuances of machining this manganese-alloyed aluminum. We provide specialized CNC milling and turning services for 6082-T6/T651 plates and bars, delivering heavy-duty components for the construction, crane, and transport industries.
Precision CNC Machining of Aluminum 6082

JUCHENG's 6082 Fabrication Capabilities

Machining 6082 requires slightly different strategies than 6061 due to its stringier chips and grain structure. We offer:
  • Heavy-Duty Machining: Our rigid CNC centers are capable of aggressive material removal on thick 6082 plates used for structural baseboards.
  • Chip Management: 6082 tends to produce continuous, stringy chips. We utilize specialized chip-breaking tooling and high-pressure coolant systems to prevent "bird-nesting" and ensure surface consistency.
  • Large Format Milling: We can machine large structural frames and trusses (up to 2 meters) often designed with 6082.
  • Certified Materials: We supply genuine EN AW-6082 stock with full traceability to support export requirements to European markets.

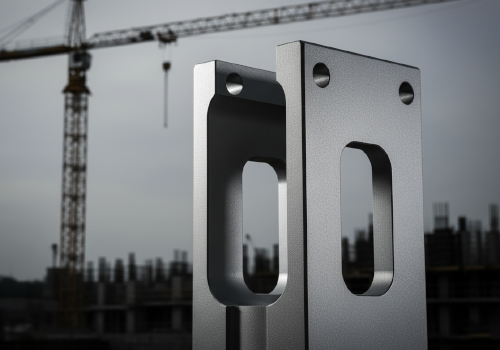

Aluminum 6082 structural bracket

Advantages of CNC Machining 6082

Advantage Detailed Description Key Benefit
Superior Strength Higher yield strength (approx. 10-18% higher) than 6061-T6. Allows for lighter designs in load-bearing structures like bridges and cranes.
Excellent Corrosion Resistance Very high resistance to atmospheric attack and industrial chemicals. Performs reliably in outdoor infrastructure and marine environments.
Good Machinability Machines well, producing tight tolerances and good finishes (though chips are longer). Cost-effective production for complex structural parts.
Weldability Maintains good strength in the weld zone (better than many heat-treatable alloys). Ideal for machined parts that will later be welded into larger assemblies.
Anodizing Response Accepts protective and decorative anodizing well. Can be hardened (Type III) or colored (Type II) for added durability.

Technical Parameters & Material Standards

We process this alloy to meet specific structural standards:

Grade Category Specification Characteristics & Ideal Uses
Aluminum 6082-T6 EN AW-6082 (European Std) Solution heat treated and artificially aged. Maximum tensile strength. Good impact resistance.
Uses: High-stress structural applications, trusses, bridges, transport skips.
DIN 3.2315 AlSi1MgMn (German Std) Chemically identical to 6082. Contains Manganese (Mn) which controls grain structure and boosts strength.
Uses: Heavy-duty machining machinery parts, ore skips, beer barrels.
Temper T651 Stress Relieved Stretched after heat treatment to relieve internal stress. Remains flat after heavy machining.
Uses: Large base plates, precision fixtures, mold bolsters.nd machinability.

CNC Machining Guidelines for 6082

  • Surface Texture: 6082 has a slightly different grain structure than 6061. Machined surfaces may appear slightly more "grainy" before polishing, but this does not affect tolerance.
  • Anodizing Color: Due to the Manganese content, clear anodizing may have a slight yellowish or brownish tint compared to the silver-clear of 6061. Black or dark colors are recommended for cosmetic uniformity.
  • Deburring: Burrs can be tougher. We use automated tumbling or manual deburring to ensure safe, smooth edges.

Application Scenarios

  • Transport: Truck chassis components, trailer frames, bicycle frames.
  • Construction: Cranes, pylons, scaffolding components, roof trusses.
  • Industrial: Highly stressed machine parts, ore chutes, milk churns.
  • Marine: Structural bulkheads where higher strength than 5052 is needed.

Physical Properties Table

Strength comparison: 6082 vs 6061:
Property Aluminum 6082-T6 Aluminum 6061-T6 Unit
Density 2.70 2.70 g/cm³
Tensile Strength 310 - 340 310 MPa
Yield Strength 260 - 310 276 MPa
Hardness (Brinell) 95 95 HB
Elongation 10 12 %
Corrosion Resistance Excellent Very Good -
