Brass CNC Machining Material
Brass is a non-ferrous alloy of copper and zinc, widely valued in the manufacturing industry for its bright gold-like aesthetic, excellent corrosion resistance, and superior machinability. It is often referred to as the "Free-Machining" metal because it can be turned and milled at extremely high speeds with minimal tool wear, making it one of the most cost-effective metals for high-volume production.
At JUCHENG, Brass is a staple material for our CNC Turning and Milling services. We leverage Swiss-style lathes and automated turning centers to produce high-precision brass fittings, threaded inserts, and decorative hardware. Whether you need standard free-cutting brass or specialized naval grades, our ISO-certified facility ensures tight tolerances and mirror-like surface finishes directly off the machine.

JUCHENG's Brass Machining Capabilities

Brass is one of the easiest metals to machine, allowing us to offer highly efficient production solutions:
  • High-Volume Turning: Our facility is equipped with automatic bar feeders, allowing for continuous, lights-out manufacturing of brass pins, shafts, and spacers.
  • Precision Threading: Brass holds threads exceptionally well. We specialize in machining complex internal and external threads for fluid fittings (NPT/BSP) and fasteners.
  • Surface Finishing: We offer a full range of finishes including As-Machined, Polished (High Gloss), Brushed, and Nickel/Chrome Plating. Our polishing process brings out the natural golden luster of the alloy.
  • Material Compliance: We provide material certifications (including RoHS-compliant Lead-Free Brass) to ensure your parts meet environmental regulations.

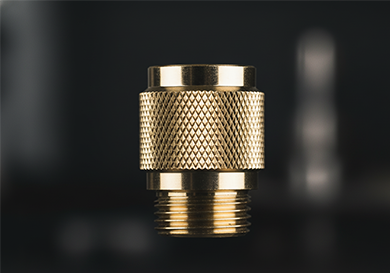

Brass C36000 part

Advantages of CNC Machining Brass


Advantage Detailed Description Key Benefit
Ultimate Machinability Brass C36000 sets the industry standard (100% rating) for machinability. It breaks into small chips easily. Allows for extremely fast cycle times, extended tool life, and superior surface precision.
Corrosion Resistance Highly resistant to water, salt, and atmospheric corrosion (does not rust like steel). Ideal for plumbing, marine hardware, and outdoor applications requiring long lifespans.
Aesthetic Appeal Has a bright, yellowish-gold appearance. It can be polished to a high luster. Perfect for decorative knobs, architectural hardware, and luxury goods without expensive plating.
Low Friction / Non-Sparking Brass does not spark when struck against other metals and has low surface friction. Safe for use in hazardous gas environments (Explosion-proof tools) and as bearing surfaces.
Antimicrobial Like copper, brass has natural antimicrobial properties (depending on copper content). Suitable for medical components and public door handles.

Technical Parameters & Material Properties

We machine a variety of brass alloys tailored for machining, forming, and marine use:

Grade Category Standard Name Detailed Characteristics Ideal Applications
Free-Cutting Brass C36000 (C360) The industry standard for CNC machining. Contains lead (~3%) to act as a lubricant and chip breaker. Offers the highest machinability rating (100%). Nuts, bolts, threaded inserts, fluid fittings, instrument components, bushings.
Cartridge Brass C26000 (70/30) Contains 70% Copper and 30% Zinc. More ductile and stronger than C36000 but harder to machine (chips are "gummier"). Excellent for cold forming. Ammunition casings, stamped parts, radiator cores, electrical terminals, deep drawn parts.
Naval Brass C46400 Alloyed with tin to inhibit dezincification (corrosion) in saltwater environments. High strength and rigidity compared to standard brass. Marine hardware, propeller shafts, valve stems, turnbuckles, underwater fittings.
Lead-Free Brass C46500 / Eco Brass Specially formulated to meet RoHS and REACH regulations by replacing lead with other elements (like Silicon). Slightly harder to machine than C360. Drinking water faucets, plumbing fittings in regulated markets, medical devices.

CNC Machining Guidelines for Brass

  • Speeds and Feeds: Because brass is free-cutting and dissipates heat well, we run it at very high RPMs and feed rates to maximize machine efficiency.
  • Chip Control: C36000 produces small, broken chips that evacuate easily. However, C26000 produces stringy chips, requiring "chip-breaking" cycles.
  • Lubrication: Minimal lubrication is needed compared to steel. We use light coolant primarily for thermal stability and chip flushing.
  • Tooling: Standard carbide tools work excellently. We ensure tools are dedicated to brass to prevent cross-contamination (iron particles) which could cause surface rust spots later.

Application Scenarios

  • Plumbing & Fluid: Pipe fittings, valves, nozzles, sprinklers, hose couplings.
  • Electrical: Terminal blocks, switchgear components, plug pins, grounding screws.
  • Automotive: Sensors, threaded inserts for plastic parts (Knurled nuts), fasteners.
  • Consumer Goods: Decorative handles, pen parts, musical instrument components, luxury watch gears.
  • Industrial: Gears, bearings, bushings, and pneumatic components.

Physical Properties Table

Property Free-Cutting (C36000) Cartridge (C26000) Naval Brass (C46400) Unit
Density 8.50 8.53 8.41 g/cm³
Tensile Strength 340 - 500 300 - 440 380 - 600 MPa
Yield Strength 125 - 310 75 - 220 170 - 455 MPa
Machinability Rating 100% (Baseline) 30% 60% -
Thermal Conductivity 115 120 116 W/m-K
Hardness (Rockwell) B60 - B80 B55 - B75 B75 - B90 -
