Machining Inconel 718: The Ultimate High-Temperature Superalloy
When engineering applications push the absolute limits of mechanical stress and extreme heat, standard metals simply fail. Inconel 718 is a precipitation-hardenable nickel-chromium superalloy expressly designed to thrive in these hostile environments. Famed for its exceptional yield, tensile, and creep-rupture properties at temperatures soaring up to 700°C (1300°F), it is the undisputed king of aerospace and gas turbine materials. At JUCHENG, we recognize that the very properties making Inconel 718 invincible in the field make it notoriously difficult to manufacture. Our facility is equipped with high-rigidity 5-axis machining centers, advanced tooling geometries, and robust cooling systems to conquer this superalloy, delivering flight-critical components and heavy-duty energy parts with uncompromising precision.

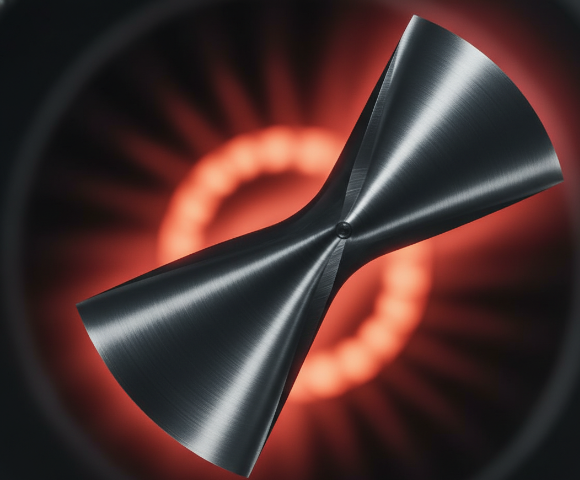

Inconel 718

JUCHENG's Superalloy Fabrication Capabilities

Taming a nickel-based superalloy requires abandoning conventional machining logic. We secure your project's success through:
  • High-Rigidity Milling & Turning: Inconel's high shear strength causes massive tool deflection. We utilize ultra-rigid machine bed cast irons and heavy-duty tool holders to eliminate vibration and chatter during heavy cuts.
  • Advanced Tooling Strategy: Standard carbide melts against Inconel. We employ specialized ceramic inserts and whisker-reinforced coatings designed specifically for heat-resistant superalloys (HRSA) to maintain edge integrity.
  • EDM Integration: For deep pockets, sharp internal corners, or intricate turbine blade roots where physical milling tools cannot survive the tool pressure, we seamlessly transition to Wire and Sinker EDM processing.
  • Heat Treatment Management: We machine Inconel in both the solution-annealed state (for maximum material removal) and the precipitation-hardened state, carefully managing the aging process to lock in final mechanical properties without geometric distortion.
Inconel 718

Advantages of CNC Machining Inconel 718

Advantage Detailed Description Key Benefit
Extreme Heat Resistance Retains exceptional mechanical strength and oxidation resistance up to 700°C. The only choice for hot-section jet engine components and exhaust systems.
High Creep-Rupture Strength Resists slow, progressive deformation under constant mechanical stress in high-temp environments. Ensures long-term safety and reliability in rotating turbine parts.
Superb Corrosion Resistance The high nickel and chromium content forms a protective passivation layer against pitting and crevice corrosion. Performs flawlessly in sour gas (H2S) oil wells and deep-sea marine conditions.
Cryogenic Toughness Unlike many high-strength steels, it does not become brittle at sub-zero temperatures. Highly effective for liquid fuel rocket motors and cryogenic storage valves.
Weldability Highly resistant to post-weld cracking compared to other nickel-base superalloys. Allows for the fabrication of complex assemblies and pressure vessels.

Technical Parameters & Material Conditions

We process this superalloy based on your specific structural requirements:
Grade Category Ideal Applications Detailed Characteristics
Inconel 718 (Solution Annealed) Heavy material removal for complex aerospace brackets, rings, and large forgings. The softest and most ductile state of the alloy (typically around 20-25 HRC). It provides the best machinability and formability, allowing for aggressive roughing operations before the final hardening process.
Inconel 718 (Aged / Precipitation Hardened) Finished gas turbine blades, high-pressure downhole tooling, and rocket engine fasteners. Heat-treated to achieve maximum tensile and yield strength (can reach up to 40 HRC). Machining in this state is extremely difficult and is usually reserved for final light finishing passes to ensure tight dimensional tolerances.

CNC Machining Guidelines for Inconel 718

  • Work-Hardening Prevention: Inconel 718 work-hardens rapidly if a tool rubs against the surface instead of cutting. We must maintain a constant, aggressive feed rate. "Dwelling" or stopping the tool in the cut will instantly harden the surface, causing catastrophic tool failure on the next pass.
  • Heat Evacuation: The alloy is a poor conductor of heat, meaning the cutting temperature transfers directly into the tool rather than the chip. High-pressure, through-spindle flood coolant is mandatory to prevent tool melting and surface smearing.
  • Rigid Workholding: Due to the immense cutting forces required, parts must be clamped with maximum rigidity. Thin-walled components require custom-machined soft jaws to prevent distortion.
  • Threading: Tapping internal threads in Inconel is incredibly risky due to tap breakage. We heavily utilize CNC thread milling to ensure safe, precise internal threads.

Application Scenarios

  • Aerospace & Aviation: Jet engine compressor blades, turbine disks, afterburner components, thrust reversers, and high-strength aerospace fasteners.
  • Oil & Gas: Downhole drilling tools, wellhead components, safety valves, and pump shafts exposed to highly corrosive sour gas environments.
  • Energy & Power Generation: Industrial gas turbine parts, nuclear reactor core components, and high-temperature heat exchangers.
  • Space Exploration: Rocket engine thrust chambers, cryogenic propellant manifolds.

Physical Properties Table

Typical mechanical properties (Precipitation Hardened condition):
Property Inconel 718 (Aged) Unit
Density 8.19 g/cm³
Tensile Strength (Ultimate) 1375 MPa
Yield Strength 1100 MPa
Max Operating Temperature 700 °C
Hardness (Rockwell C) 36 - 40 HRC
Melting Point 1260 - 1336 °C
Machinability Very Difficult -
