S235JR European Structural Steel Machining
S235JR is the most widely used non-alloy structural steel in the European standard EN 10025. The name itself defines its properties: "S" for Structural, "235" for the minimum yield strength (MPa), and "JR" indicating it meets impact testing requirements at 20°C. It is the European equivalent to ASTM A36 or Q235B. At JUCHENG, we recognize that global projects require global material standards. We stock and machine certified S235JR plates and profiles, delivering heavy-duty brackets, machine bases, and welded assemblies that fully comply with European engineering specifications.
Mild Steel S235JR。

JUCHENG's S235JR Fabrication Capabilities

Processing structural steel often involves large-scale fabrication. We offer:
  • Large Gantry Milling: Since S235JR is often used for large machine bases, we utilize gantry CNC mills (up to 3 meters) to face, drill, and tap huge structural weldments.
  • Certified Welding: S235JR is designed to be welded. Our ISO-certified welders use MIG/MAG processes to fabricate complex frames before precision machining.
  • Surface Preparation: As a hot-rolled steel, S235JR comes with mill scale. We offer Sandblasting and Grinding services to prepare the surface for painting or galvanizing.
  • Galvanizing Services: For outdoor construction parts, we provide Hot-Dip Galvanizing post-machining to ensure long-term rust protection.

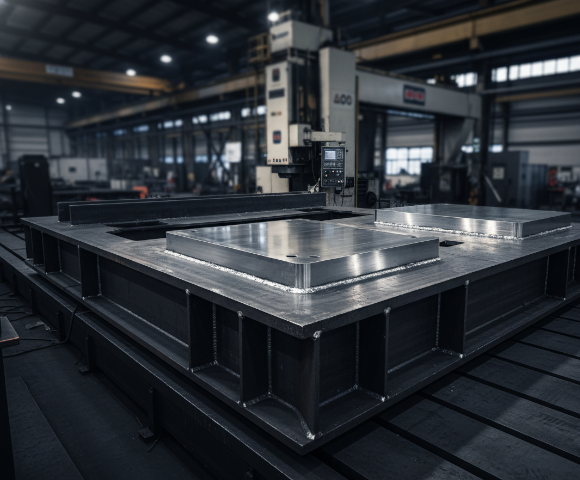

CNC machined S235JR steel

Advantages of CNC Machining S235JR

Advantage Detailed Description Key Benefit
Superior Weldability Low carbon and manganese content ensures excellent fusion without cracking. The ideal choice for fabricated frames, chassis, and welded assemblies.
Good Formability Can be cold formed, bent, and rolled without breaking. Suitable for brackets that require both machining and bending.
Impact Tested (JR) Guaranteed impact energy (27 Joules) at room temperature (20°C). Provides reliable toughness for construction and machinery applications.
Cost Efficiency High availability and low raw material cost. Economical for massive, heavy parts where material weight is high.
Versatility Available in plates, tubes, beams, and angles. Can be machined from diverse stock forms to minimize waste.

Technical Parameters & Material Standards

Understanding the European designation:
Grade Category Specification Characteristics & Ideal Uses
S235JR Material No. 1.0038 Characteristics: Hot rolled structural steel. Tensile strength 360-510 MPa. Good ductility. Surface usually has mill scale (black/blue).
Uses: Building structures, bridge components, vehicle chassis, machine base plates.
Equivalent Grades ASTM A36 / Q235B Characteristics: While chemical compositions vary slightly, these are generally considered interchangeable for non-critical structural applications.
Uses: General heavy industry.

CNC Machining Guidelines for S235JR

  • Scale Removal: The hard oxide scale on hot-rolled S235JR can wear out tools. We often face-mill the skin first with tough inserts before finishing.
  • Stress Relief: Large welded S235JR frames contain residual stress. We recommend Stress Relief Annealing before final machining to ensure flatness and dimensional stability.
  • Tolerances: Due to internal stresses in hot-rolled steel, holding microns is difficult. Standard machining tolerances (+/- 0.05mm) are recommended over precision grinding tolerances.
  • Corrosion: It will rust rapidly. Parts must be oiled, painted, or galvanized immediately.

Application Scenarios

  • Construction: Crane outriggers, structural joints, anchor plates.
  • Heavy Machinery: Excavator buckets, bulldozer frames, agricultural plow beams.
  • Energy: Wind tower flanges, pipeline supports.
  • Industrial Automation: Robot riser bases, conveyor system frames.

Physical Properties Table

Typical Mechanical Properties for S235JR:
Property Value Unit
Yield Strength 235 (Min) MPa
Tensile Strength 360 - 510 MPa
Elongation 26 %
Impact Strength 27J @ 20°C (JR Grade)
Density 7.85 g/cm³
Weldability Excellent -
