S275JR Structural Steel Machining & Fabrication
S275JR is a versatile non-alloy structural steel grade defined by the European standard EN 10025. With a minimum yield strength of 275 MPa, it offers a significant strength upgrade over standard S235 while maintaining excellent weldability and machinability. It is the preferred choice in the construction and heavy engineering sectors for load-bearing applications. At JUCHENG, we don't just supply the material; we offer complete fabrication services. From flame cutting heavy plates to CNC machining precise mounting points on large welded frames, we deliver ready-to-assemble S275JR components for infrastructure and industrial machinery projects.
Mild Steel S275JR

JUCHENG's S275JR Fabrication Capabilities

We are equipped to handle heavy structural steel projects from start to finish:
  • Large Format Machining: Structural parts are often big. Our double-column (gantry) machining centers can process S275JR frames up to 3 meters in length, ensuring flat mounting surfaces and precise bore alignment.
  • Certified Welding: S275JR is designed to be joined. Our welding department utilizes MIG/MAG processes to fabricate complex chassis and beams before machining.
  • Profile Processing: We machine not just plates, but also standard structural profiles (H-beams, I-beams, Channels) made of S275JR to create custom brackets and supports.
  • Anti-Corrosion Finishing: Since structural steel is often used outdoors, we provide Hot-Dip Galvanizing, Priming, and Industrial Painting services to protect against rust.

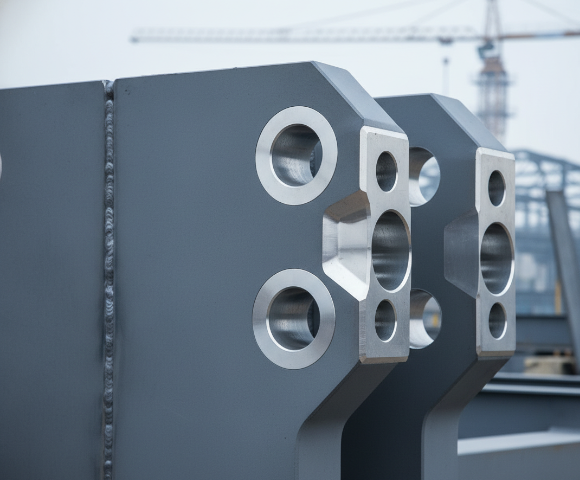

CNC machined S275JR structural steel

Advantages of CNC Machining S275JR

Advantage Detailed Description Key Benefit
Optimized Strength Yield strength of 275 MPa (vs 235 MPa for S235). Provides better load-bearing capacity without the cost premium of high-yield S355.
Excellent Weldability Low carbon equivalent ensures strong, crack-free welds. Essential for fabricating large frames, bridges, and vehicle chassis.
Good Machinability Machines reliably with standard tooling (though scale must be managed). Cost-effective for large-scale material removal operations.
Impact Tested "JR" designation guarantees impact toughness at room temperature (20°C). Ensures structural reliability under dynamic loads.
Versatility Available in a wide range of plates, bars, and structural sections. Flexible design options for mechanical engineers.

Technical Parameters & Material Standards

Understanding where S275 fits in the EN structural steel hierarchy:
Grade Category Specification (EN 10025) Characteristics & Ideal Uses
S275JR Material No. 1.0044 Characteristics: The extensive "Middle Ground" structural steel. Good tensile strength, ductility, and welding properties. Surface usually has mill scale.
Uses: Structural beams, mining equipment parts, transmission towers, vehicle chassis.
Equivalent Grades ASTM A572 Gr 42 / E 28-2 Characteristics: Global equivalents offering similar yield strengths (~42 ksi).
Uses: General heavy industry and construction.

CNC Machining Guidelines for S275JR

  • Scale Management: As a hot-rolled steel, S275JR comes with a hard surface scale. We use face mills with tough inserts to remove this layer first to prevent chipping of finishing tools.
  • Weldments: When machining welded S275JR frames, we prioritize "referencing" to ensure the machined features align perfectly with the welded structure.
  • Coolant: Flood coolant is used to control heat and wash away chips, especially when drilling deep holes in thick plates.
  • Tapping: We use spiral point taps for through-holes to push chips forward, ensuring strong threads in this ductile material.

Application Scenarios

  • Construction: Brackets for bridges, structural base plates, roof trusses.
  • Automotive: Truck chassis rails, suspension support arms, trailer frames.
  • Energy: Pylons, pipeline supports, power plant structural elements.
  • Material Handling: Conveyor frames, crane components, lifting beams.

Physical Properties Table

Comparison: S275JR vs S235JR (The Strength Step-Up):
Property S275JR S235JR Unit
Yield Strength 275 (Min) 235 (Min) MPa
Tensile Strength 410 - 560 360 - 510 MPa
Elongation 22 26 %
Impact Strength 27J @ 20°C 27J @ 20°C -
Density 7.85 7.85 g/cm³
Weldability Excellent Excellent -
