Hastelloy C276 CNC Machining: The Ultimate Corrosion Resistant Alloy
When industrial processes involve highly aggressive chemical environments where standard stainless steels rapidly degrade, Hastelloy C276 provides the ultimate line of defense. Known technically as Alloy C276, this Nickel-Molybdenum-Chromium superalloy enhanced with tungsten is universally recognized for its unparalleled resistance to localized corrosion, pitting, and stress-corrosion cracking. At JUCHENG, we excel in the precision CNC machining of this formidable material. We routinely transform solid Hastelloy billets into critical fluid handling components, reactor vessel fittings, and high-pressure valves, ensuring your systems operate safely and continuously in the most severe chemical processing and pollution control applications.

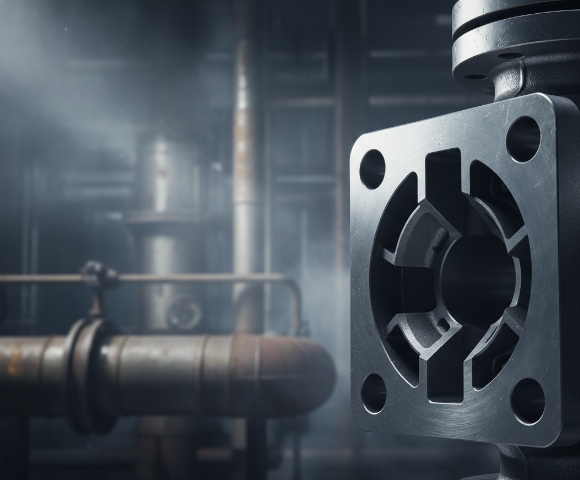

Hastelloy C276

JUCHENG's Alloy C276 Machining Capabilities

Hastelloy C276 is characterized by its high shear strength and rapid work-hardening nature, making it exceptionally challenging to machine. We overcome these barriers through advanced manufacturing protocols:
  • Heavy-Duty CNC Milling & Turning: We utilize ultra-rigid machine tools with geared spindles to provide the high torque at low RPMs necessary to shear through Alloy C276 without inducing vibration or chatter.
  • Specialized Insert Technology: Standard cutting tools fail rapidly against this superalloy. We employ specific positive-rake carbide inserts and ceramic tooling designed to shear the metal cleanly and evacuate heat effectively.
  • Wire EDM for Complex Profiles: For deep splines, sharp internal corners, or intricate flow paths that are too abrasive for standard end mills, we integrate precision Wire EDM and Sinker EDM processes to achieve micron-level accuracy.
  • Surface Integrity Protection: We meticulously control cutting temperatures to prevent surface metallurgical damage, ensuring the finished part retains its full corrosion-resistant properties.
Hastelloy C276

Advantages of CNC Machining Hastelloy C276

Advantage Detailed Description Key Benefit
Ultimate Chemical Resistance Outstanding resistance to a wide variety of chemical process environments, including strong oxidizers like ferric and cupric chlorides, hot contaminated media (organic and inorganic), chlorine, and formic/acetic acids. The gold standard for chemical processing equipment, preventing catastrophic system failures and leaks.
Pitting & Crevice Corrosion Immunity High molybdenum and tungsten content imparts excellent resistance to localized corrosion. Ensures long lifespan in stagnant or slow-moving fluid applications.
Stress-Corrosion Cracking Resistance The high nickel content makes the alloy virtually immune to chloride-induced stress-corrosion cracking. Highly reliable in high-pressure, chloride-rich environments like deep-sea offshore platforms.
Excellent Weldability Can be welded by most common methods without the need for post-weld heat treatment to maintain its corrosion resistance. Ideal for complex, multi-part fabricated assemblies and pressure vessels.
High Temperature Stability Retains excellent mechanical strength and oxidation resistance at elevated temperatures. Suitable for hot-section industrial components and flue gas desulfurization systems.

Technical Parameters & Material Conditions

We process Hastelloy C276 tailored to stringent industrial standards:
Grade Category Specification Characteristics & Ideal Uses
Alloy C276 (UNS N10276) ASTM B574 (Rod/Bar) Characteristics: Typically supplied in the solution-annealed condition. Offers maximum ductility and corrosion resistance. It is tough, ductile, and highly resistant to aggressive media.<br>Uses: Pump shafts, valve stems, mechanical seals, and precision machined fittings for the chemical industry.
Equivalent Standards DIN 2.4819 / NiMo16Cr15W Characteristics: European standard equivalent, ensuring global compliance for multi-national engineering projects.<br>Uses: Flue gas desulfurization (FGD) components, pharmaceutical processing parts.

CNC Machining Guidelines for Hastelloy C276

  • Continuous Cutting: Tool dwelling or pausing in the cut is strictly prohibited. The tool must constantly advance; otherwise, the surface work-hardens instantly, causing immediate catastrophic tool failure on the next pass.
  • Low Speeds, High Feeds: To manage the immense heat generation and work-hardening, we program our CNC centers with low surface speeds (RPM) but heavy, constant feed rates to stay under the hardened layer.
  • Premium Coolant: Copious amounts of high-quality, water-based, sulfur-free coolant must be blasted directly at the cutting zone to provide lubrication and flush away the tough, stringy chips.
  • Rigid Workholding: The high cutting forces required to shear C276 mean that the workpiece must be clamped with extreme rigidity. Thin-walled parts require custom-machined soft jaws to prevent distortion during cutting.

Application Scenarios

  • Chemical Processing: Reactor vessels, heat exchangers, evaporators, fluid manifolds, and high-pressure chemical valves.
  • Pollution Control: Flue gas desulfurization (FGD) systems, scrubbers, dampers, and stack gas re-heaters in power plants.
  • Pulp and Paper Production: Digesters, bleach plants, and equipment exposed to aggressive bleaching chemicals like chlorine dioxide.
  • Waste Treatment: Incineration equipment components and severe waste processing fluid handlers.
  • Pharmaceuticals: Reaction vessels and ultra-clean fluid handling systems requiring absolute chemical inertness.

Physical Properties Table

Typical mechanical properties (Solution Annealed condition):
Property Hastelloy C276 (UNS N10276) Unit
Density 8.89 g/cm³
Tensile Strength (Ultimate) 790 (Minimum) MPa
Yield Strength 355 (Minimum) MPa
Elongation at Break 40 %
Hardness (Rockwell B) ~ 90 HRB
CorroMelting Pointsion Resistance 1325 - 1370 °C
Machinability Rating Very Difficult (~15-20%) (Ref: B1112=100%)
