Titanium CNC Machining Material
When a project demands the ultimate balance of lightweight performance and extreme strength, Titanium is the undisputed material of choice. Often described as the "strategic metal" of the aerospace and medical industries, it offers the strength of steel at nearly half the weight, combined with immunity to corrosion in almost any environment. However, Titanium is also notoriously difficult to shape due to its low thermal conductivity and tendency to work-harden. JUCHENG specializes in overcoming these manufacturing challenges. We deliver precision Titanium CNC machining services, producing mission-critical components that perform reliably in the harshest conditions on Earth—and above it.

Mastering the Art of Machining Titanium

Processing Titanium alloys requires far more than just standard CNC equipment; it demands a deep understanding of thermal dynamics and advanced tool management. At JUCHENG, we have optimized our workflow to tame this tough material:
  • Combating Heat Buildup: Titanium doesn't dissipate heat well; instead, the heat concentrates at the cutting edge. We utilize high-pressure coolant systems and specialized tool paths to evacuate heat instantly, preventing tool failure and ensuring dimensional stability.
  • Eliminating Work Hardening: Our engineers program specific "low RPM, high feed" strategies to ensure the tool constantly cuts beneath the work-hardened layer, maintaining surface integrity.
  • Medical & Aerospace Standards: Whether it is Grade 5 (Ti-6Al-4V) for structural brackets or Grade 2 for chemical processing, we machine parts to exact specifications, ensuring surfaces are free from "alpha case" (a brittle oxygen-enriched layer).
  • Rigid Setup: We employ heavy-duty 5-axis machines with high torque to cut through Titanium smoothly, eliminating vibration that could compromise surface finish.

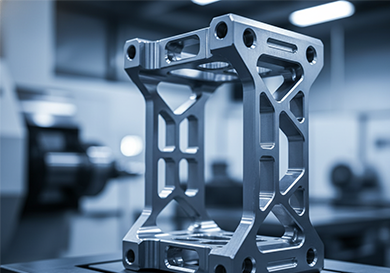

Titanium Grade 5 aerospace bracket

Advantages of CNC Machining Titanium


Advantage Detailed Description Key Benefit
Highest Strength-to-Weight Titanium is roughly 45% lighter than steel yet offers comparable tensile strength. It is twice as strong as aluminum. Critical for aerospace, racing, and performance applications where every gram of weight savings counts.
Biocompatibility It is non-toxic, non-magnetic, and osseointegrates (bonds) with human bone. The #1 material for medical implants, bone screws, and surgical tools.
Exceptional Corrosion Resistance Immune to salt water, chlorine, and most acids due to a stable oxide film. Ideal for subsea equipment, desalination plants, and chemical processing hardware.
High Heat Resistance Retains its mechanical strength at temperatures up to 600°C (unlike aluminum which softens). Suitable for jet engine components, exhaust systems, and high-speed airframes.
Low Thermal Expansion Expands and contracts very little with temperature changes. Maintains tight tolerances in environments with extreme thermal cycling.

Technical Parameters & Material Properties

We machine the most critical grades of Titanium used in high-tech industries:

Grade Category Standard Detailed Characteristics Ideal Applications
Titanium Grade 5 Ti-6Al-4V The "workhorse" alloy, accounting for 50% of global titanium usage. It is heat treatable and offers a phenomenal combination of strength, toughness, and corrosion resistance. Difficult to machine. Aircraft turbines, structural aerospace components, high-performance engine valves, sports equipment.
Titanium Grade 2 Commercially Pure (CP) Unalloyed titanium (99% pure). It has lower strength than Grade 5 but offers superior corrosion resistance and formability. Easier to machine. Chemical processing equipment, heat exchangers, medical industry, marine parts, anodizing racks.
Titanium Grade 23 Ti-6Al-4V ELI Extra Low Interstitial (ELI) version of Grade 5. Higher purity results in better fracture toughness and biocompatibility. Medical implants, surgical staples, orthopedic pins and screws, cryogenic components.

CNC Machining Guidelines for Titanium

  • Tooling Strategy: We use sharp, coated carbide tools with high relief angles. Tools are changed frequently before they dull, as a dull tool creates friction and immediate work hardening.
  • Coolant is Critical: We apply high-volume flood coolant directly to the cutting zone. This is non-negotiable for titanium to prevent the chips from welding to the tool.
  • Peck Drilling: When drilling deep holes, we use a peck cycle to break chips and allow coolant to reach the tip, preventing drill breakage.
  • Safety Protocols: Titanium chips can be flammable. Our facility maintains strict fire safety protocols during machining operations.

Application Scenarios

Titanium is used where performance justifies the cost:
  • Medical: Spinal cages, dental implants, bone plates, surgical instrumentation.
  • Aerospace: Jet engine blades, landing gear structures, hydraulic systems, fasteners.
  • Automotive: Connecting rods, turbocharger wheels, exhaust systems (Race cars).
  • Marine: Propeller shafts, rigging, subsea robot components (ROV).
  • Energy: Downhole drilling tools, geothermal well components.

Physical Properties Table

Property Titanium Grade 2 (CP) Titanium Grade 5 (Ti-6Al-4V) Unit
Density 4.51 4.43 g/cm³
Tensile Strength 345 950 MPa
Yield Strength 275 880 MPa
Modulus of Elasticity 105 114 GPa
Thermal Conductivity 16.4 6.7 W/m-K
Hardness (Rockwell) B80 C36 -
Melting Point 1660 1604 °C
