Machining Titanium Grade 2: Tips for Pure Ti Parts
Views: 1 Author: Allen Xiao Publish Time: 2026-01-05 Origin: Site
When most engineers hear "Titanium," they immediately think of the aerospace industry and the high-strength alloys used in jet engines. However, there is a quieter, unsung hero in the titanium family that keeps the chemical and marine industries running: Grade 2. It does not boast the extreme hardness of Grade 5, but it possesses a corrosion resistance that is virtually unmatched by any other metal in its price range.
Yet, for the manufacturing floor, machining titanium grade 2 presents a unique paradox. It is softer than its alloyed cousins, which leads many machinists to underestimate it. This mistake creates a sticky, gummy nightmare that ruins tools and scraps parts. As a premier provider of titanium cnc machining services, Jucheng Precision understands that Grade 2 requires a delicate balance of sharp tooling and aggressive feed rates to prevent the material from fighting back.
If you are designing components for saltwater environments or acid processing, Grade 2 is likely your material of choice. This guide dives into the realities of shaping this "Commercially Pure" metal and how we ensure your parts remain contamination-free.
Titanium grades are generally split into two categories: alloys and Commercially Pure (CP). Grade 2 sits comfortably in the middle of the CP spectrum. It offers a yield strength of around 275 MPa (40 ksi), which is comparable to structural steel, but with nearly half the weight.
From a metallurgical perspective, Grade 2 possesses an "Alpha" crystal structure. Unlike Grade 5, it cannot be heat-treated to increase its strength. Its superpower lies in its ductility. It can be cold-formed, bent, and welded much more easily than high-strength alloys. This makes it the go-to material for fabricating extensive piping systems, large tanks, and intricate brackets that require forming operations after machining.
Navigating the "Gummy" Nature of CP Ti
The term "soft" can be misleading in machining. Grade 2 is soft in terms of hardness, but it is incredibly tough and ductile. When a cutting tool engages the workpiece, the material does not want to fracture into clean chips. Instead, it wants to smear and flow.

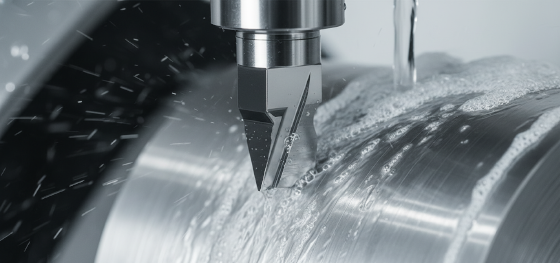

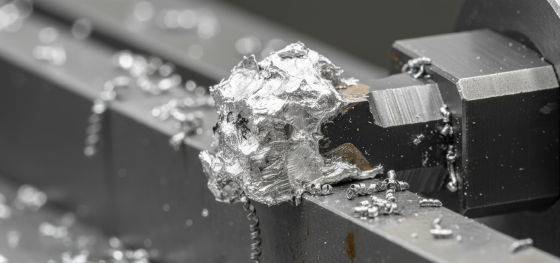

This behavior leads to a phenomenon known as "Galling" or Built-Up Edge (BUE). The titanium literally pressure-welds itself to the cutting edge of the tool. Once this happens, the tool is no longer cutting; it is rubbing. This dramatically increases cutting forces and destroys the surface finish of the part. To combat this during machining titanium grade 2, we avoid coated tools that have a rough surface texture. We prefer polished, uncoated carbide inserts or specialized aluminum-titanium-nitride (AlTiN) coatings that offer high lubricity to keep the chips sliding, not sticking.
Heat Management: The Silent Tool Killer
Titanium is a notoriously poor conductor of heat. When you machine steel or aluminum, the heat generated by the cutting action is mostly carried away by the ejected chip. Titanium is different. It acts like a heat insulator.
Because the heat doesn't enter the chip or the workpiece, up to 80% of the thermal energy concentrates squarely on the cutting edge of the tool. If not managed, this intense localized heat will cause the carbide to crater and fail within seconds. At Jucheng Precision, we solve this with high-pressure coolant strategies. We flood the cutting zone with high-volume coolant to physically force the heat away from the tool-workpiece interface. This is not just about cooling; it is about fire prevention, as fine titanium fines can be flammable under extreme heat.
Don't Dwell: The "Feed or Fail" Rule
Titanium has a unique reaction to stress: Work Hardening. If you allow a tool to dwell in one spot, or if you feed the tool too slowly, the pressure and heat will instantly harden the surface of the material right in front of the cutter.
The next time the cutting flute comes around, it is trying to cut through a hardened skin rather than the base metal. This destroys tool life. The golden rule we follow is "Feed or Flee." We maintain a constant, aggressive chip load. We never let the tool rub. When entering or exiting a cut, we use ramp-in strategies rather than plunging directly, ensuring the tool is always shearing fresh metal. This aggressive approach is counter-intuitive for machinists used to "babying" precision parts, but it is essential for titanium success.
Where Grade 2 Survives: Critical Applications
Despite the machining challenges, the effort is worth it because Grade 2 survives where other metals vanish. Its oxide film regenerates instantly in the presence of oxygen, making it immune to saltwater corrosion.

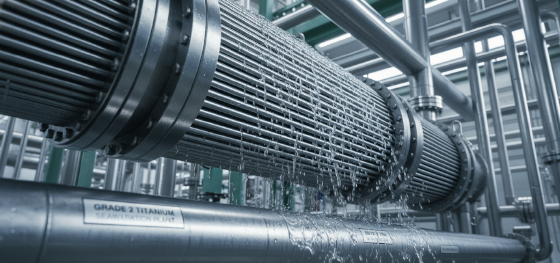

You will find Jucheng's Grade 2 components in: Heat Exchangers: The material's ability to withstand chlorine and chlorides makes it standard for power plant condensers. Desalination Plants: Pumps, valves, and fittings that handle high-pressure seawater. Chemical Processing: Liners and agitators for reaction vessels dealing with oxidizing acids. Medical Instruments: While implants often use Grade 5 or Grade 23, Grade 2 is frequently used for surgical trays and non-load-bearing housing due to its biocompatibility.
The Purity Protocol at JUCHENG
For our chemical and medical clients, the material composition is not a suggestion; it is a mandate. A common risk in job shops is cross-contamination. If a tool that previously cut steel is used on titanium, it can embed microscopic iron particles into the titanium surface. These iron particles become rust points, destroying the corrosion resistance of the entire part.
Jucheng Precision implements a strict "Purity Protocol." We utilize dedicated tooling for our titanium runs. We verify every batch of raw material with handheld XRF spectrometers to differentiate Grade 2 from Grade 5 before a single chip is cut. When you order Grade 2 parts from us, you receive full material certification and the assurance that your parts remain chemically pure and ready for the harshest environments.
