Zinc Alloy CNC Machining Material
Zinc alloys, particularly the Zamak series, are traditionally synonymous with high-volume die casting. However, CNC machining Zinc is a critical process for product development. It bridges the gap between digital design and mass production by allowing engineers to create functional prototypes from solid Zinc stock without the high upfront cost and lead time of metal molds.
At JUCHENG, we machine solid Zinc blocks to simulate the exact weight, strength, and thermal properties of a final die-cast product. This process is essential for verifying fit, function, and aesthetics (especially plating feasibility) before committing to expensive hard tooling. Our facility handles common alloys like Zamak 3 and Zamak 5, delivering precise prototypes that look and feel exactly like the production part.

JUCHENG's Zinc Machining Capabilities

We provide specialized solutions for zinc prototyping and low-volume manufacturing:
  • Die-Cast Simulation: We machine parts from solid zinc plate/bar stock to replicate the physical properties of die-cast components. This allows for valid thermal and mechanical testing.
  • Superior Surface Finishing: Zinc is known for its ability to accept plating. We offer in-house polishing followed by Chrome, Nickel, or Gold Plating to achieve a Class-A cosmetic finish.
  • Tight Tolerances: Our CNC milling centers can hold tolerances of +/- 0.02mm, which is significantly tighter than typical "as-cast" tolerances, ensuring perfect assembly fit-checks.
  • Material Sourcing: We source high-quality Zamak alloy blocks to ensure the material composition matches your production intent.

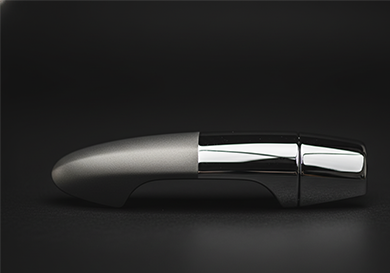

Zinc Alloy (Zamak 3) prototype

Advantages of CNC Machining Zinc


Advantage Detailed Description Key Benefit
High Density (Heavy Weight) Zinc has a density (6.6 g/cm³) similar to steel and much heavier than aluminum. Prototypes have a solid, premium "hand-feel," crucial for high-end consumer electronics and hardware.
Excellent Plating Ability Zinc is one of the easiest metals to electroplate. Ideal for verifying cosmetic finishes like mirror-chrome automotive trims or bathroom fixtures.
No Tooling Cost Machining is subtractive; no molds are required. Saves thousands of dollars and weeks of time during the design iteration phase.
Good Strength & Rigidity Stronger and more rigid than reinforced plastics; good impact resistance. Suitable for functional testing of structural brackets and housings.
EMI/RFI Shielding Excellent electrical conductivity and shielding properties. Protects sensitive electronics from electromagnetic interference.

Technical Parameters & Material Properties

The most common Zinc alloys used for machining prototypes are:

Grade Category Standard Name Detailed Characteristics Ideal Applications
Zamak 3 Zn-4Al The industry standard for zinc die casting. It offers the best balance of physical and mechanical properties, long-term dimensional stability, and excellent finishing characteristics. Automotive components, housings, hand tools, safety razors, interior trim.
Zamak 5 Zn-4Al-1Cu Contains more copper (~1%) than Zamak 3. This addition significantly increases tensile strength and hardness, though it slightly reduces ductility. Better creep resistance. Automotive parts requiring higher strength, hardware, wheel balancing weights.
ZA-8 Zinc-Aluminum Contains higher aluminum content (~8.4%). Offers higher strength and hardness than Zamak alloys. Excellent bearing properties. Bushings, wear plates, decorative hardware requiring sharp detail.
ZA-12 Zinc-Aluminum Contains ~11% aluminum. The best gravity casting alloy but also machinable. Offers excellent wear resistance and strength comparable to cast iron. Heavy-duty bearing surfaces, hydraulic components.

NC Machining Guidelines for Zinc

Machining zinc is generally efficient, but specific care is needed to maintain surface quality:
  • Chip Control: Zinc produces short, brittle chips similar to brass. They evacuate easily but can be abrasive. We use high-pressure air or coolant to keep the cutting zone clear.
  • Thermal Management: Although zinc melts at a relatively low temperature (~385°C), machining it is usually cool. However, we use water-soluble coolant to prevent any thermal expansion and to improve the surface finish for plating.
  • Tooling: Standard uncoated carbide tools work well. We ensure tools are extremely sharp to prevent "smearing" the material surface, which can cause defects in subsequent plating steps.
  • Post-Machining: CNC machined zinc surfaces can be easily polished to a high luster or bead blasted for a uniform matte texture. We handle parts carefully to avoid dents as zinc is softer than steel.

Application Scenarios

  • Automotive: Interior chrome handles, logos/emblems, rearview mirror mounts, seat belt mechanisms.
  • Consumer Electronics: Weighted bases for microphones/speakers, heavy-duty housing frames, heat sinks.
  • Hardware: Door locks, hinges, bathroom faucets, cabinet handles.
  • Industrial: Gears, pinions, structural brackets, and EMI shielding enclosures.

Physical Properties Table

Property Zamak 3 Zamak 5 Unit
Density 6.60 6.60 g/cm³
Tensile Strength 280 330 MPa
Yield Strength 220 260 MPa
Melting Point 385 385 °C
Hardness (Rockwell) 82 91 HB
Impact Strength 56 65 J
Thermal Conductivity 113 109 W/m-K
