Observing the seamless surface of a 2-meter long medical housing in [2026] reveals the hidden mechanical mastery behind the reaction injection molding process: the quality of the part is decided in a fraction of a second inside the mixing chamber. If the chemical components are not homogenized at the molecular level before they enter the mold, the resulting part will suffer from "soft spots," erratic curing, and localized structural failure. Mastering RIM mixing head technology is the definitive challenge for manufacturers who need to balance high-volume output with the uncompromising precision of industrial-grade thermoset polymers.

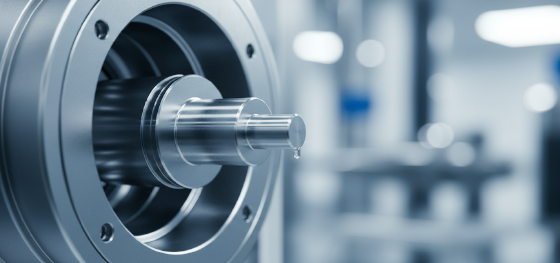

The mixing head is the most complex assembly within a RIM system, requiring sub-micron tolerances and extreme wear resistance to handle the abrasive nature of liquid isocyanates and polyols. Standard job shops often struggle to maintain these machines, leading to ratio drift and downtime. Jucheng Precision addresses these critical equipment hurdles by manufacturing our own high-performance Precision CNC Parts for our fleet of mixing heads. 我们 deliver a level of chemical stability that ensures every enclosure, fender, and chassis component possesses isotropic strength from the first shot to the last.
Operating within the Shenzhen precision manufacturing hub, JUCHENG serves as the high-tier equipment and process partner for global AgTech and MedTech OEMs. We transform raw liquid chemistry into validated structural hardware by controlling the turbulence and pressure within the heart of the machine. This guide explores the essential impingement mixing mechanics, self-cleaning protocols, and ratio-precision standards required for mastering RIM mixing head technology to ensure your large-scale innovation survives the most rigorous field trials.
content:
Impingement Mixing: How to Achieve Molecular Homogenization?
Technical Data: Comparing High-Pressure Mixing Head Standards
Self-Cleaning Logic: Why Piston Design Beats Solvent Wash?
Ratio Precision: Managing the Isocyanate Index in Real-Time
JUCHENG Excellence: The Shenzhen Hub for Advanced RIM Hardware
FAQ: Hardware Specs and Maintenance for RIM Mixing Heads
Impingement Mixing: How to Achieve Molecular Homogenization?

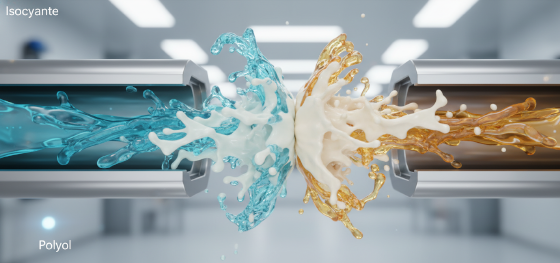

Molecular homogenization in RIM mixing head technology is achieved through kinetic energy rather than mechanical stirring. Inside the head, two high-pressure streams—isocyanate (Side A) and polyol (Side B)—are accelerated through micro-orifices to velocities exceeding 150 meters per second. When these streams collide at 90 degrees in the impingement zone, the resulting turbulence creates a Reynolds number high enough to ensure total mixing in less than 0.005 seconds. JUCHENG utilizes 5-axis CNC to machine these nozzles with +/- 0.002mm concentricity, ensuring the liquid jets remain perfectly centered for a zero-streak chemical reaction.
What happens if the impingement pressure is too low?
The liquids will experience laminar flow instead of turbulence, leading to "marbling" in the part and localized soft spots that never reach full Shore D hardness.
Pressure stability is the second pillar of impingement logic. During a 20-second injection cycle for a large diagnostic console shell, the pressure must remain constant within 1%. Any fluctuation in pressure changes the Reynolds number, which in turn changes the mix quality. JUCHENG utilizes high-frequency hydraulic feedback loops and nitrogen-charged accumulators to stabilize these streams. This ensures that the polymer matrix is chemically uniform across the entire 1.5-meter span of the part, providing the predictable impact resistance required for [2026] medical hardware.
Orifice geometry dictates the "Mixing Efficiency" of the head. JUCHENG’s engineering team utilizes fluid dynamic simulations to optimize the taper and length of the injection nozzles. By utilizing hardened stainless steels and specialized carbide inserts, we prevent the "Orifice Erosion" that plagues lower-tier manufacturers. A worn orifice increases the stream diameter, dropping the velocity and ruining the impingement quality. Our commitment to high-precision equipment ensures that your robot fenders and medical shells possess the highest possible degree of cross-linking density.
Technical Data: Comparing High-Pressure Mixing Head Standards
Selecting the right mixing head standards determines the cycle-time and yield of your pilot production run. For large-scale enclosures, the "Flow-Rate to Accuracy" ratio is the primary performance metric. Jucheng Precision provides technical design reviews to ensure our machinery matches the complexity of your CAD. The following table compares the essential operational variables of high-end RIM mixing head technology for the [2026] market.
| Feature | Standard RIM Head | JUCHENG High-Tier Head | Engineering Impact |
| Nozzle Precision | +/- 0.05mm | +/- 0.005mm | Eliminates Chemical Streaking |
| Piston Tolerance | G6 (Standard) | h5 (Sub-Micron) | Zero-Leak Self-Cleaning |
| Material Compatibility | Pure PU Only | Reinforced & Flame Retardant | Supports RRIM Glass Fibers |
| Cleaning Method | Solvent Wash | Mechanical Piston (Dry) | 100% Material Purity |
The move to mechanical self-cleaning is the "Green Revolution" of RIM. Because JUCHENG utilizes high-tolerance pistons to purge the chamber, we eliminate the need for hazardous solvent flushes after every shot. This not only reduces environmental waste in our Shenzhen hub but also ensures that no solvent residue can contaminate the next part. For medical-grade hardware where material purity is a regulatory requirement, this mechanical cleaning protocol is the only way to guarantee USP Class VI compliance across a 1,000-unit Beta trial.
Self-Cleaning Logic: Why Piston Design Beats Solvent Wash?

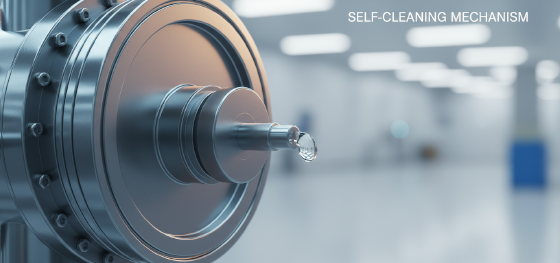

Geometric stability in RIM mixing head technology is maintained through the "Scraper-Piston" design. At the end of each injection, a high-strength hydraulic piston moves forward through the mixing chamber with a clearance of only 5 microns. This action physically pushes all remaining liquid polymer into the mold, leaving the chamber empty and clean. JUCHENG machines these pistons from M2 high-speed steel and grinds them to a mirror-finish to prevent any chemical "clinging." This dry-cleaning method allows for consistent shot-to-shot performance, a critical factor for large-scale enclosures where even a tiny bit of cured residue can cause a visible surface defect in the next cycle.
How to prevent piston seizure at high speeds?
Utilize DLC (Diamond-Like Carbon) coatings on the piston surface to reduce friction and prevent the "Cold-Welding" effect during rapid reciprocating cycles.

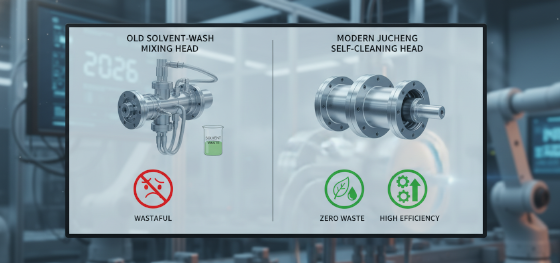

Solvent wash heads, while cheaper to manufacture, introduce "Chemical Noise" into the process. Traces of cleaning solvent can mix with the polyol, lowering the viscosity and changing the reaction speed. This leads to unpredictable shrinkage and warpage in the final part. JUCHENG’s piston-based RIM mixing head technology ensures that the chemical ratio arriving in the mold is exactly what was intended in the lab. This "Chemical Fidelity" is what allows our prototypes to match the mechanical performance of mass-produced hardware, ensuring your field data is 100% valid for certification.
Wear-compensation is the final layer of the self-cleaning logic. As the piston and chamber walls wear over thousands of cycles, the 5-micron gap can increase. JUCHENG’s preventative maintenance schedule includes sub-micron borescope inspections and real-time hydraulic pressure monitoring. If the "Clearance Gap" exceeds the allowed threshold, the head is immediately refurbished in our precision machining bay. By delivering hardware from "Always-Calibrated" machines, JUCHENG ensures that your industrial robot parts and medical shells possess the pristine surface finish required for high-gloss automotive painting.
Ratio Precision: Managing the Isocyanate Index in Real-Time

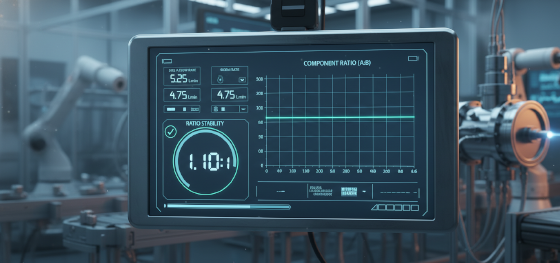

The mechanical strength of a polyurethane part is a function of its "Isocyanate Index"—the exact ratio of Side A to Side B. In RIM mixing head technology, maintaining a 1:1 or 1:2 ratio with 99.9% accuracy is the hallmark of a high-tier provider. JUCHENG utilizes mass-flow meters and closed-loop servo-controlled pumps to manage these ratios in real-time. If the system detects a deviation of more than 0.5% during the injection of an oversized tractor hood, the mix-head automatically shuts down, preventing the production of a "Sub-Standard" part that could fail under impact in the field.
Can the ratio be adjusted during the cycle?
No. The ratio must remain constant to ensure a uniform molecular lattice, but it can be "Tuned" between batches to adjust the final hardness of the robot part.
Additive integration occurs within the B-side polyol stream. To achieve flame retardancy or UV stability, JUCHENG integrates specialized additives directly into the mix-head manifold. Our 5-axis machined manifolds feature internal static mixers that ensure these additives are homogenized before they even reach the impingement zone. This "Dual-Stage Mixing" ensures that your medical housings meet the UL94 V-0 safety rating without creating localized brittle zones, providing a level of safety that is essential for hospital and data-center robotics in [2026].
Temperature control of the liquid streams is the final variable in ratio precision. As the chemicals flow from the tanks to the mixing head, their viscosity changes with temperature. JUCHENG utilizes heat-traced hoses and thermal sensors at the very entrance of the mixing chamber. By stabilizing the liquid temperature within +/- 1 degree, we ensure that the "Fluid Resistance" of both streams is identical, allowing for perfectly balanced impingement. This level of technical oversight is what defines JUCHENG as the preferred partner for the world's most aggressive prototype robot challenges where material consistency is non-negotiable.
JUCHENG Excellence: The Shenzhen Hub for Advanced RIM Hardware
Dominating the [2026] large-format hardware market requires a partner that doesn't just use machines, but masters them. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering high-tolerance RIM components and structural industrial robot parts with industry-leading speed. We provide a "Bridge to Production" that allows you to move from a single hand-poured prototype to a commercial deployment of 5,000 units with consistent chemical and dimensional quality.
Integrating your structural design with JUCHENG’s expertise ensures that your hardware survives the "First-Field Contact" and moves into mass adoption. We offer comprehensive DFM reviews within 24 hours, identifying potential mix-ratios or thermal-expansion risks in your design before they become field failures. Whether you are building an autonomous vineyard scout or a multi-part MRI housing, Jucheng Precision provides the rigid, precise, and *chemically optimized* foundations that keep your innovation moving through the high-stakes cycles and the years of hard labor.
Our facility is equipped with 150+ CNC machines and dedicated high-pressure RIM assembly cells, allowing us to manage the entire hardware lifecycle in one location. We manage the complexity of impingement mixing and hydraulic self-cleaning so your engineering team can focus on the system integration and the AI. By combining Shenzhen's speed with industrial-grade material verification and global ISO 13485 standards, JUCHENG remains the preferred partner for the world's most aggressive MedTech hardware challenges. Contact us today to start your next project.
FAQ: Hardware Specs and Maintenance for RIM Mixing Heads
What is the maximum flow rate of a JUCHENG RIM head?
We regularly operate heads with flow rates up to 10kg per second for massive structural panels.
How often is the mixing head refurbished?
Heads are inspected every 5,000 shots and refurbished if internal clearances deviate by more than 5 microns.
Can RIM heads handle glass-fiber reinforced resins?
Yes. We utilize specialized hardened steel nozzles and abrasion-resistant pistons for RRIM applications.
Does JUCHENG provide the mixing data for validation?
Yes. We provide a full chemical ratio and pressure log for every production batch.
What is the benefit of a dry self-cleaning head?
It eliminates solvent waste and prevents material contamination, ensuring 100% molecular purity of the part.
Chemical streaks and soft spots are absolute innovation killers for large-scale robotics. Partnering with Jucheng Precision ensures that your functional iterations are built with the precision-balanced reaction injection molding process and specialized RIM mixing head technology the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the unyielding foundation your autonomous fleet requires.
