How to Add Multi-Color Text to Your 3D Prints: Techniques and Methods

3D printing offers endless creative possibilities, but adding multi-color text to your prints can be challenging. Whether you're labeling parts, creating decorative designs, or enhancing readability, there are several techniques to achieve vibrant, multi-colored text in your 3D-printed objects. This guide explores the best methods for integrating different colored text into your 3D prints.

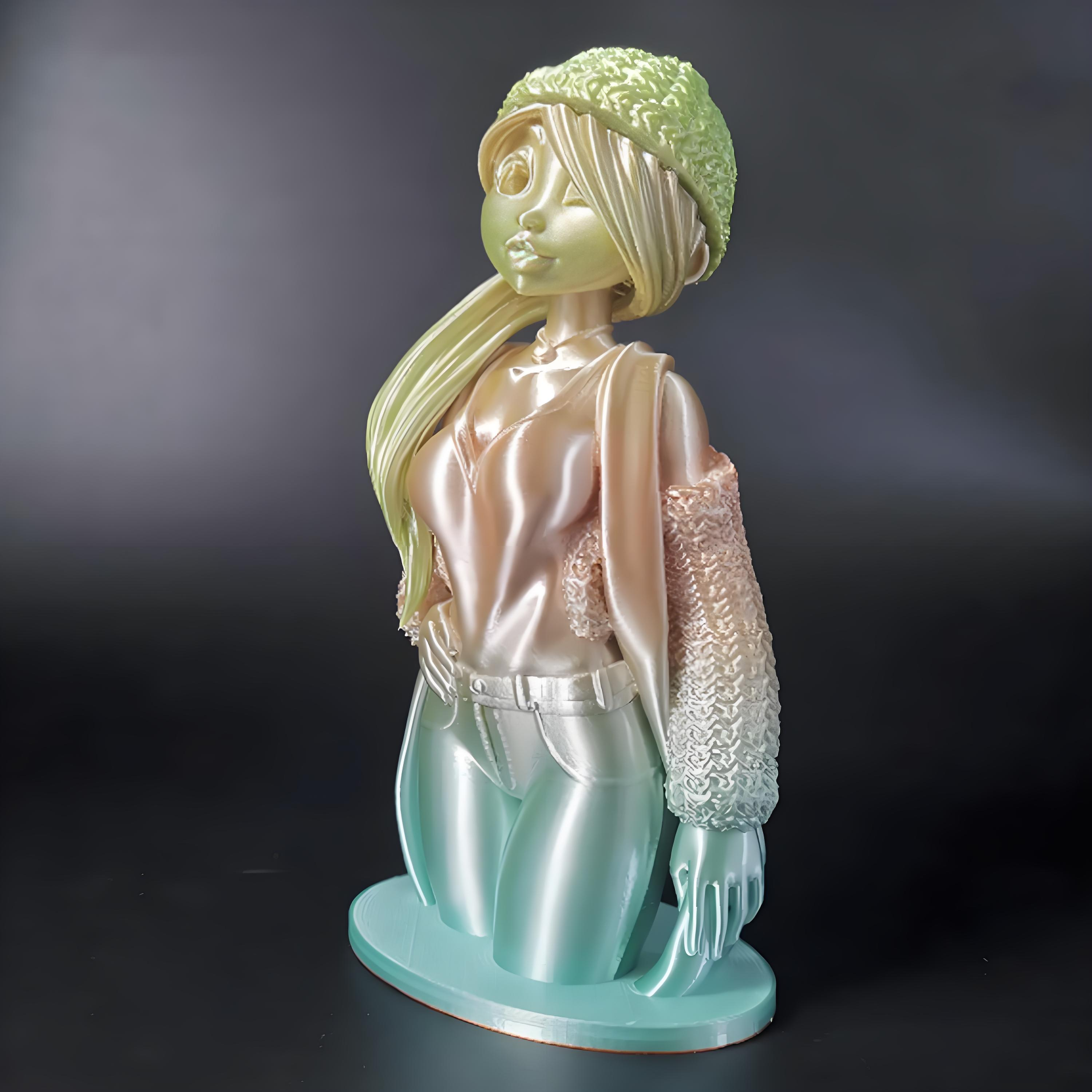

Multi color 3D printing products


1. Using Multi-Material 3D Printing

Some advanced 3D printers, such as those with dual or multi-extruder setups, can print with multiple filaments simultaneously. This allows for seamless integration of different colored text into your model.

Steps:
Design Your Model: Use CAD software (e.g., Fusion 360, Tinkercad) to create the base model and text.
Assign Colors: In your slicer (e.g., PrusaSlicer, Ultimaker Cura), assign different extruders to the text and main body.
Load Filaments: Ensure each extruder has the correct colored filament.
Print: The printer will automatically switch filaments to produce multi-color text.

Pros:
High precision and clean color transitions.
No post-processing required.

Cons:
Requires a multi-extruder printer.
More expensive due to additional hardware.

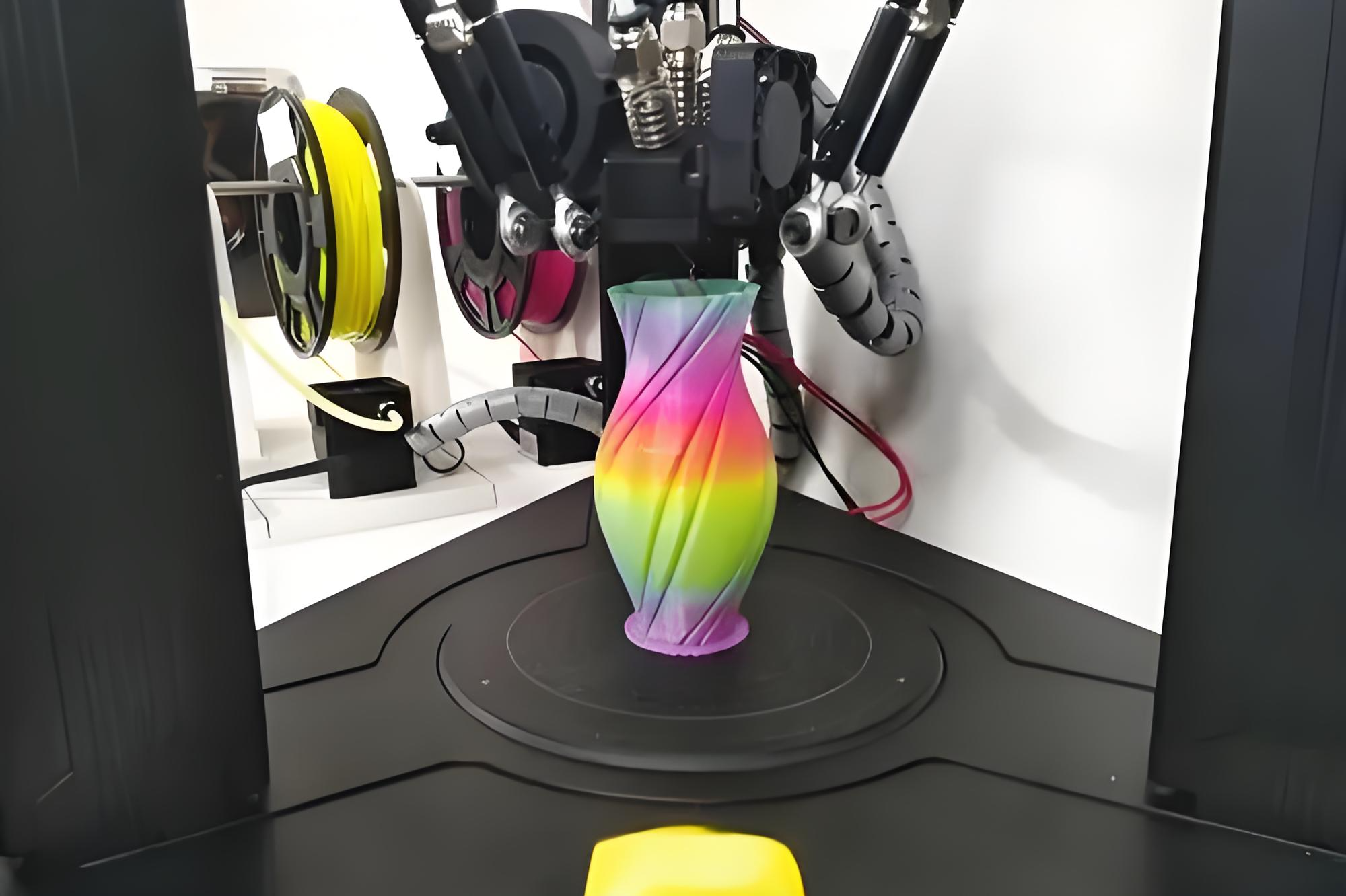

Multi color 3D printing process


2. Pause-and-Change Filament Method

If you have a single-extruder printer, you can manually pause the print and swap filaments to achieve multi-color text.

Steps:
Slice Your Model: In your slicer, add a pause command (M600 in G-code) at the layer where the text begins.
Start Printing: Once the printer pauses, manually change the filament to the desired color.
Resume Printing: The printer will continue with the new color.

Pros:
Works with most FDM printers.
Low-cost solution.

Cons:
Requires precise timing.
Risk of layer misalignment if not done carefully.

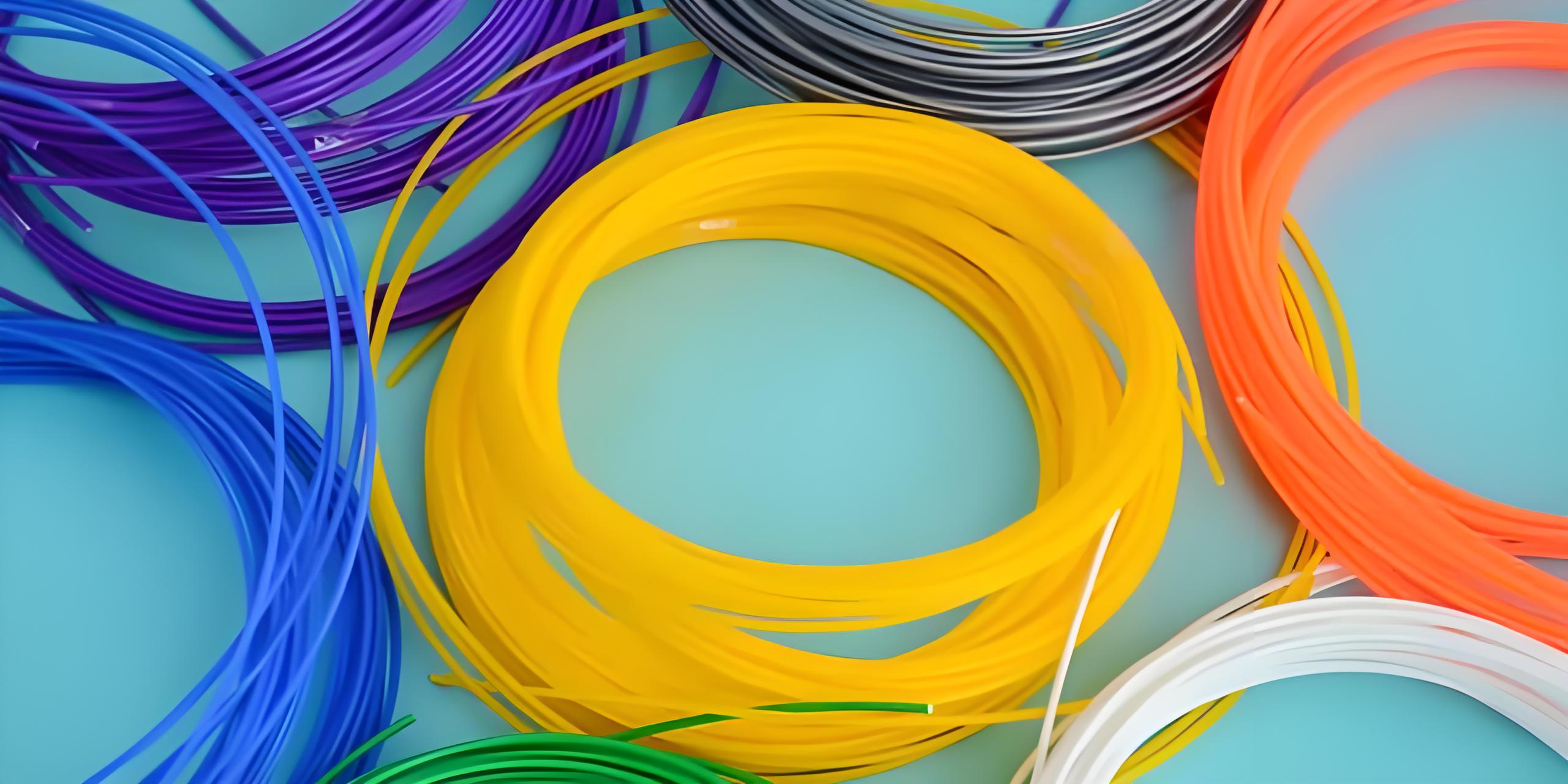

Multi color 3D printing materials


3. Post-Printing Coloring Techniques

If multi-material printing isn’t an option, you can add color after printing using these methods:

A. Painting
Use acrylic or enamel paints to manually color the text.
For precision, apply masking tape around the text before painting.

B. Dyeing (for Nylon Prints)
Submerge the printed part in fabric dye for a permanent color change.

C. Inlaying with Colored Resin or Epoxy
Engrave text into the print and fill it with colored resin for a smooth finish.

4. Using Color-Changing Filaments

Some specialty filaments (e.g., temperature-sensitive or UV-reactive) can create dynamic color effects without manual intervention.

Adding multi-color text to 3D prints can enhance functionality and aesthetics. Depending on your printer’s capabilities, you can use multi-material printing, manual filament swaps, or post-processing techniques to achieve the desired effect. Experiment with different methods to find the best solution for your project!
