What is Metal Injection Molding (MIM)?
At its core, MIM is a powder metallurgy process combining the shape-making capabilities of plastic injection molding with the strength and integrity of sintered metal. It transforms fine metal powders into solid, dense metal components with complex geometries that are difficult or impossible to achieve economically through machining, casting, or conventional powder metallurgy. The essence of the metal injection molding process lies in its multi-stage approach:

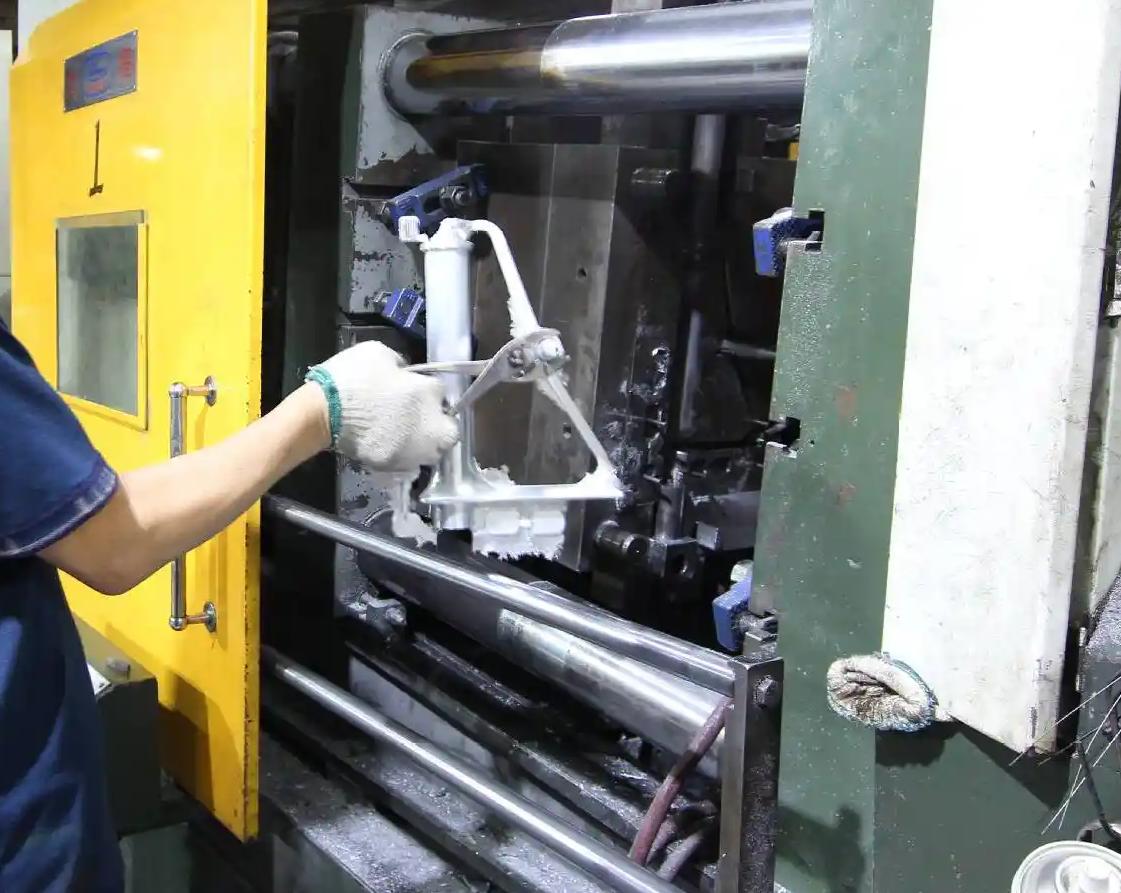

MIM vs. Die Casting: Choosing the Right Process
While both MIM and die casting produce net-shape metal parts, they differ fundamentally in capabilities and limitations:

Feature	Metal Injection Molding (MIM)	Die Casting
Process	Powder metallurgy (Sintering)	Molten metal forced into mold under pressure
Complexity	⭐⭐⭐⭐⭐ (Exceptional, true 3D complexity, thin walls)	⭐⭐⭐ (Good, but limited by flow/venting)
Material Options	Wide range (Stainless steels, tool steels, alloys)	Primarily non-ferrous (Zinc, Aluminum, Mg)
Surface Finish	Good (Requires finishing for high polish)	Excellent (As-cast)
Tolerance	Good (±0.3-0.5% typical)	Good to Very Good (±0.1-0.3% typical)
Part Size	Small to Medium (Typically < 100g, max ~250g)	Small to Very Large
Wall Thickness	Thin walls possible (down to ~0.5mm)	Thicker minimums often required (~1-1.5mm)
Internal Features	Excellent (Blind holes, undercuts readily achievable)	Limited by core pulls
Porosity	Very Low (95-99% dense)	Can be significant (gas entrapment)
Mechanical Props	Near wrought properties	Can be reduced by porosity
Cost Driver	High tooling cost, best for high volumes	High tooling cost, competitive at high vol



• Complexity: MIM excels at producing parts with extreme geometric complexity, including undercuts, thin walls (down to ~0.5mm), fine details, and integrated features (like gears or hinges) that are challenging or impossible for die casting due to molten metal flow limitations and die complexity/cost.
• Materials: Die casting is predominantly limited to lower-melting-point non-ferrous alloys (zinc, aluminum, magnesium). MIM offers a vastly broader metal injection molding materials palette, including various stainless steels (304L, 316L, 17-4PH, 420), tool steels, low-alloy steels, copper alloys, titanium, and even specialized alloys like Kovar or tungsten heavy alloys.
• Properties: MIM parts achieve near-wrought material density and mechanical properties after sintering. Die cast parts can suffer from porosity, which can reduce strength and ductility.
• Surface & Tolerance: Die casting typically provides a superior as-cast surface finish and can achieve slightly tighter tolerances directly from the mold. MIM parts require finishing for high polish and have slightly looser as-sintered tolerances (though often sufficient for many applications).
• Volume & Size: Both are suited for high volumes. MIM is generally more competitive for smaller, highly complex parts, while die casting handles larger components effectively.

Materials: The Building Blocks of MIM
The choice of metal injection molding materials is vast and critical to the part's function. Key material families include:

• Stainless Steels: By far the most common MIM materials. Grades like 316L (excellent corrosion resistance), 17-4PH (precipitation hardening for high strength), 304L, 410, and 440C (high hardness) dominate applications.
• Low-Alloy Steels: Such as Fe-2Ni or Fe-8Ni, offering good strength and hardenability at lower cost than stainless.
• Tool Steels: M2, T15, and others for high wear resistance and hardness in cutting tools, wear plates, and molds.
• Soft Magnetic Alloys: Pure Iron, Fe-50Ni (Permalloy), Fe-3Si for electromagnetic applications (solenoid cores, sensor parts).
• Copper & Copper Alloys: Pure Copper (for conductivity), Bronze (Cusn), Brass (CuZn).
• Titanium & Alloys: Ti-6Al-4V for demanding aerospace and medical applications requiring high strength-to-weight ratio and biocompatibility (cost is a significant factor).
• Tungsten Heavy Alloys: (W-Ni-Fe/Cu) for high-density applications like radiation shielding or balancing weights.
• Specialty Alloys: Kovar (thermal expansion matching glass/ceramic), Superalloys (Inconel, Hastelloy - challenging but possible).

Material selection impacts feedstock behavior, sintering parameters, final properties, and ultimately, the metal injection molding cost.

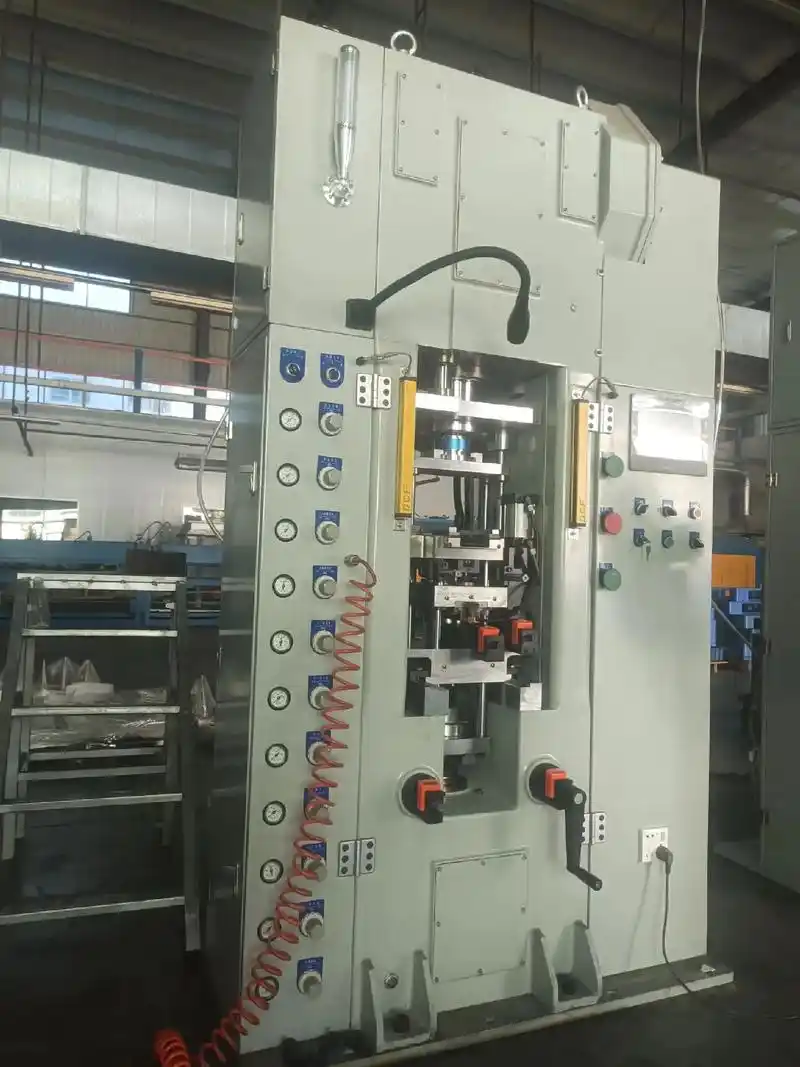

The Engine: Metal Injection Molding Machines
The metal injection molding machine is the workhorse of the green part formation stage. While conceptually similar to plastic injection machines, MIM machines face unique challenges:




• Abrasion: Metal-filled feedstock is highly abrasive. Machines require hardened barrels, screws (often with special flight designs), and wear-resistant non-return valves.
• Higher Pressure: Achieving proper filling of complex, thin-walled molds often necessitates higher injection pressures than typical plastic molding.
• Precision Control: Precise control over temperature profiles and injection speed/pressure is crucial for consistent part quality and minimizing defects.
• Corrosion Resistance: Some feedstocks or cleaning processes require corrosion-resistant components. Modern MIM machines are robustly engineered to handle these demands, often featuring specialized screw designs, hardened components, and sophisticated closed-loop control systems.

Liquid Metal Injection Molding: A Note on Terminology
The term liquid metal injection molding is sometimes encountered. This can be ambiguous:

• Misnomer for MIM: Sometimes incorrectly used to describe standard MIM, where the feedstock is molten plastic (liquid-like) containing solid metal powder.
• Thixomolding®: More accurately refers to a specific process for magnesium alloys. Magnesium chips or pellets are heated into a semi-solid (thixotropic) state and injected under pressure, similar to die casting but starting with solid feedstock. This is fundamentally different from powder-based MIM.
• Zamak/Die Casting: Occasionally used colloquially for zinc die casting.

When discussing MIM, it's crucial to clarify that the metal itself is not liquid during injection; it's the powder-binder suspension that flows.
Understanding Metal Injection Molding Cost
Metal injection molding cost is driven by several factors:

• High Tooling Investment: Molds for MIM are precision tools, often made from hardened tool steel, and can be complex and expensive ($20,000 - $100,000+). This high initial cost necessitates significant production volumes to amortize.
• Material Costs: Fine metal powders and specialized binders are more expensive than bulk metals or plastic resins.
• Processing Costs: The multi-step process (molding, debinding, sintering) involves significant energy consumption, labor, furnace time, and controlled atmosphere costs (e.g., hydrogen, vacuum).
• Secondary Operations: Finishing, heat treatment, or plating add cost.
• Volume: MIM becomes highly cost-competitive at high volumes due to the amortization of tooling costs and efficient mass production via injection molding. Unit costs drop dramatically as volume increases. For low volumes, the high tooling cost often makes MIM non-viable compared to machining.
• Part Complexity: Ironically, the complexity that makes MIM attractive also reduces cost relative to machining numerous complex features. MIM consolidates parts and eliminates many machining steps.

Medical Applications: Precision Meets Biocompatibility
Metal injection molding medical components represent one of the largest and most demanding growth sectors for MIM. Its advantages are perfectly aligned with medical device needs:




• Complexity: Enables intricate surgical instruments (scalpel handles, drivers, biopsy forceps, orthodontic pliers), minimally invasive device components, and drug delivery mechanisms.
• Biocompatibility: MIM excels with biocompatible stainless steels (316L, 17-4PH) and titanium, essential for implants (orthodontic brackets, bone fixation components, surgical staples) and instruments contacting bodily fluids.
• Sterilizability: Dense MIM parts withstand repeated sterilization cycles (autoclave, gamma, ETO) without degradation.
• Net-Shape Precision: Reduces or eliminates secondary machining, minimizing contamination risks and handling.
• Cost-Effectiveness at Scale: Vital for high-volume disposable instruments and implant components.

Alternatives to Metal Injection Molding
While powerful, MIM isn't universal. Key alternative to metal injection molding processes include:

• Precision Machining (CNC): Best for prototypes, very low volumes, extremely tight tolerances beyond MIM capability, or very large parts. Cost becomes prohibitive for complex parts at high volumes.
• Investment Casting: Excellent for complex shapes in a wide range of alloys, including larger parts than typical MIM. Generally offers better surface finish than as-sintered MIM but may have slightly lower dimensional accuracy and higher porosity. Tooling can be less expensive than MIM for low/medium volumes.
• Die Casting: Dominates for high-volume, non-ferrous parts where complexity is within die casting limits and material properties suffice. Faster cycle times than MIM for certain parts.
• Stamping/Forming: Ideal for high-volume, relatively simple, sheet metal parts. Limited geometric complexity compared to MIM.
• Conventional Powder Metallurgy (PM): More economical for simple, low-density parts. Cannot match MIM's geometric complexity or achieved density.
• Additive Manufacturing (Metal 3D Printing): Revolutionizing prototyping and low-volume/high-complexity production. While overcoming many geometric limits, it generally has slower build rates, higher per-part costs at scale, and potentially different material properties compared to MIM. It's often complementary rather than a direct replacement for high-volume MIM.

Metal Injection Molding stands as a cornerstone of modern precision manufacturing. By mastering the intricate interplay of fine powders, binders, molding, and high-temperature sintering, MIM delivers unparalleled design freedom for complex, high-performance metal components. Its dominance in medical devices, growing footprint in aerospace, automotive, firearms, and electronics, and continuous material and process advancements solidify its position. While the metal injection molding cost structure demands careful consideration and sufficient volume, its ability to produce parts that are otherwise impractical or prohibitively expensive makes it an indispensable technology. As industries push the boundaries of miniaturization and complexity, MIM will continue to be a vital enabler of innovation.
