Polypropylene (PP) is one of the most widely used materials in manufacturing, valued for its low density, exceptional chemical resistance, and ability to create living hinges. However, successfully processing Polypropylene Injection Molding is a significant challenge due to its inherent material structure, which leads to high, non-uniform shrinkage and a high risk of part warpage.
For B2B buyers, managing these issues is critical for structural and cosmetic components in the medical, consumer, and automotive sectors. This guide details the specialized tooling, thermal management, and structural strategies required to master the molding of PP and its integration with flexible materials like TPE and TPU.
content:
Semicrystalline Nature: The Root Cause of High Shrinkage and Warpage
Thermal Management: Controlling Mold Temperature to Prevent Warpage
TPE/TPU Integration: Co-Molding Soft Grips with Rigid PP Structures
Tooling Strategies: Managing Shear and Flow for Uniform Filling
Surface Finishing: Preparing Low Surface Energy PP for Adhesion
Semicrystalline Nature: The Root Cause of High Shrinkage and Warpage

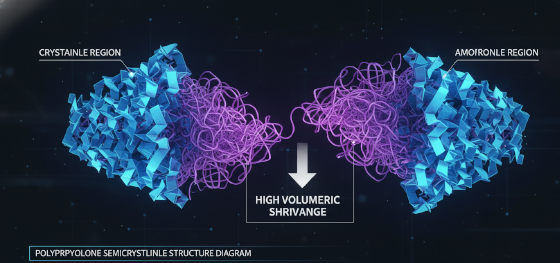

Polypropylene is a semi-crystalline polymer, meaning its internal molecular structure contains both ordered (crystalline) and unordered (amorphous) regions. This structure is the source of both its strength and its processing difficulty:
High Shrinkage: As the plastic cools in the mold, the crystalline regions pack tightly together, causing a large, non-uniform volume reduction. PP typically shrinks significantly more (up to 2%) than amorphous plastics like ABS or PC.
Anisotropy: Shrinkage is not the same in all directions. The material shrinks more in the direction of flow and less perpendicular to it. This directional difference is the primary cause of warpage, especially in large, flat components.
Strength: The crystalline regions give PP its high stiffness, toughness, and superior chemical resistance, making it an ideal choice for durable industrial parts.
Thermal Management: Controlling Mold Temperature to Prevent Warpage
Precise control of mold temperature is the most effective way to manage shrinkage and prevent the warping that plagues Polypropylene Injection Molding:
Uniform Cooling: The primary rule is to ensure the mold cools the part as uniformly as possible. Uneven cooling causes the material to solidify and shrink at different rates, pulling the part into a warped shape.
High Mold Temperature: PP benefits from a moderately high mold temperature. This slows the cooling rate, allowing the crystalline structure to form more uniformly and reducing the overall shrinkage differential.

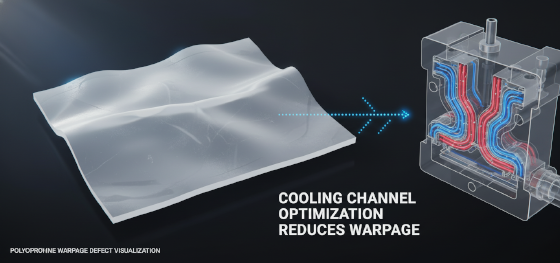

Cooling Channel Design: Advanced tooling features cooling channels placed strategically to maintain thermal balance. For difficult parts, conformal cooling channels can be used to follow the part's contour and ensure consistent heat removal.
TPE/TPU Integration: Co-Molding Soft Grips with Rigid PP Structures
PP's chemical inertness makes it difficult to bond with adhesives, but its unique chemistry allows it to be efficiently co-molded (overmolded) with TPE and TPU elastomers:

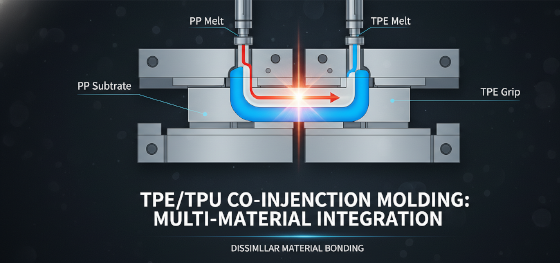

Chemical Bonding: TPE and TPU grades are specifically formulated to chemically bond with the PP substrate during the two-shot Injection Molding process. This creates a permanent, high-strength soft-touch grip on a rigid PP body.
Functional Applications: Co-molding is essential for consumer devices, medical grips, and automotive parts that require rigid structural support (PP) and flexible, ergonomic or sealing surfaces (TPE/TPU).
Design Challenge: The mold design must account for the different shrinkage rates of PP and TPE. The tooling must be built to perfectly manage this differential shrinkage to prevent internal stress and separation between the two materials.
Tooling Strategies: Managing Shear and Flow for Uniform Filling
The tooling itself must be optimized to manage the low viscosity and high flow rate of molten PP:

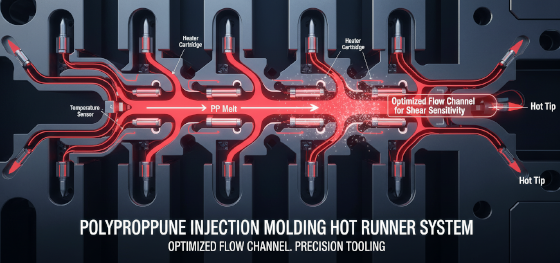

Hot Runner Systems: These systems keep the plastic molten right up to the mold cavity, eliminating cold slugs and improving flow uniformity. For PP, the precise thermal control of the hot runner is vital to prevent material degradation.
Shear Sensitivity: PP is highly sensitive to shear (friction) as it flows through the runner system. Excessive shear can break down the polymer chains, leading to material weakness and inconsistent part quality. Gating systems must be designed to minimize turbulence and shear.
Weld Line Placement: Weld lines (where two flow fronts meet) are always weak points in PP. Tool design (gate location) must be used to place these weld lines in low-stress, non-visible areas of the component.
Surface Finishing: Preparing Low Surface Energy PP for Adhesion
PP’s superior chemical resistance also means it has low surface energy, making it naturally resistant to bonding with paints, adhesives, and coatings:

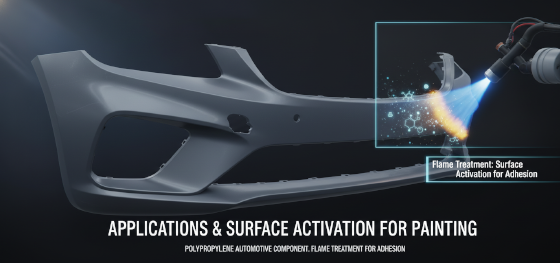

Surface Activation: For painting or printing, the surface of the PP must be activated using specialized methods like flame treatment or plasma treatment. This chemical modification increases the surface energy, allowing primers and coatings to adhere.
Texture and Appearance: PP tends to show a lower gloss finish than amorphous plastics. Mold textures (like VDI finishes) are often etched into the mold steel to give the part a uniform, appealing surface texture.
Welding Capability: PP is excellent for ultrasonic welding and hot plate welding, making it ideal for creating large, fully sealed assemblies (like containers or ducts) from smaller molded components.
Mastering Polypropylene Injection Molding requires sophisticated thermal and tooling strategies to manage high shrinkage and warpage risk. Jucheng Precision Technology offers specialized expertise in tooling design, TPE co-molding, and surface activation to ensure your PP components achieve maximum dimensional accuracy and functional integration.
Secure warp-free, high-toughness PP components. Contact us today to discuss the optimal Injection Molding and multi-material strategy for your next project.
