For aluminum components, anodizing is the definitive post-processing step for enhancing wear resistance, corrosion protection, and aesthetic appeal. However, in B2B manufacturing, this is not a simple dipping process. Precision Anodizing is a highly controlled electrochemical process where dimensional management is paramount. A faulty process can ruin the tight tolerances achieved by CNC Machining, making a high-value component unusable.
The success of anodizing is measured by two criteria: the hardness and thickness of the resulting oxide layer, and the dimensional compliance of the final part. This guide details the critical differences between the two main types of anodizing and the mandatory strategies required to protect the component's most precise features.
content:
Process Chemistry: The Electrochemical Growth of the Oxide Layer
Type Comparison: Choosing Between Type II (Cosmetic) and Type III (Hardcoat)
Dimensional Control: Compensating for Material Growth and Loss
Masking Strategy: Protecting Threads and Critical Tolerance Surfaces
Alloy Effects: How Material Composition Impacts Color and Hardness
Process Chemistry: The Electrochemical Growth of the Oxide Layer
Anodizing is not a coating applied onto the surface, but a layer grown out of the aluminum itself. This electrochemical process forms a hard, porous aluminum oxide layer that is highly durable:
Electrochemical Reaction: The aluminum part is placed in an acid electrolyte bath (usually sulfuric acid) and acts as the anode. An electric current is passed through the bath, converting the aluminum surface into aluminum oxide (Al₂O₃), a ceramic-hard compound.
Porous Structure: The resulting oxide layer is naturally porous, allowing dyes to be introduced for color before the layer is "sealed" in hot water, which stops the porous structure and enhances corrosion resistance.
The Growth Phenomenon: The layer grows by consuming the surface aluminum. Roughly half the final thickness of the oxide layer grows into the base metal, and half grows out from the surface, which is the source of the dimensional change.
Type Comparison: Choosing Between Type II (Cosmetic) and Type III (Hardcoat)
The two primary types of sulfuric acid anodizing serve fundamentally different purposes, dictating the component's final function:

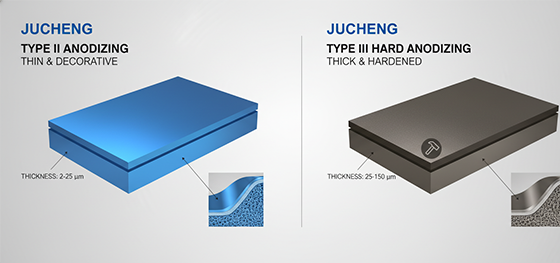

Type II (Standard/Cosmetic): A thinner layer (typically 5 to 25 microns) created at a warmer temperature. It is primarily used for color aesthetics and basic corrosion protection on decorative consumer goods and electronic housings. Its dimensional impact is manageable.
Type III (Hardcoat): A much thicker layer (25 to 100+ microns) created at a near-freezing temperature with higher current. It is primarily used for functional applications requiring extreme wear resistance (e.g., bearing surfaces, gears, military components). Its dimensional impact is significant and must be compensated for by the CNC process.
Wear Resistance: Type III is significantly harder and more durable than Type II, making it the choice for components exposed to heavy abrasion.
Dimensional Control: Compensating for Material Growth and Loss
For high-precision parts, the dimensional change caused by anodizing is the number one risk factor. The CNC Machining must be designed to accommodate the expected material growth:

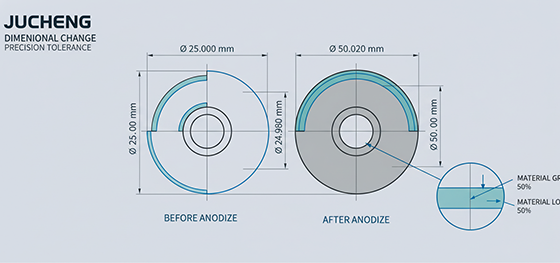

Compensation Strategy: Since half the layer grows out, the external dimensions of the part will increase by half the total oxide layer thickness, while internal dimensions (holes, bores) will decrease by half the total thickness. The CNC program must machine the features undersize or oversize to compensate.
Measurement: Post-anodizing dimensions are verified using CMM or high-precision gages. For critical bores, the final diameter must be checked after the process to confirm the tight fit required for bearings or pins.
Thickness Consistency: A controlled process is mandatory to ensure the oxide layer is uniformly thick across the entire part. Uneven thickness leads to warpage and inconsistent wear resistance.
Masking Strategy: Protecting Threads and Critical Tolerance Surfaces
Since anodizing causes dimensional change, any surface requiring a precise, tight fit must be completely masked (protected) from the electric current and the electrolyte:
Critical Areas: Essential areas that must be masked include threaded holes (the oxide layer would lock up the threads), bearing bores, precision slip-fit pins, and any surface requiring electrical conductivity (as the oxide layer is an insulator).
Masking Techniques: Masking is achieved using specialized high-temperature vinyl tapes, custom rubber plugs, or lacquers that resist the acidic electrolyte. The success of the process depends entirely on the masking technique's ability to seal the area perfectly.
Jigging: The part must be electrically connected to the system. The contact point is an area that will not be anodized. This contact point must be strategically placed in a non-critical area (e.g., inside a bore or on a non-mating surface).
Alloy Effects: How Material Composition Impacts Color and Hardness
The final cosmetic result and even the maximum hardness achieved are significantly impacted by the specific aluminum alloy used:

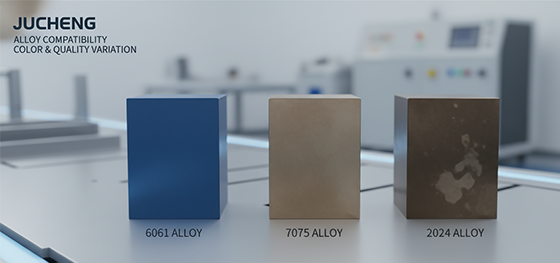

6061 and 6063: These alloys are the easiest to anodize and produce the best, most vibrant color results, making them ideal for cosmetic applications.
7075 and 2024: These high-strength alloys contain copper, which does not dissolve well during the process. They typically result in duller, less vibrant colors and often struggle to achieve the same maximum hardness as 6061 alloy.
Silicone Content: Alloys high in silicone (e.g., casting alloys) are virtually impossible to color anodize and will result in a dark grey or black finish regardless of the dye used.
Anodizing is a specialized post-process that begins with the CNC Machining plan. Jucheng Precision Technology integrates the anodizing process directly with CNC Machining, utilizing expert dimensional compensation and masking strategies to deliver superior Type II and Type III finishes that guarantee both aesthetic quality and dimensional compliance.
Secure wear-resistant finishes without compromising tolerance. Contact us today to discuss the optimal anodizing and masking strategy for your high-precision aluminum components.
