Views: 2 Author: Allen Xiao Publish Time: 2025-09-05 Origin: Site
You've probably heard of 3D printers that can make plastic toys and models. But what if you could print something as strong and light as the metal on a bike or a spaceship? Well, you can! Let's dive into how we can actually 3D print with aluminum.
How Does It Work? Think of a Super-Precise Laser Cookie Cutter!
The main way to 3D print aluminum is kinda like making a sand sculpture, but with metal powder and a super-powered laser.
The Powder Bed: A super thin layer of fine aluminum dust, called powder, is spread out on a flat platform.
The Laser Melter: A super-hot and super-precise laser beam zaps the powder. It draws a shape, melting the tiny metal dust particles together to form a solid piece. This shape is one single, flat slice of the final object.
Layer by Layer: The platform moves down just a tiny bit, another layer of powder is spread on top, and the laser draws the next slice. It does this over and over, melting each new layer onto the one below it.

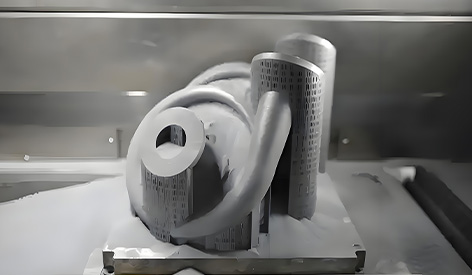

The Big Reveal: After thousands of layers, you lift the object out of the extra powder, and voilà—you have a solid, complex metal part! This awesome trick lets us make shapes that are impossible to carve out of a solid block, like objects with twisting tunnels inside or cool honeycomb structures that are really strong but very light.
What Kind of Aluminum is Used?
Not all aluminum is the same for printing! Just like you need the right ingredients to bake a perfect cake, you need a special mix of aluminum for 3D printing.
The Superstar Alloy (AlSi10Mg): This is the most common type. It's aluminum mixed with a little silicon and magnesium. This mix makes it really good at being printed and turns out strong and hard after it's baked in an oven (a process called "heat treatment").
The Super-Strong Alloy (Scalmalloy®): For parts that need to be extra strong, like on rockets, we use a special mix that has a rare element called scandium in it.
The Tough One to Print (6061 Aluminum): This is a very common, strong aluminum used in lots of things, but it's tricky to print. Scientists are working on new ways to make it work, which is really exciting!
How Strong is 3D Printed Aluminum?
Really strong! When it's printed and heat-treated correctly, it can be as strong as, or even stronger than, aluminum parts made the old-fashioned way (like casting or forging). It's also very light for its strength, which is perfect for things that need to fly, like airplanes and drones.
Printing vs. Extrusion: They Are NOT the Same!
Sometimes people get confused and say "3D printed aluminum extrusion." This isn't quite right!
3D Printing is like building a sandcastle one layer at a time. You create a brand new shape from nothing.
Extrusion is like pushing Play-Doh through a mold to make a long spaghetti noodle. It only makes long shapes with the same pattern all the way down.
They are totally different processes! (Though 3D printers are sometimes used to make the cool molds for extrusion!).
Cool Uses for 3D Printed Aluminum!
Awesome Molds: One of the coolest uses is making molds for plastic parts. The 3D printer can put special twisting cooling tunnels inside the mold. This helps the mold cool down plastic super fast, making the process quicker and the final plastic parts better.
Space and Medicine: This technology is used to make lightweight brackets for rockets and satellites, and even custom-made parts for medical implants that fit a person's body perfectly!
Aluminum Oxide (A Bonus!): We can also 3D print a ceramic material made from aluminum (called aluminum oxide). It's not a metal; it's used to make super strong, heat-proof parts for extreme environments.
3D printing aluminum is no longer science fiction—it's real! It lets engineers and designers create amazing, complex, strong, and lightweight parts that were impossible to make before. From prototypes to parts flying in space, this technology is changing how we make things every day
