Capital efficiency is often the first casualty of industrial scaling. When a hardware design moves from a desktop-sized component to a meter-wide structural housing, the financial math of traditional manufacturing begins to collapse. If you attempt to force a large-scale medical diagnostic enclosure or a heavy-duty robotics chassis into the world of high-pressure injection molding, you are immediately tethered to a staggering "tooling debt." Large steel molds required for these dimensions can easily exceed six-figure investments and demand months of technical refinement before the first part is ever born. This economic barrier effectively kills innovation in mid-volume sectors. However, there is a strategic sanctuary that operates at the intersection of low pressure and high molecular performance. This is the sophisticated domain of custom reaction injection molding (RIM). It is a process that fundamentally rewrites the rules of large-format plastic forming. Instead of fighting against thousands of tons of clamping force, RIM harnesses the power of chemical thermodynamics to grow massive, complex, and structurally superior components within a fraction of the traditional capital cycle.

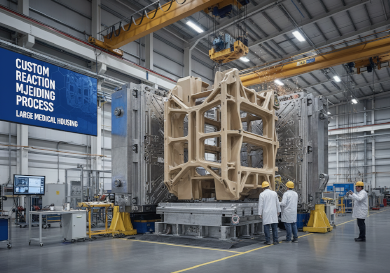

Jucheng Precision operates at the epicenter of this industrial shift. We recognize that true engineering freedom exists only when the manufacturing process supports, rather than restricts, the design's ambition. We have centered our specialized production facility around the unique requirements of the medical, automotive, and heavy machinery sectors—industries where parts must be large, durable, and aesthetically flawless. RIM is not a simple subtractive or additive process; it is a molecular event precisely engineered into a physical geometry. By utilizing low-viscosity liquid resins and low-pressure aluminum tooling, we provide a validated technical path for components that must survive in hospitals, laboratories, and the most aggressive outdoor environments. This guide explores the physics of thermoset chemistry, the economic paradigm shift of aluminum molds, and the material science that allows us to deliver large-scale enclosures that feel as premium as they are structurally invincible.
Efficiency in the modern supply chain is found in the removal of brute force. When you eliminate the need for astronomical clamping pressures, you open a floodgate of design possibilities—variable wall thicknesses, integrated metal inserts, and complex internal ribbing that would be physically impossible in high-pressure systems. Whether you are building a ruggedized housing for an autonomous agricultural robot or a sophisticated medical diagnostic suite, the logic of the reaction is your greatest competitive asset. Let us break down the physical laws of droplet orchestration and see how technical foresight can lock the integrity of your next large-format plastic design into a profitable physical reality.

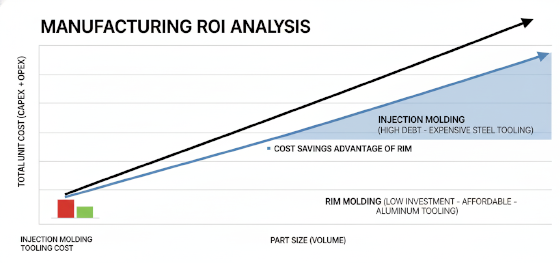

Economic Defiance of Low-Pressure Systems
The decision to adopt custom reaction injection molding is rarely just a technical one; it is a move of financial defiance. In the standard world of injection molding, the cost of the mold is the ultimate barrier to market entry. If you want to mold a component with a surface area larger than one square meter, you are no longer talking about a machine—you are talking about a massive engineering project. A steel mold of that size must withstand internal pressures of 15,000 to 20,000 PSI. This requires thousands of pounds of forged tool steel, months of heavy-duty CNC milling, and a specialized infrastructure just to move the tool. For production runs of 100 to 5,000 units per year, the amortized cost per part becomes astronomical. Many brilliant medical and industrial designs die on the drawing board because the "entry fee" of high-pressure molding is too steep.
RIM fundamentally disrupts this cost-to-scale ratio. Because the liquid resins enter the mold at pressures typically under 100 PSI, the physical demands on the tool are negligible. Jucheng Precision utilizes high-grade aluminum tooling for the vast majority of our custom reaction injection molding projects. Aluminum is 300% faster to machine than steel, offers superior thermal conductivity for cooling, and is significantly lighter. This translates into a tooling investment that is often 70% to 80% lower than its high-pressure equivalent. But the economic logic goes deeper than the mold. Because we aren't fighting the massive internal pressures of molten plastic, we can produce "Net Shape" parts with complex details and integrated mounting features that would require expensive slides and cams in a high-pressure tool. For the OEM, this means a faster path to market and a significantly lower risk profile. You can launch your product, iterate on the design, and scale to thousands of units without the fear of a million-dollar tooling loss. We act as your fiscal partner, helping you identify the exact moment where RIM offers the highest ROI for your large-scale designs.

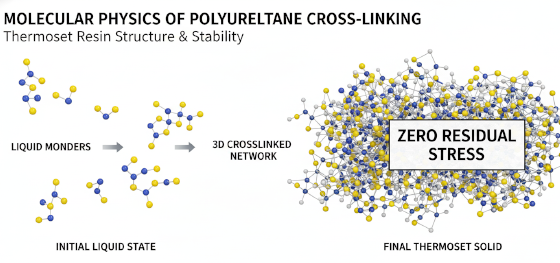

Molecular Handshake: Physics of Polyurethane Cross-Linking

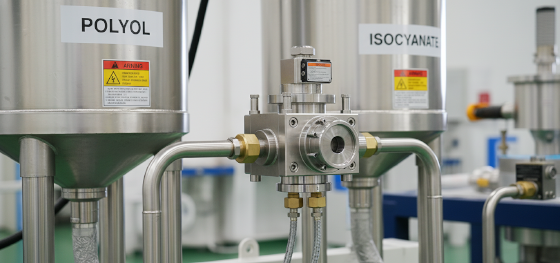

To understand the performance of a custom reaction injection molding component, one must move past the thermal melting of plastics and into the realm of chemical cross-linking. Standard injection molding uses thermoplastics—pellets that are melted, pushed into a die, and then frozen back into a solid. This process is reversible and fraught with internal stress. As the plastic cools from the outside in, the chains shrink at different rates, leading to warping and the ugly sink marks that plague large parts. Reaction injection molding operates on the superior logic of thermoset chemistry. Instead of melting plastic, we mix two low-viscosity liquid components—Polyol and Isocyanate—immediately before they enter the mold.
Inside the mold, these liquids undergo a rapid chemical reaction that builds the material and the part simultaneously. This is an exothermic reaction that creates a 3D cross-linked molecular network. Unlike thermoplastics, which are held together by weak physical bonds, RIM parts are held together by strong, covalent chemical bonds. This cross-linked structure is permanent; it will not melt, and it will not "creep" or deform under load over time. Because the material is born at low pressure, there is virtually zero residual internal stress. A RIM part that is one meter long will stay perfectly flat and dimensionally stable for its entire service life. Jucheng Precision manages this chemical cycle with digital accuracy, ensuring the mixing ratio and the mold temperature are synchronized to create a part with consistent density. By managing the molecular handshake of the resin, we ensure your structural components possess a "Memory" of stability, ensuring they fit your assembly as perfectly in year five as they did on day one.

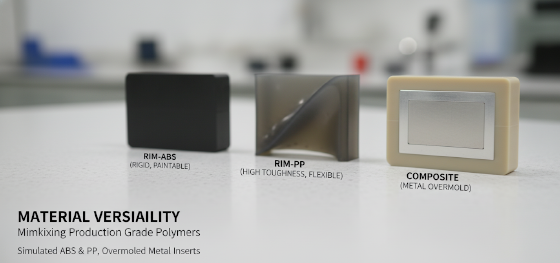

Material Versatility: Mimicking Production Grade Polymers
A common technical myth is that custom reaction injection molding is limited to "foam" parts. While RIM is excellent at creating micro-cellular cores, the modern reality is its incredible ability for material mimicry. Because we are working with liquid resins, we can engineer the chemical makeup to simulate the exact mechanical properties of mass-production plastics like ABS or Polypropylene. This allows engineers to perform functional testing on a prototype that has the same "feel," "flex," and "fracture point" as the final production intent. Our library of materials is designed to meet the high-fidelity demands of the medical and automotive sectors.
We utilize premium polyurethane systems to provide a wide spectrum of performance "tuning." When a client needs to simulate the rigidity and impact resistance of ABS for a medical scanner, we utilize high-modulus resins that offer exceptional chemical resistance to hospital cleaning agents. For automotive bumpers or industrial fenders that must absorb massive impacts without shattering, we utilize resins that exhibit incredible elongation and toughness, mimicking Polypropylene. We also offer "Structural Foam" variants, where a chemical blowing agent creates a part with a hard, dense outer skin and a lightweight, cellular core. This provides the highest stiffness-to-weight ratio available in the plastic world, allowing us to produce massive parts that are rigid enough for heavy machinery but light enough for a single technician to handle. JUCHENG’s expertise ensures your material selection is a technical match for your mission, providing the structural spine your engineering requires.

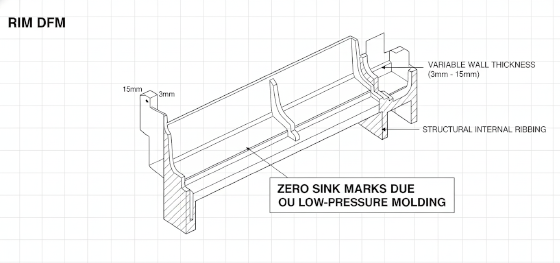

Geometric Liberty: Engineering Variable Walls and Ribs
Designing for high-pressure systems is a constant exercise in geometric compromise. In traditional injection molding, the "Uniform Wall Thickness" rule is absolute; if a section is too thick, it creates a heat sink that causes the surface to collapse inward, resulting in unsightly sink marks. custom reaction injection molding shatters these restrictive DFM boundaries. Because the polyurethane resin enters the mold as a low-viscosity liquid and cures via an internal chemical reaction rather than external cooling, the material does not suffer from the same thermal contraction issues. This allows engineers to design parts with massive variations in cross-sections—integrating 3mm exterior panels with 15mm thick mounting blocks in a single, seamless shot.
This geometric freedom is a strategic asset for structural integration. Instead of building a separate metal skeleton to support a plastic shell, Jucheng Precision helps clients integrate the skeleton into the shell. We can mold aggressive internal ribbing and deep "bosses" that provide the rigidity of a cast metal part while maintaining the lightweight benefits of a polymer. By placing the material only where the stress-simulations demand it, we create enclosures that are structurally optimized and aesthetically clean. We also utilize this "liquid logic" to overmold metal inserts, threaded bushings, and electronic shielding directly into the part. This eliminates the need for secondary heat-staking or ultrasonic welding, reducing the part count and the total labor cost of your assembly. By engineering the geometry to work with the chemistry, we deliver custom reaction injection molding solutions that are as structurally complex as they are cost-efficient, proving that for large-scale enclosures, the best design is often the one that ignores traditional rules.

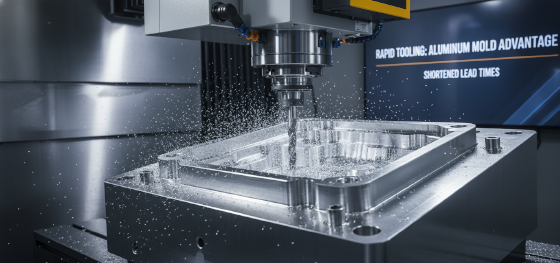

Rapid Response Tooling: The Aluminum Mold Advantage
Time is the most expensive consumable in a product launch cycle. When an automotive Tier-1 supplier or a medical OEM needs a functional enclosure, waiting twelve weeks for a hardened steel tool is a terminal delay. The low-pressure nature of custom reaction injection molding allows us to bypass this bottleneck through the use of high-precision aluminum tooling. Aluminum offers a thermal conductivity that is nearly four times higher than P20 tool steel, allowing JUCHENG to manage the exothermic heat of the polyurethane reaction with extreme accuracy. This rapid heat dissipation results in faster cycle times and a more uniform molecular cure across the entire part surface.
Utilizing our internal 5-axis CNC infrastructure, we can machine a large-format aluminum mold in a fraction of the time required for steel. Most of our custom reaction injection molding tools are ready for production in as little as three to five weeks. This agility allows for "Late-Stage Design Flexibility"—if a requirement changes during the prototype phase, we can often weld and re-machine the aluminum tool to accommodate the new geometry, a process that is either impossible or prohibitively expensive with hardened steel dies. Furthermore, aluminum molds have an industrial lifespan that easily covers the 5,000 to 10,000 unit production runs typical of the medical and heavy equipment industries. By choosing the "Aluminum Path," you are buying the ability to iterate at the speed of modern innovation, ensuring your product reaches the market while the demand is still at its peak. We don't just build molds; we engineer high-speed technical vessels for your design’s evolution.

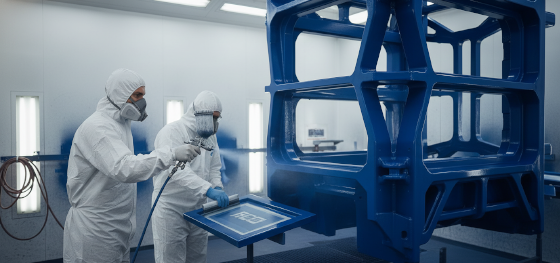

Finishing Alchemy: Achieving Class-A Surface Standards
A raw part is merely a technical achievement; a finished part is a brand experience. In the high-end consumer and medical markets, the visual and tactile quality of an enclosure defines the perceived value of the technology inside. Polyurethane is an exceptionally receptive substrate for secondary finishing, far outperforming commodity plastics that often require aggressive chemical priming. custom reaction injection molding components from Jucheng Precision arrive with a dense, non-porous skin that serves as a perfect foundation for automotive-grade coatings.
Our finishing laboratory offers a comprehensive suite of "Aesthetic Armor" options. We perform professional painting with custom color matching to any Pantone or RAL standard, delivering finishes that range from "Soft-Touch" rubberized textures to high-gloss "Piano Black" mirror surfaces. For medical environments, we apply antimicrobial coatings that resist the harsh chemical wash-downs required in clinical settings. We also handle the high-detail work that makes a product feel authentic: silk-screening for interface labels, pad printing for logos, and laser marking for serialized tracking. By managing the finishing in-house, we eliminate the risk of a third-party shop ruining your precision parts with uneven paint thickness or poor adhesion. Every enclosure we ship is ready for immediate final assembly, providing the "Class-A" visual integrity your stakeholders demand. We turn the raw output of a chemical reaction into the sophisticated face of your brand.
Validation Rigor: IATF 16949 and CMM Integrity
Choosing a manufacturer for large-scale parts is a decision of technical liability. Most shops can make a part "look" like the drawing; JUCHENG provides the verified data to prove it is the drawing. We have centered our facility around a "Risk-Based Manufacturing" culture, governed by our ISO 9001 and IATF 16949 certifications. These standards are the mandatory framework for the global automotive and aerospace supply chains. For our clients, this means every batch of custom reaction injection molding components is backed by documented process validation, from the initial material batch audit to the final CMM inspection.
We utilize large-format Coordinate Measuring Machines (CMM) and laser scanners to generate 3D "Error Maps" of every enclosure. On a part that measures over one meter, managing thermal expansion and warpage is a discipline of its own. We measure our parts in a climate-controlled sanctuary at a stabilized 20°C to ensure the data is objective and unassailable. We provide full material traceability and documented cure-logs, ensuring that your quality auditors have a perfect digital birth certificate for every part in the shipment. This transparency is the cornerstone of our reputation. Whether you are building a heart-lung machine or a mission-critical robotics hub, our expertise ensures your vision is delivered with absolute structural and dimensional integrity. Contact Jucheng Precision today for a technical DFM review and see how our custom reaction injection molding protocols can clarify and armor your next industrial breakthrough.
Engineering Verdict: Why Integration Defines Scalable Quality
The success of a modern hardware project is decided by the management of the transition. In a market where lead times are shrinking and complexity is rising, the traditional model of fragmented manufacturing is a dangerous bottleneck. Selecting Jucheng Precision for your custom reaction injection molding needs is a strategic move toward manufacturing stability. We eliminate the "Accountability Gap" by owning the entire lifecycle—from the 5-axis CNC machining of the aluminum tool to the final chemical validation of the polyurethane skin.
Our facility acts as a technical hub where the physics of the mold and the chemistry of the resin are synchronized to protect your budget and your reputation. We don't just ship plastic; we deliver engineered solutions that have been audited for survival in the real world. Don't let the high cost of traditional molding or the low quality of fragmented vendors stifle your innovation. Experience the clarity and the capability that integrated large-format molding can bring to your next breakthrough. Visit our capabilities page at Reaction Injection Molding Companies to see our full technical scope. Let our engineers help you build a bigger, better, and more profitable physical reality.
