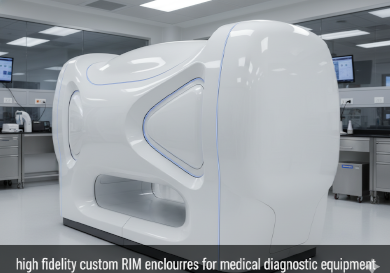

Unboxing a 1.5-meter tall diagnostic console shell and feeling that immediate sense of unyielding weight reveals a fundamental truth about high-end hardware: the enclosure is the primary guardian of perceived value. In the sectors of surgical robotics and laboratory automation, standard plastics often feel flimsy and ring with a hollow, cheap sound when handled by clinicians. Achieving the solid density and bionic rigidity required for professional machines demands a move toward custom reaction injection molding to ensure the machine’s skin behaves like a structural component rather than a cosmetic cover. This low-pressure liquid chemistry allows for the creation of monolithic panels that protect sensitive AI compute stacks from the physical and thermal chaos of the hospital ward or industrial floor.
Mechanical integrity in oversized shells depends on the ability to integrate internal supports without creating surface defects. I have personally inspected large fenders that exhibited ugly sink marks because the design tried to combine thick ribs with a thin skin using traditional high-pressure methods. Engineering custom RIM enclosures addresses these visual and structural hurdles by leveraging the expanding nature of polyurethane resin. Jucheng Precision utilizes a fleet of 150+ CNC machines and 25 5-axis Haas/Mazak units to manufacture the oversized aluminum tools that turn these radical thickness variations into physical reality. By providing a free DFM analysis in 24 hours, Jucheng Precision ensures your medical device prototyping project maintains its "Geometric Zero" fits in our Shenzhen factory hub.
Operating under the global quality standards of ISO 13485 and ISO 14001, Jucheng Precision acts as the high-tier structural partner for global innovation teams. Jucheng Precision transforms raw liquid chemistry into validated hardware in as fast as 15 business days, offering a "Bridge to Production" that eliminates the six-figure tooling debt of traditional molding. This guide explores the essential Variable wall thickness standards, the logic of encapsulation with Polyurethane RIM, and the surface finishing requirements required for mastering custom RIM enclosures to ensure your innovation secures its commercial position with unyielding hardware reliability.
content:
Structural Rigidity: Why RIM Achieves a 'Solid-Core' Feel?
Technical Data: Comparing Enclosure Modulus and Sound Damping
Integrated Security: Encapsulating Frames and Sensors Directly
Surface Mastery: Achieving Retail-Ready Automotive Finishes
JUCHENG Hub: Mastering 2-Meter Enclosures in the Shenzhen Factory
FAQ: Real Answers for Sizing, Weight, and EMI Shielding
Structural Rigidity: Why RIM Achieves a 'Solid-Core' Feel?
Geometric stability in large-scale hardware is often ruined by the physics of thermal cooling. In traditional molding, molten plastic shrinks inward, pulling the aesthetic face with it whenever it meets a thick internal support—a defect known as a sink mark. In the manufacturing of custom RIM enclosures, the expanding chemical reaction creates an outward packing force that ensures the skin remains mirror-flat even over 15mm thick mounting blocks. Tapping on a Jucheng Precision shell results in a dense "Thud" rather than a hollow "Ring," a sensory cue that signals high-end engineering to your end-users. This density is essential for industrial robot parts that must operate in high-vibration factory environments without rattling or panel fatigue.
Can RIM enclosures support heavy displays?
Yes. Because RIM handles extreme wall thickness transitions, Jucheng Precision can mold 10mm thick bezel reinforcements directly into a 4mm aesthetic skin for unyielding screen stability.

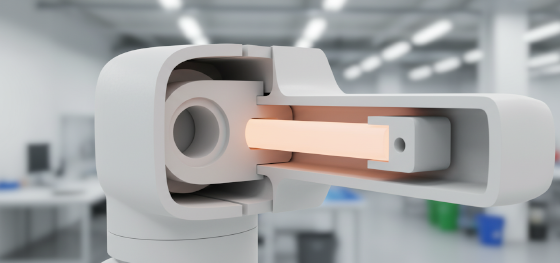

Variable wall thickness capability allows for "Topology Optimization" at the part level. Jucheng Precision’s mold designers identify the high-stress nodes where your scanner or robot chassis might flex and suggest localized thickening or "Bionic Ribbing." By utilize our 5-axis Mazak centers to machine these complex internal features into aluminum molds, Jucheng Precision delivers parts that function as both a skin and a skeleton. This structural consolidation eliminates the need for expensive secondary metal frames, reducing the total mass of your autonomous vehicle by up to 30% and directly extending its operational battery life in the field.
Internal stress relief is the second secret to the RIM feel. High-pressure molding results in "Locked-In" tensions that cause panels to "Potato-Chip" over months of heat cycles. Because Jucheng Precision’s RIM parts cure at low pressure (less than 100 psi), the molecular matrix is formed in a relaxed state. This ensures that the intricate snap-fits and door latches of your custom RIM enclosures remain perfectly aligned from the first day of assembly to its 5-year commercial anniversary. We provide the structural certainty that high-precision medical device hardware validation services demand, ensuring your innovation survives the transition from concept to mass adoption.
Technical Data: Comparing Enclosure Modulus and Sound Damping
Success in hardware R&D depends on matching the mechanical architecture to the intended environment. If your design assumes the toughness of aluminum but you receive the properties of brittle plastic, your field trial will fail. Jucheng Precision provides full material characterization reports to help your engineering team validate their material choices for custom RIM enclosures. The following table compares the essential performance metrics for the current MedTech and robotic markets.
| Performance Metric | Standard Rigid PU (RIM) | Injection Molded ABS | Engineering Impact |
| Flexural Modulus (psi) | 280,000 - 320,000 | 300,000 | Equivalent Stiffness |
| Specific Damping (Loss Factor) | 0.05 - 0.15 (High) | 0.01 - 0.03 (Low) | Silences Internal Fans |
| Impact Strength (J/m) | 450 - 650 | 200 - 350 | Resists Gurney Impacts |
| Heat Deflection (HDT) | 105°C | 85°C | Stable near AI CPUs |
The "Specific Damping" advantage is the primary reason high-end brands choose RIM. In a hospital or high-fidelity audio environment, mechanical noise is a pollutant. Jucheng Precision’s RIM polyurethanes possess an internal micro-structure that dissipates kinetic energy as heat, effectively "Muffling" the vibrations of internal robotic gearboxes. By delivering hardware with integrated acoustic control, Jucheng Precision helps you build a product that conveys mechanical silence and high-tier reliability. Our Shenzhen hub manages these density targets with +/- 2% precision, ensuring every unit in your Beta fleet possesses the unyielding foundations your autonomous innovation requires.
Integrated Security: Encapsulating Frames and Sensors Directly

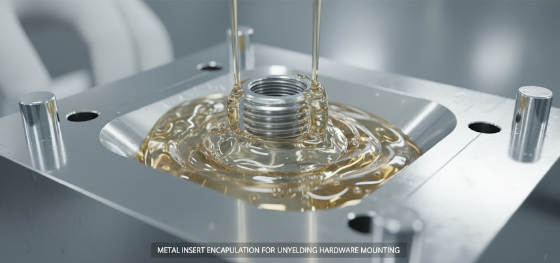

Securing high-value sensors and heavy-duty hinges requires mounting points that can handle intense localized torque. In the manufacturing of custom RIM enclosures, Jucheng Precision utilize encapsulation with Polyurethane RIM to physically bond dissimilar materials into a single unit. Instead of bolting a metal hinge to a plastic wall—which creates a "Point of Failure"—we mold the metal frame directly into the polyurethane matrix. The liquid resin flows into the microscopic undercuts of the metal, creating a molecular lock that is significantly stronger than any post-mold fastener. This unyielding integrity is essential for surgical robot arms and heavy industrial carts that must survive millions of high-torque cycles without loosening.
How do you stop moisture from leaking around inserts?
Jucheng Precision utilize specialized chemical bonding agents on all encapsulated metal parts to ensure the resin creates a watertight seal at the interface.
Hermetic sealing for outdoor or clinical environments is managed through this integrated logic. Traditional enclosures rely on rubber gaskets that can be misaligned during assembly. Jucheng Precision can overmold a soft-touch silicone seal directly onto the rigid structural shell in a single RIM cycle. This created a monolithic, leak-proof barrier that survives high-pressure steam cleaning and tropical humidity. By providing "Instrumentation-Ready" hardware, Jucheng Precision turns your enclosure into a high-fidelity data-gathering tool, ensuring your prototype robot remains calibrated and functional in the most hostile environments on earth.
Precision registration of these encapsulated items is handled by our high-end CNC capacity. Jucheng Precision machines hardened steel pins within the aluminum mold to lock every sensor mount and bolt-hole in place with +/- 0.05mm accuracy. This ensures that your LiDAR unit or touchscreen will sit at the perfect angle every time, with no manual shimming required. This "Geometric Certainty" is what makes Jucheng Precision a preferred partner for global aerospace and defense OEMs. We don't just give you a part; we give you a precise structural module that accelerates your path to commercial launch, providing the unyielding foundations your autonomous innovation demands.
Surface Mastery: Achieving Retail-Ready Automotive Finishes

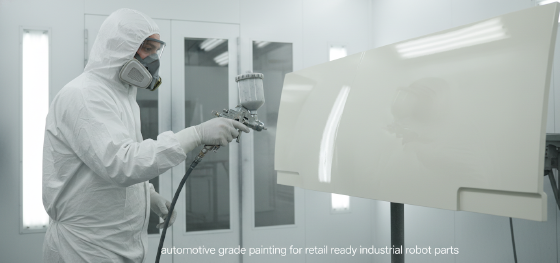

Visual identity dictates the success of a boardroom demo or a trade show launch. Achieving a flawless "Piano Black" or medical-white finish on a 1.5-meter long part is the ultimate test of surface integrity. I’ve noticed that most injection molded parts fail this test because they exhibit microscopic surface waves caused by high-pressure melt-shear. Jucheng Precision utilize the low-pressure RIM cycle to produce enclosures with Class-A automotive finishes applied in our in-house dust-free suites. Because RIM parts cure in a relaxed state, the surfaces are perfectly planar, acting as the ideal canvas for high-gloss clear coats and 2K urethane topcoats that match your corporate Pantone colors with absolute accuracy.
How to prevent paint peeling on large plastic shells?
Jucheng Precision utilize automated flame treatment to increase surface energy followed by high-solids primers to ensure 100% paint retention without peeling.
Final hardware registration features like instruction labels and safety warnings are integrated via Silk-Screening and Laser Marking. We avoid adhesive decals which can bubble under intense solar heat. Instead, Jucheng Precision machines "Alignment Nests" into the interior of our parts that lock into our custom printing fixtures. This ensures that every logo and label is applied with +/- 0.1mm accuracy across your entire Beta fleet. This level of precision is essential for medical device prototyping where regulatory information must be permanent. By delivering retail-ready hardware directly to your site, Jucheng Precision eliminates the logistical friction that ruins hardware timelines.
Integrated textures also provide a durable aesthetic that hides scratches better than paint. Jucheng Precision utilize 5-axis CNC laser texturing to machine VDI 3400 textures directly into the mold surface. This is especially vital for the high-impact undercarriage areas of a robot, ensuring the machine looks professional even after years of labor in the mud. By providing "Finished-in-the-Mold" components, we reduce your total assembly time and eliminate the logistical risks of multi-vendor finishing. Jucheng Precision provides the unyielding foundations that keep your innovation moving through the high-speed cycles and the years of hard labor in our Shenzhen hub.
JUCHENG Hub: Mastering 2-Meter Enclosures in the Shenzhen Factory
Dominating the large-format hardware market requires a partner that doesn't just mold plastic, but understands the economics of scaling. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering high-tolerance RIM components and structural industrial robot parts with industry-leading speed. Jucheng Precision provides the bridge to production that ensures your innovations move from CAD to field trial with 100% metallurgical confidence. Jucheng Precision have No MOQ, allowing you to source 1 to 10 units for high-stakes investor pitches without the crushing cost of mass-production tools.
Integrating your structural design with Jucheng Precision’s expertise ensures that your custom RIM enclosures decision is based on performance data, not guesswork. Jucheng Precision offer comprehensive DFM reviews within 24 hours, identifying potential thermal-expansion risks or machining bottlenecks in your design before they become field failures. Whether you are building an autonomous medical assistant or a heavy-duty industrial mobile base, Jucheng Precision provides the rigid, precise, and retail-ready foundations that keep your innovation moving through the high-speed cycles and the years of hard labor.

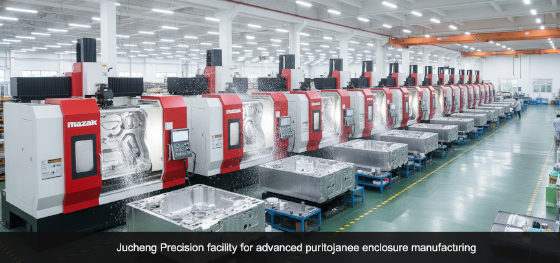

Our facility is equipped with 150+ CNC machines and dedicated high-pressure RIM assembly cells, allowing us to manage the entire hardware lifecycle in one location. Jucheng Precision manage the complexity of multi-material bonding and automotive-grade finishing so your engineering team can focus on the motion control and the AI. By combining Shenzhen's speed with industrial-grade material verification and global quality standards, Jucheng Precision remains the preferred partner for the world's most aggressive hardware challenges. Contact the Shenzhen hub today to start your next 4-day rapid delivery project.
FAQ: Real Answers for Sizing, Weight, and EMI Shielding
What is the maximum size Jucheng can mold for custom RIM enclosures?
We regularly produce monolithic structural panels and enclosures up to 2,500mm in length with consistent wall thickness.
Can RIM enclosures provide EMI shielding for diagnostic gear?
Yes. Jucheng Precision specialized in applying conductive nickel or copper coatings to the internal skin of our RIM parts to meet EMC standards.
How long does a rapid RIM tool take to manufacture?
Aluminum rapid tools for large enclosures are typically completed and delivering parts in 15 to 20 business days.
Can I get custom brand colors in the resin?
Yes. We mix high-stability pigments directly into the resin, providing permanent color-through aesthetics that never chip or peel.
Does JUCHENG provide CMM reports for oversized shells?
Yes. Jucheng Precision provide full dimensional verification reports and material batch logs for every automotive and medical production batch.
Flimsy surfaces and mechanical rattling are absolute innovation killers for high-end robotic systems. Partnering with Jucheng Precision ensures that your functional iterations are built with the unyielding polyurethane reaction injection molding and specialized custom RIM enclosures knowledge the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the unyielding foundation your autonomous fleet requires.
