Master the Multi-Cavity: Family injection mold design Rules

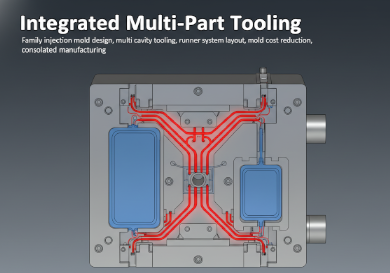

Financial hemorrhage in the R&D cycle is often the result of "Tooling Proliferation." When an engineer designs a consumer electronic assembly—consisting of a front housing, a battery door, and two side buttons—the traditional factory reflex is to quote four separate steel molds. This antiquated mindset anchors your capital in nearly $60,000 of upfront expense before a single unit is sold. In the hyper-agile landscape of 2026, navigating this procurement hazard requires the strategic deployment of Family injection mold design. This manufacturing "hack" involves cutting multiple unique parts into the same mold base, effectively forcing a single injection cycle to produce a complete kit of components. Jucheng Precision operates as a high-fidelity supply chain partner, utilizing advanced Moldflow simulation and 5-axis CNC machining to ensure that disparate geometries fill with surgical synchronicity. We provide the manufacturing insurance needed to achieve Low Volume Injection Molding success, allowing you to launch full assemblies for the price of a single component's tooling.

Establishing a lean manufacturing roadmap begins with the rejection of the "One-Part-One-Mold" dogma. Amateurs view family molds as a risky compromise that leads to imbalanced filling and quality drift. Professional sovereignty, however, is earned through the mastery of artificial flow restriction. At Jucheng Precision, we don't just "fit parts in a box"; we engineer the thermodynamic path of the melt. By adjusting runner diameters and gate thicknesses to the micron, we ensure a 15-gram enclosure and a 1-gram button reach their solidification points at the exact same millisecond. This guide deconstructs the economics of the "Assembly Shot," the physics of runner balancing, and the mandatory geometric guardrails needed to secure retail-ready kits in days, not months. We turn complex BOMs into simple, high-yield production runs.

content:

Economic Sovereignty: Consolidating the Tooling Invoice

Fluid Dynamics: The Physics of Artificial Runner Balancing

Geometric Compatibility: Matching Masses and Volumes

Operational Warfare: Managing Flash and Short Shot Risks

JUCHENG Protocol: Zero-Defect Family Mold Execution

Economic Sovereignty: Consolidating the Tooling Invoice

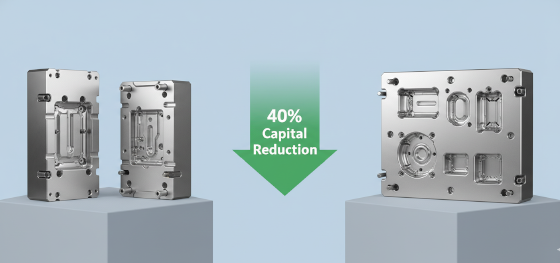

Capital allocation dictates the survival of disruptive hardware. The fundamental advantage of Family injection mold design is the radical reduction of NRE (Non-Recurring Engineering) fees. When you consolidate four parts into one mold, you are not just saving on steel; you are eliminating three separate mold bases, three ejection systems, and three sets of leader pins. Jucheng Precision provides the following definitive cost-delta matrix for a standard 3-part enclosure set:

Expense Type	Separate Molds (3 Units)	JUCHENG Family Mold (1 Unit)
Tooling Capital (CapEx)	$25,000 - $40,000	$8,000 - $15,000 (Savings!)
Setup Fees per Run	3 x Setup Charges	1 x Setup Charge
Inventory Lead Time	High (Molding 3 Batches)	Low (Molding 1 Batch)
Color Consistency	Risk of Batch Delta	Perfect (Same Shot)

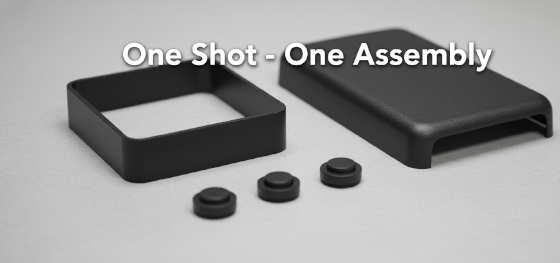

Beyond the initial tooling savings, family molds provide an "Aesthetic Insurance." When you mold a front and back cover in the same shot using the same batch of resin, the color and texture match is 100% absolute. This eliminates the "Shade Variance" that occurs when separate molds are run on different machines or with different pigment loads. Jucheng Precision prioritizes this "Kit Intelligence," ensuring your assembly looks like a monolithic unit rather than a collection of mismatched parts.

Fluid Dynamics: The Physics of Artificial Runner Balancing

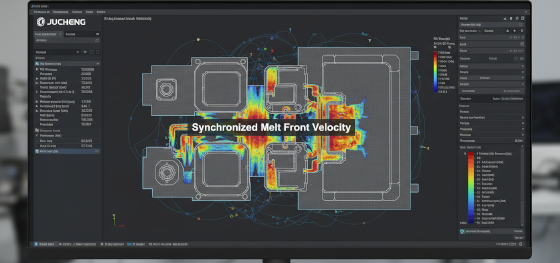

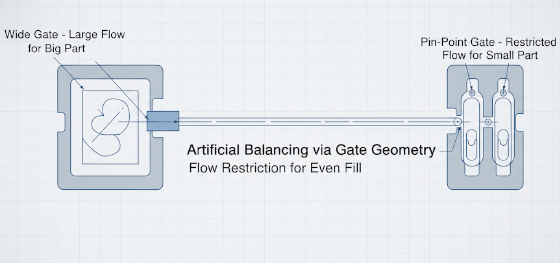

Mechanical failure in multi-cavity tools is almost always a victim of "Flow Resistance." In a standard mold, all cavities are identical, resulting in "Natural Balance." In Family injection mold design, the cavities are different. A molten polymer—acting as a non-Newtonian fluid—will always seek the path of least resistance. It will flood the smaller buttons and freeze off the large enclosure, resulting in a combination of flash and short shots. Jucheng Precision manages this thermodynamic chaos through "Artificial Balancing." We utilize Moldflow simulation to calculate the specific pressure drop for each part. Our toolmakers then "Tune" the runners; we might decrease the runner diameter for a small button to act as a flow restrictor, while widening the path for the main chassis. This ensures the melt front enters every part at a synchronized velocity. We treat the mold as a high-stakes plumbing system, managing the "Reynolds Number" of the plastic to guarantee that every component in the kit achieves 100% density without burning or air traps.

Geometric Compatibility: Matching Masses and Volumes

Compatibility is the primary guardrail of successful family tooling. While Jucheng Precision can balance disparate flows, there are physical limits to "Mass Disparity." Attempting to mold a 500-gram laptop chassis and a 0.5-gram internal screw cap in the same tool is manufacturing suicide. The 1000:1 mass ratio makes it impossible to establish a stable "Packing Window"—the small part will explode into flash before the large part is even half-full. A professional Family injection mold design protocol mandates a maximum volume ratio of approximately 4:1. Furthermore, the parts must share a similar wall thickness. If one part has a 3mm wall and the other has a 1mm wall, the thin part will freeze instantly, preventing any meaningful packing of the thick part. Our engineers perform a "Thermal Synergy Audit" on your CAD assembly, identifying which parts should be grouped together into a "Family" and which must remain solitary to protect your Injection molding materials' mechanical spine. We don't just "fill space"; we match thermal profiles.

Operational Warfare: Managing Flash and Short Shot Risks

Manufacturing yield is the ultimate judge of tool design. The primary risk of Family injection mold design is the narrow "Processing Window." If the balance is even slightly off, a change in ambient humidity or a 5-degree shift in melt temperature can trigger Injection molding defects. A small button might begin to "Flash" (excess plastic) while the main housing experiences a "Short Shot" (incomplete fill). Jucheng Precision eliminates this fragility through "Steel-Safe" gating. We intentionally machine the gates of the small parts undersized during the first trial (T0). We then mold parts, measure the weight of each, and "Open" the gates using precision EDM until the balance is perfect. This iterative, data-driven approach ensures your family mold isn't a high-maintenance liability, but a robust production engine. We provide the manufacturing insurance needed to ensure that one shot truly does equal one perfect assembly, 24 hours a day.

JUCHENG Protocol: Zero-Defect Family Mold Execution

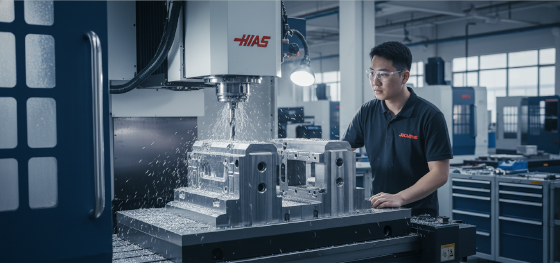

Engineering excellence at Jucheng Precision is built on the foundation of the integrated supply chain. We don't just "quote and cut"; we navigate the scaling curve alongside you. Our facility, housing over 150 CNC machines and elite mold-making bays, is optimized for the high-precision requirements of Family injection mold design. When you upload a multi-part CAD assembly to our facility, our veteran engineers perform a comprehensive "Consolidation Audit." We identify the most profitable grouping for your components, recommending family molds where they save money and separate tools where they protect quality. We provide full material lot traceability and CMM dimensional inspection reports for every batch, ensuring your hardware journey is lean, predictable, and market-ready. Stop paying the "Separate Tooling Ransom" to vendors who ignore your ROI. Not sure if your components can share a mold? Upload your 3D CAD file to JUCHENG today for a Free DFM Review. Our experts will catch tooling inefficiencies before they cost you money, ensuring your transition to production is seamless, beautiful, and profitable.
