Soft vs Hard Tooling: Mastering aluminum vs steel injection molds

Manufacturing profitability in the precision plastics sector is won or lost during the tool steel selection phase. When an engineer transitions from a solitary prototype to a Low Volume Injection Molding run of five thousand units, the primary adversary is not the part geometry, but the "Thermal Inertia" of the mold itself. Deciding on the appropriate aluminum vs steel injection molds strategy is essentially a high-stakes calculation of thermodynamic efficiency versus structural longevity. For decades, the industrial narrative dictated that aluminum was a "soft" compromise reserved for hobbyists. In the hyper-agile environment of 2026, high-strength alloys like Al-7075 have redefined the frontier of rapid tooling. Jucheng Precision operates as a strategic manufacturing navigator, utilizing our elite CNC fleet to bridge the gap between expensive production assets and low-cost development tools. We provide the material science needed to ensure your project achieves the shortest possible cycle times without the six-figure financial anchor of unnecessary steel.

Establishing a lean supply chain requires a dispassionate rejection of "Over-Engineering." Amateurs often purchase an H13 hardened steel mold for a batch of 2,000 medical housings, inadvertently burying their project in $20,000 of "unconsumed tool life." Conversely, using a soft alloy for high-mass glass-filled resins leads to catastrophic parting-line erosion. Jucheng Precision eliminates these "Fiscal Disasters" by performing a surgical thermal audit on every RFQ. We look for the "Cooling Bottlenecks" in your design, identifying whether the high thermal conductivity of aluminum can shave ten seconds off your cycle—effectively paying for the tool in a single production run. This guide deconstructs the physics of heat transfer, the economics of CNC labor, and the mandatory durability thresholds for 2026 hardware launches.

content:

Thermodynamic Sovereignty: The Conductivity Advantage

Machining Velocity: Slashing Lead Times via Al-7075

Technical Performance Matrix: Aluminum vs. Steel

Abrasion Resistance: The Limitations of Soft Tooling

JUCHENG Protocol: Strategic Tooling Material Selection

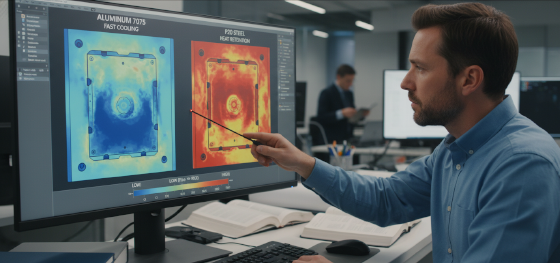

Thermodynamic Sovereignty: The Conductivity Advantage

Heat management is the primary lever of part price in the injection room. In the standoff of aluminum vs steel injection molds, aluminum possesses a physical "cheat code": thermal conductivity. Aluminum 7075-T6 transfers heat at a rate of approximately 130 W/m·K, compared to roughly 30 W/m·K for standard P20 tool steel. This nearly 5x delta means an aluminum tool pulls energy out of the molten polymer almost instantly. In high-pressure manufacturing, seventy percent of the total cycle time is dedicated to "Waiting for the Part to Cool." By utilizing aluminum, Jucheng Precision can often reduce this cooling phase by thirty to fifty percent. For a 30-second cycle, shaving off 10 seconds translates directly to a 33% increase in hourly yield. We don't just "cut molds"; we engineer heat exchangers that drive your unit cost down to levels that rival high-volume production. If your part has thick sections that act as thermal reservoirs, the case for aluminum becomes an economic mandate.

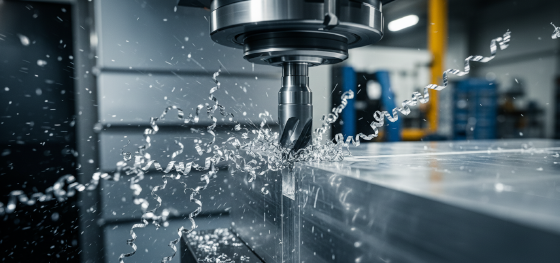

Machining Velocity: Slashing Lead Times via Al-7075

Lead time compression dictates the survival of disruptive technology. The fundamental challenge of steel tooling is its refusal to be cut quickly. Hardened H13 or pre-hardened P20 steels require slow spindle speeds, specialized carbide cutters, and frequent tool changes to prevent "Thermal Chatter" and maintain tolerances. aluminum vs steel injection molds logic prioritizes "Spindle Agility." Aluminum machines 3x to 4x faster than steel on our 5-axis Haas CNC centers. This speed allows Jucheng Precision to deliver a functional, validated mold in ten business days rather than the industry-standard eight weeks. This six-week lead-time advantage is a powerful revenue generator for our clients in the medical and consumer tech sectors. You can generate market traction and fulfill early pre-orders while your competitors are still reviewing their second design revisions. We prioritize "Lead Time Sovereignty," ensuring your hardware journey is measured in days, not months.

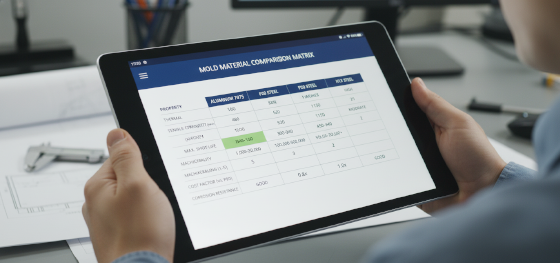

Technical Performance Matrix: Aluminum vs. Steel

Selecting the correct tooling backbone requires a dispassionate look at the performance data. To assist engineers in early-stage project routing, Jucheng Precision provides the following definitive technical matrix comparing the three most common mold materials:

Metric	Aluminum (7075-T6)	P20 "Soft" Steel	H13 Hardened Steel
Typical Shot Life	5,000 - 10,000	50,000 - 100,000	500,000+
Conductivity (W/m·K)	130 (Superior)	30 (Average)	25 (Low)
Machining Cost Index	1.0 (Base)	1.8 (Higher)	3.5 (Extreme)
Abrasive Resistance	Poor	Good	Excellent

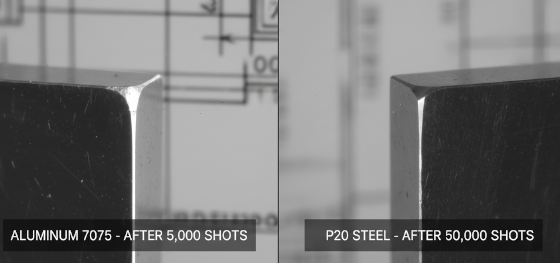

Abrasion Resistance: The Limitations of Soft Tooling

Material compatibility dictates the boundary of aluminum vs steel injection molds. While aluminum dominates for unfilled resins like ABS, PC, and PP, it faces a structural crisis when encountering "Abrasive Sludge." Glass-filled nylons and carbon-reinforced polycarbonates are essentially liquid sandpaper. At 15,000 psi, these microscopic shards will "wash out" the gates and erode the parting lines of an aluminum tool within five hundred shots, leading to aggressive Injection molding flash and dimensional drift. Jucheng Precision toolmakers enforce a strict "Material Gatekeeping" policy. If your BOM requires 30% Glass-Filled Nylon, we will advocate for P20 or H13 steel to ensure your batch maintains its geometric soul. We also manage the "Shut-off Violence"—the point where two mold faces meet. Steel can withstand millions of these impacts, while aluminum parting lines will eventually "peen" or round over. We provide the engineering insurance needed to prevent your tool from dying before your production targets are met.

JUCHENG Protocol: Strategic Tooling Material Selection

Manufacturing excellence at Jucheng Precision is built on the foundation of volume-matched technology. We don't believe in "One-Size-Fits-All" tooling. Our integrated facility allows us to manage your part's entire lifecycle—from the first 500-unit pilot run in aluminum to the million-unit high-stakes automotive launch in hardened steel. We utilize the data gathered during the aluminum "Bridge" phase to optimize the gating and venting of your future steel molds, ensuring zero data loss during the scale-up. Stop being "Procurement Ransom" to tool shops that only offer expensive steel. Leverage our decade of Low Volume Injection Molding mastery to validate rapidly, scale responsibly, and maintain a zero-inventory balance sheet. Not sure if your resin choice supports aluminum or if your volume justifies steel? Upload your 3D CAD file to JUCHENG today for a Free DFM Review. Our experts will identify the most profitable Injection molding materials and tooling roadmap for your brand, ensuring your transition to production is lean, predictable, and market-ready.
