Hearing the aggressive, terrifying clicking sound of an extruder gear brutally grinding against jammed filament is a nightmare every prototyping engineer recognizes instantly. Walking onto the shop floor last week, the acrid, sickening smell of caramelized polymer immediately told me a junior technician had pushed a hotend twenty degrees past the chemical decomposition limit. The nozzle was completely choked with blackened, carbonized plastic. Applying precise 3D Printing Temperature Control dictates the absolute survival rate of any additive manufacturing process. Treating thermoplastic extrusion like a basic hot glue gun guarantees catastrophic dimensional warping and structural delamination.
Selecting the exact thermal bandwidth for Polylactic Acid (PLA) fundamentally alters the molecular cross-linking between individual printed layers. While widely dismissed as a brittle hobbyist material, heavily optimized PLA serves as the undisputed financial backbone for rapid form-fit-function architectural modeling. However, the exact temperature required to melt the polymer battles constantly against the ambient cooling forces trying to shrink it.
Mastering this specific thermodynamic matrix directly eliminates terrifyingly high scrap rates during bridge production. Procurement managers must brutally evaluate glass transition limits, heated bed adhesion dynamics, and localized cooling fan velocities. Precision hardware success relies entirely on trapping the molten polymer in a highly controlled environmental state until the internal stresses neutralize.
content:
How Does Thermal Extrusion Dictate PLA Layer Adhesion?
When Should You Specify PLA for Form-Fit Prototypes?
When MUST You Avoid PLA in Functional Mechanical Testing?
Does Precise Bed Heating Prevent Catastrophic Warping?
PLA vs ABS Economics: Which Cuts Rapid Tooling Costs?
How Does Jucheng Optimize Thermal Dynamics in Shenzhen?
What Are the Most Critical FDM Thermal Defect FAQs?
How Does Thermal Extrusion Dictate PLA Layer Adhesion?
Does extruding plastic at colder temperatures ruin the structural integrity? Absolutely. Dropping the nozzle temperature too low prevents the molten polymer from adequately re-melting the previously deposited layer beneath it, completely destroying the Z-axis tensile strength.

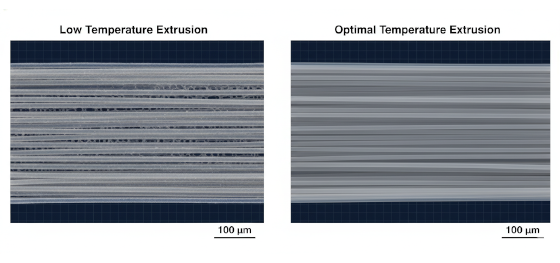

Fused Deposition Modeling (FDM) relies entirely on thermal fusion. If you extrude PLA at a sluggish 185°C, the plastic emerges highly viscous. It lays on top of the cold lower layer like a rigid spaghetti string rather than squishing and bonding microscopically. I have grabbed cold-extruded brackets off a print bed and snapped them cleanly in half with my bare hands; the brittle cracking sound reveals massive microscopic voids between every single pass.
Conversely, incinerating the material at 230°C boils the internal chemical additives. The extreme viscosity drop causes the polymer to ooze uncontrollably from the nozzle during travel moves, leaving horrific stringing and blobbing across the exterior geometry. Precision layer fusion demands an exact, mathematically dialed sweet spot—typically around 205°C to 215°C—to ensure the polymer chains actively entangle across the layer boundary without sacrificing geometric bridging capabilities.
When Should You Specify PLA for Form-Fit Prototypes?
Is standard PLA actually viable for industrial engineering workflows? Yes, when strictly isolated to geometric validation, spatial interference checking, and massive architectural volume models that face absolutely zero kinetic stress.
Hardware developers ruthlessly exploit PLA because it exhibits almost zero thermal shrinkage during the cooling phase. If a designer needs to verify the complex ergonomic curve of a medical device housing, printing it in PLA guarantees the physical object will mathematically match the digital CAD dimension perfectly. Machining that same complex curvature from a solid aluminum billet takes days and burns through expensive spindle hours.
Furthermore, it requires practically zero enclosed environmental control. Because the polymer doesn't warp violently upon contacting ambient room air, facilities can run massive, open-frame printer farms safely. This allows rapid execution of giant, multi-part drone chassis or robotic arm mockups entirely overnight, validating the assembly pipeline long before cutting expensive injection molding steel.
When MUST You Avoid PLA in Functional Mechanical Testing?
Will a PLA bracket survive bolted to an operating electric motor? Never. The exceptionally low glass transition temperature ensures catastrophic structural collapse the moment the ambient environment exceeds a mere 60°C (140°F).
I constantly witness junior engineers make the fatal mistake of testing PLA components outdoors. Leaving a printed dashboard bezel locked inside a hot car during the summer turns the rigid plastic into soft, drooping taffy. The material loses all mechanical resistance, permanently deforming under its own gravitational weight.
You must absolutely upgrade to PETG, ABS, or specialized high-temp Nylons whenever the blueprint demands functional load-bearing under thermal stress. If an automotive prototype must survive near hot exhaust manifolds or pressurized fluid lines, PLA is a massive engineering liability. Subjecting it to intense kinetic friction or chemical solvents guarantees immediate, violent disintegration.
Does Precise Bed Heating Prevent Catastrophic Warping?
Can a cold print surface destroy a fifty-hour manufacturing cycle? Yes. If the first foundational layer releases from the build plate, the entire mechanical structure curls upward, violently crashing into the steel nozzle and destroying the part.

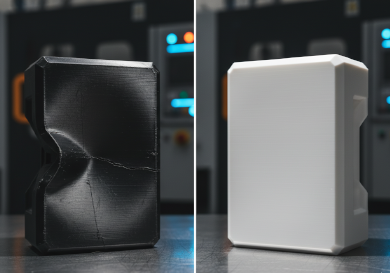

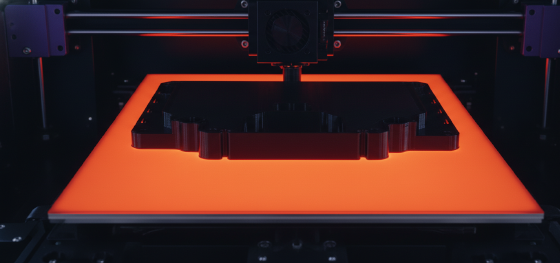

While PLA shrinks significantly less than ABS, printing massive, flat geometries on a cold glass bed still induces severe thermal tension. The hot plastic contracts slightly as it solidifies. Without an active heat source from below, the sharp corners of the part physically pull away from the glass. Elevating the heated bed exactly to the polymer's glass transition threshold (typically 60°C) keeps the bottom layer in a microscopic, semi-pliable state, actively neutralizing these shrinkage forces.
Maintaining perfect thermal equilibrium across the build plate separates elite fabrication from amateur failures. If the center of the bed reads 60°C but the outer edges drop to 45°C due to poor insulation, large industrial prototypes will warp exclusively on one side, ruining the dimensional flatness required for secondary CNC post-processing operations.
| Filament Material | Optimal Nozzle Temp | Glass Transition (Melting Risk) | Engineering Application Profile |
| Standard PLA | 205°C - 215°C | Low (~60°C) | Visual form/fit, rapid concept modeling |
| PETG | 230°C - 250°C | Moderate (~85°C) | Chemical resistance, outdoor enclosures |
| Industrial ABS | 240°C - 260°C | High (~105°C) | Kinetic impact resistance, post-machining |
| Ultem 9085 (PEI) | 350°C - 380°C | Extreme (~186°C) | Aerospace fire-rated structural brackets |
PLA vs ABS Economics: Which Cuts Rapid Tooling Costs?

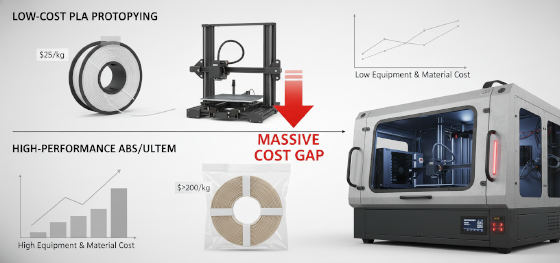

Is paying for massive heated-chamber infrastructure justified for simple prototyping? Not if dimensional validation is your only goal. Running ABS violently inflates overhead costs due to strict environmental requirements.
ABS and high-temperature nylons suffer from brutal thermal contraction. If ambient room air hits an active ABS print, the part warps, delaminates, and splits instantly. To prevent this, facilities must invest heavily in fully enclosed, actively heated build chambers that maintain a continuous 80°C atmospheric blanket around the part. This capital equipment costs tens of thousands of dollars and consumes massive electrical energy.
PLA completely bypasses this financial bottleneck. Because it remains geometrically stable without an expensive heated atmospheric envelope, prototyping farms can deploy hundreds of open-gantry printers simultaneously. This slashes the machine amortization rate to practically zero. Procurement teams aggressively leverage this cheap, reliable polymer to rapidly iterate fifty CAD versions before ever committing to expensive high-temp bridge production.
How Does Jucheng Optimize Thermal Dynamics in Shenzhen?

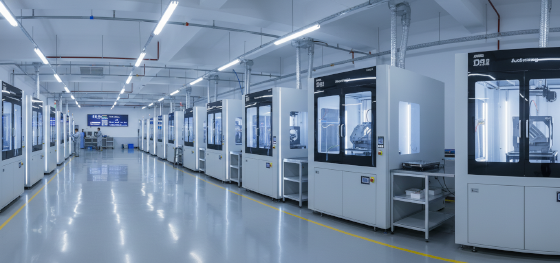

Can uncontrolled shop floor humidity destroy a print job? Yes, instantly. Operating within the [2026] Shenzhen precision manufacturing hub, Jucheng deploys heavily climate-controlled material storage and printing labs to eradicate moisture-induced extrusion failures.

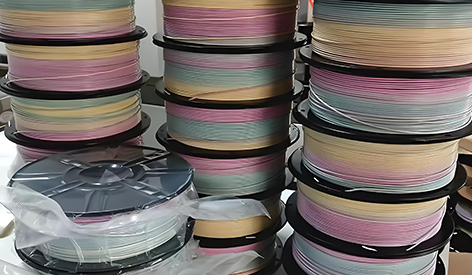

All thermoplastics are hygroscopic. They actively absorb water from the surrounding air. When wet filament hits a 210°C nozzle, the trapped water violently boils into steam, blowing microscopic craters directly into the extrusion line and destroying structural integrity. We ruthlessly eliminate this variable by baking all filaments in industrial desiccant chambers before they ever reach the print head.
Our 8000-square-meter facility merges high-end additive prototyping seamlessly with strict 5-axis CNC post-processing. Backed by uncompromising ISO9001:2015 quality protocols, our engineers execute aggressive Free DFM reviews. We dictate exactly which polymer chemistry survives your specified operational environment, empowering agile hardware iterations without strict MOQ penalties.
What Are the Most Critical FDM Thermal Defect FAQs?
Resolving hardcore thermodynamic vulnerabilities prevents devastating geometric failures when scaling custom plastic prototypes into production.
What causes the printer to leave excessive stringing between gaps?
Stringing occurs when the molten plastic fails to retract cleanly into the nozzle during travel moves. It is heavily exacerbated by extruding at temperatures slightly too hot for the specific chemical blend. Engineers must mathematically drop the hotend temperature by 5°C increments while simultaneously increasing the retraction speed and distance in the slicer software.
Why does the first layer look transparent and scrape the glass?
The Z-axis offset is physically set too close to the heated bed. The nozzle is forcefully grinding into the glass, completely choking off the extrusion path. This prevents the molten polymer from escaping, causing immense back-pressure that ultimately strips the filament at the extruder gear, destroying the print before it even begins.
Does increasing the cooling fan speed improve overall strength?
No, it actually reduces it. While blasting the part with 100% cooling fan power creates incredibly sharp, aesthetically beautiful overhangs, it forces the layers to freeze instantly. This rapid freezing halts the molecular cross-linking process, drastically lowering the ultimate Z-axis tensile strength of the finished mechanical component.
