Observing the frantic schedule of a robotics startup approaching its first field trial reveals a major mechanical bottleneck: the traditional twelve-week wait for production molds. In the high-velocity sectors of autonomous hardware and MedTech, the cost of a delay is measured in lost market share and depleted R&D runways. While high-pressure injection molding requires expensive and slow-to-machine steel tools, the custom reaction injection molding process offers a strategic path to rapid validation. Achieving the structural stiffness and surface quality of mass-produced hardware in weeks rather than months demands a move toward rapid RIM tooling. This approach utilizes high-strength aluminum alloys to bridge the gap from a CAD file to a commercial Beta fleet without the crushing capital commitment of traditional iron.
Tooling economics in oversized enclosures are governed by the machinability of the substrate. I have personally inspected many projects where a six-figure steel tool was ordered too early, only to become a multi-ton paperweight after a minor design pivot. Jucheng Precision addresses these critical financial risks by providing high-tier industrial solutions that prioritize capital agility. Jucheng Precision utilize a fleet of 150+ CNC machines and 25 5-axis Haas/Mazak units to carve complex aluminum mold cavities with sub-micron precision. By delivering a free DFM analysis in 24 hours, Jucheng Precision ensures your oversized parts are optimized for low-pressure liquid chemistry in our Shenzhen factory hub.
Operating under the global quality mandates of ISO 13485 and ISO 14001, Jucheng Precision serves as the high-tier structural partner for global innovation teams. We transform raw liquid chemistry into validated structural hardware, providing a Time-to-market advantage that secures your competitive position. This guide explores the essential NRE savings logic, the physics of Aluminum mold thermal conductivity, and the agile tooling modifications required for mastering rapid RIM tooling to ensure your next fleet of autonomous machines survives the transition from the laboratory to the field.
content:
NRE Reduction: How Aluminum Tools Slash Upfront Investment?
Technical Data: Comparing Aluminum vs. Steel Mold Performance
Cycle Optimization: The Impact of High Thermal Conductivity
Iterative Freedom: Modifying Molds in 48 Hours for Pivots
JUCHENG Hub: Mastering Rapid Mold Fabrication in Shenzhen
FAQ: Real Answers for Lead Times, Sizing, and Tool Life
NRE Reduction: How Aluminum Tools Slash Upfront Investment?
Upfront tooling costs are the primary barrier to high-fidelity prototyping. When executing a rapid RIM tooling project, the initial spend is focused on the machinability of the aluminum billet. In traditional injection molding, the tool must withstand 15,000 psi of molten plastic pressure, requiring hardened steel that is slow to mill and often needs expensive electrical discharge machining (EDM) for internal features. Because the RIM process happens at less than 100 psi, Jucheng Precision can utilize 7075-T6 aluminum, which is machined three times faster than steel. This reduction in machine-hours translates directly into a 70% to 80% saving in non-recurring engineering (NRE) fees, allowing you to allocate more budget to your AI stack and sensor array.
Is aluminum strong enough for a 5,000-unit run?
Yes. Under the low-stress conditions of the RIM cycle, Jucheng Precision’s aluminum tools maintain sub-millimeter tolerances for up to 10,000 shots with zero dimensional drift.
Managing the NRE investment also involves the use of modular mold bases. At our Shenzhen hub, we often utilize "Universal Frames" where only the specific cavity and core inserts are machined for your unique enclosure. This modular insert logic significantly reduces material costs and speeds up the setup phase. When I walk through our CNC bay, I see these inserts being finished on our 5-axis Haas machines in a single operation. This efficiency ensures that part #1 of your Alpha build arrives in the lab with the production-representative quality required for final hardware sign-off, without the financial risk associated with mass-production tooling.
Complexity is more affordable in aluminum than in steel. For medical scanner housings with deep undercuts or integrated cable exits, the mold must move in multiple directions. Jucheng Precision utilize 5-axis trunnion machines to carve the mechanical slides and cam-actions required for these complex tools. Because aluminum is highly machinable, we can deliver these features for a fraction of the cost of steel tool rework. By delivering "Feature-Rich" hardware at a prototype price point, Jucheng Precision helps global innovators move from CAD to field trial with 100% confidence in their mechanical fits.
Technical Data: Comparing Aluminum vs. Steel Mold Performance

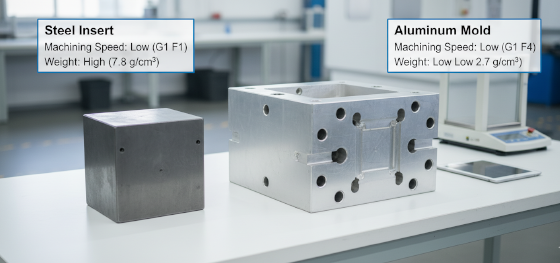

Success in hardware optimization depends on matching the tool material to your production volume. If your design assumes the scaling efficiency of a 10,000-unit run but you only need 500 units, your project is financially unviable. Jucheng Precision provides transparent performance data to help your team find the breakeven point. The following table compares the essential operational variables for a 1.2-meter robotic shell across two different manufacturing paths.
| Metric | Rapid RIM Aluminum Tool | Hardened Steel Injection Tool | Hardware Impact |
| Initial NRE Cost | $3,500 - $9,000 | $50,000 - $150,000+ | 80% Capital Saving |
| Lead Time to T1 | 15 - 20 Days | 60 - 90 Days | Launch 2 Months Early |
| Design Flexibility | High (Easy re-milling) | Low (Slow EDM) | Agile Iterations |
| Cooling Efficiency | Excellent | Moderate | Uniform Curing |
The "Lead Time to T1" data illustrates the primary value of rapid RIM tooling for R&D scaling. While injection molding piece prices are lower, the 90-day delay for tooling creates a window where you have no revenue and no testing data. Jucheng Precision’s aluminum tools are engineered to bridge this gap, delivering production-quality parts in under three weeks. This capital agility allows our clients to invest their resources in critical software and sensor improvements rather than idle manufacturing infrastructure in our Shenzhen hub.
Cycle Optimization: The Impact of High Thermal Conductivity
Thermal management within the mold is the silent hero of large-scale part quality. Aluminum has five times the thermal conductivity of tool steel, which is a massive advantage during the exothermic reaction of polyurethane curing. In a 1.5-meter long part, heat can build up unevenly in thick structural ribs, leading to localized "Hot Spots" that cause internal stress and warpage. Aluminum mold thermal conductivity ensures that this heat is drawn away from the part instantly and dissipated through integrated water-cooling channels. Jucheng Precision designs these tools with optimized cooling paths that snake through the core and cavity, providing the thermal discipline required for ISO 13485 compliant medical hardware.
Does faster cooling mean cheaper parts?
Yes. Shorter curing cycles mean more parts per day, allowing Jucheng Precision to offer competitive unit prices even for oversized hardware.
Geometric stability is further improved by this uniform cooling. I have personally inspected large panels that warped because the steel mold could not regulate the temperature of a 10mm structural boss. Because Jucheng Precision’s RIM process occurs in a relaxed state at low pressure, and the heat is managed by the aluminum tool walls, the final parts are essentially stress-free. This ensures that the door seals and sensor windows of your medical console remain perfectly aligned through thousands of clinical cycles. By controlling the physics of shrinkage and cooling, Jucheng Precision delivers parts that align perfectly with zero manual shimming required in the field.
Surface finish quality also dictates the thermal success of the part. If a mold surface is rough, it creates an insulating layer of micro-air pockets between the resin and the metal. Jucheng Precision utilize its fleet of 150+ CNC machines to achieve Ra 0.8 finishes on all mold cavities. This smooth interface maximizes the heat transfer from the liquid polymer to the aluminum tool, ensuring a perfectly dense integral skin. By delivering hardware with locked-in precision, Jucheng Precision allows your assembly team to focus on the high-value sensor calibration rather than manual hardware adjustments, providing the unyielding foundations your autonomous innovation requires.
Iterative Freedom: Modifying Molds in 48 Hours for Pivots
Hardware development in the current market is a statistical race of iterations. The ability to modify your tool is just as valuable as the initial speed. Aluminum molds used in rapid RIM tooling offer a level of agile tooling that hardened steel cannot match. If a field trial reveals that an internal mounting boss needs to move by 20mm to accommodate a new LiDAR sensor, Jucheng Precision can weld new aluminum onto the mold face and re-machine the feature in our CNC bay within 48 hours. This flexibility ensures that your hardware evolves at the same pace as your code, providing a clear path to market for innovative designs without resetting the production clock.
Can I add texturing after the mold is made?
Yes. Aluminum's high machinability allow Jucheng Precision to perform secondary laser texturing to update VDI grains or brand logos between Beta batches.
Managing engineering changes (ECN) is a core service at Jucheng Precision. Our engineering team performs a secondary DFM review on every design revision to ensure the RIM vs Injection Molding Lead Times are not compromised by the update. We utilize our 5-axis trunnion machines to prioritize R&D modifications, ensuring that your Alpha-2 or Beta-1 hardware arrives in the lab before the momentum of the project stalls. This iterative speed is what allows our clients to outperform competitors who are anchored to $100,000 "Frozen" steel tools that are too expensive and slow to change. Jucheng Precision provides the mechanical sandbox you need to refine your innovation into a market leader.
Scaling from the first 5 units to a commercial deployment is managed through our No MOQ policy. We understand that your initial market entry might require 50 units in month one and 200 units in month three. Our rapid RIM tooling is engineered to bridge this gap, providing production-quality hardware for your entire first year of sales. This capital agility allows our clients to invest their resources in critical AI algorithms and customer acquisition rather than idle manufacturing infrastructure. By delivering "Iterative-Ready" hardware, Jucheng Precision ensures your innovation survives the volatile transition from concept to mass adoption in the Shenzhen hub, providing the rigid, precise foundations your autonomous fleet requires.
JUCHENG Hub: Mastering Rapid Mold Fabrication in Shenzhen

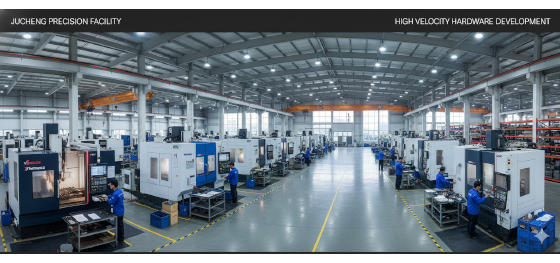

Dominating the large-format hardware market requires a partner that can scale from a single functional prototype to a commercial deployment of 5,000 units with industry-leading speed. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering high-tolerance rapid RIM tooling and structural industrial robot parts. Jucheng Precision provides the bridge to production that ensures your innovations move from CAD to field trial with 100% metallurgical confidence. Jucheng Precision provides free DFM analysis in 24 hours to ensure your design is optimized for the unyielding reality of the field, whether you are building a medical diagnostic scanner or an autonomous industrial tractor.
Integrating your structural design with Jucheng Precision’s expertise ensures that your tooling decision is based on performance data, not guesswork. Jucheng Precision offer comprehensive design reviews identifying potential gas-trap zones or thermal-expansion risks in your design before they become field failures. Whether you are building an autonomous vineyard scout or a multi-part MRI housing, Jucheng Precision provides the rigid, precise, and chemicals-optimized foundations that keep your innovation moving through the high-speed cycles and the years of hard labor.
Our facility is equipped with dedicated high-pressure RIM assembly cells and dedicated ISO 13485 and ISO 14001 quality labs, allowing us to manage the entire hardware lifecycle in one location. Jucheng Precision manage the complexity of multi-material bonding and automotive-grade finishing so your engineering team can focus on the motion control and the AI. By combining Shenzhen's speed with industrial-grade material verification and global quality standards, Jucheng Precision remains the preferred partner for the world's most aggressive hardware challenges. Contact the Shenzhen hub today to start your project.
FAQ: Real Answers for Lead Times, Sizing, and Tool Life
What is the maximum part size for a rapid RIM tool?
We regularly manufacture monolithic structural panels up to 2,500mm in length with consistent wall thickness and zero voids.
Can Jucheng Precision provide the CMM inspection reports?
Yes. Jucheng Precision provide full dimensional verification reports and material batch logs for every production batch in our Shenzhen facility.
Is aluminum tooling really 70% cheaper than steel?
Yes. By utilizing high-strength 7075 aluminum and low-pressure machines, we eliminate the need for heavy steel molds and massive clamping presses.
How long does it take to build an aluminum RIM mold?
Aluminum rapid tools of this size are typically completed and delivering T1 samples in 15 to 20 business days.
Can I change my design after the tool is manufactured?
It is much easier in RIM. Since we use aluminum molds, we can often weld and re-machine features in 48 hours.
Tooling debt and warped panels are absolute innovation killers for high-end robotic systems. Partnering with Jucheng Precision ensures that your functional iterations are built with the unyielding polyurethane reaction injection molding and specialized rapid RIM tooling knowledge the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the unyielding foundation your autonomous fleet requires.
