SLA 3D Printing: Achieving Sub-Micron Surface Quality

Light isn't usually considered a tool for carving, but in the realm of high-precision manufacturing, photons have become the ultimate sculptors. While most methods in the modern 3D printing process rely on melting plastic filaments or sintering metal powders, there is a more elegant approach that operates at the molecular level. This is sla 3d printing, or Stereolithography. It is the original additive technology, yet it remains the undisputed gold standard for surface finish, geometric complexity, and microscopic detail. When a design requires the smoothness of an injection-molded part without the six-week wait for a steel tool, SLA is the primary technical sanctuary for engineers and designers alike.

At Jucheng Precision, we don't treat resin printing as a desktop curiosity. We operate at the industrial tier, where large-format machines and engineered photopolymers are utilized to create functional housings, transparent lenses, and complex medical prototypes. We understand that success in sla 3d printing is found in the management of the UV laser’s focal point and the chemical purity of the resin bath. If the laser is poorly calibrated or the post-curing cycle is skipped, the result is a brittle, warped component that fails to represent the digital master. This guide explores the molecular mechanics of vat polymerization, the physics of isotropic bonding, and why JUCHENG’s high-capacity facility is the preferred partner for the world’s most demanding aesthetic and functional models.

Transitioning from a liquid pool to a solid object requires more than just a bright light. It requires a synergy of high-end software and rigid hardware to handle the delicate balance of surface tension and chemical cross-linking. Let us examine the technical pillars that define professional SLA manufacturing and see how it redefines the integrity of your most detailed designs.

content:

Mechanics of Ultraviolet Curing: The Physics of Light

Surface Integrity: Why SLA Wins the Aesthetic War

Material Specialization: From Tough to High-Temp Resins

Post-Processing Rigor: Cleaning, Support, and Curing

JUCHENG’s Large-Format Power: Monolithic Innovation

Mechanics of Ultraviolet Curing: The Physics of Light

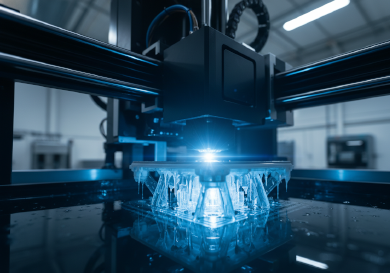

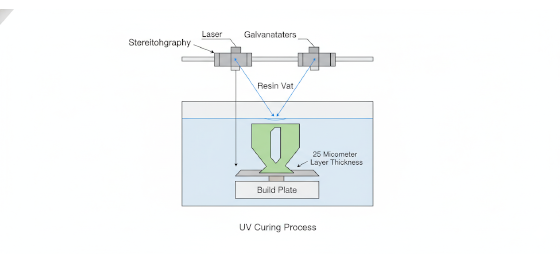

The fundamental brilliance of sla 3d printing is the concept of photopolymerization. The process takes place inside a large "vat" filled with a liquid, UV-sensitive resin. Unlike FDM machines that extrude plastic like a glue gun, an SLA machine uses a highly focused ultraviolet laser—typically operating at a precise wavelength of 355nm. This laser is directed by a pair of precision mirrors, known as galvanometers, which scan the laser beam across the resin surface with incredible speed. Wherever the light hits the liquid, a chemical reaction is triggered. The photoinitiators in the resin absorb the UV energy and cause the liquid monomers to bond together into long, solid polymer chains. This happens in a fraction of a second, effectively "drawing" the 2D cross-section of the part onto the liquid surface.

Once a single layer is cured, the build platform moves. In the industrial "top-down" machines at Jucheng Precision, the platform lowers into the resin by a specific increment—often as thin as 25 microns (0.001 inches). A recoater blade then sweeps across the top, ensuring a perfectly level and fresh layer of liquid resin is ready for the next laser pass. This cycle repeats thousands of times to build the part vertically. Because the liquid-to-solid transition is a "low-stress" event, the resulting part is not subjected to the heavy thermal gradients or mechanical pressures found in the metal 3D printing process. This mechanical stillness is what allows SLA to achieve the world’s tightest tolerances in additive manufacturing, making it the primary choice for complex electronic housings and medical prototypes that must fit perfectly into existing assemblies.

Surface Integrity: Why SLA Wins the Aesthetic War

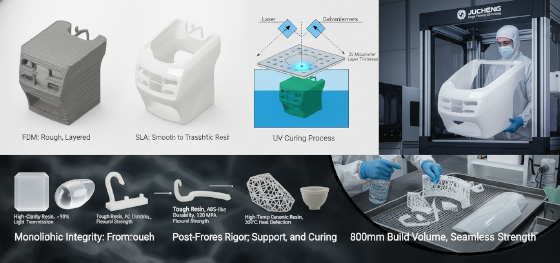

The visual hallmark of a high-end prototype is the absence of a "manufactured" texture. In the sla 3d printing environment, surface integrity is defined by the chemistry of the bond. Because each new layer of resin is cured directly onto the previous one while both are still chemically active, the bonds between layers are as strong as the bonds within the layer itself. This results in an "Isotropic" part—a component with uniform mechanical properties and a nearly invisible stair-step effect. When you run your finger across an SLA part, it doesn't feel like a series of stacked layers; it feels like a solid, homogeneous block of plastic.

This microscopic smoothness is why JUCHENG utilizes SLA for cosmetic "look-and-feel" prototypes. It provides a perfect substrate for secondary finishing. An SLA part requires significantly less sanding than an SLS or MJF part to reach a high-gloss finish. For our automotive clients, we can take a large-format SLA print and apply a premium clear coat or a metallic paint that looks indistinguishable from a production-grade part. Furthermore, the precision of the laser ensures that intricate engravings, sharp corners, and thin-walled features are crisp and well-defined. We don't just print a shape; we provide a surface that is ready for the boardroom or the showroom. In a market where first impressions are everything, the superior surface integrity of industrial SLA is the ultimate competitive shield for your innovative designs.

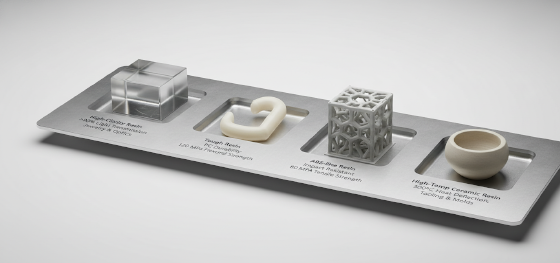

Material Specialization: From Tough to High-Temp Resins

Modern photopolymer chemistry has evolved into a diverse engineering palette. While early resin prints were brittle, Jucheng Precision sources specialized resins designed for functional performance. For instance, our "Tough" resins offer high impact resistance and elongation, making them ideal for functional snap-fits and living hinges that must survive repeated cycles without snapping. These materials allow engineers to perform functional testing on prototypes that previously would have required expensive injection molded samples.

For the medical and high-tech sectors, we utilize "High-Temp" resins that can withstand temperatures exceeding 200°C without warping. These are used for low-volume molding inserts or electrical enclosures exposed to intense heat. We also specialize in "Water-Clear" resins. When processed through JUCHENG’s proprietary polishing and UV-protection cycle, these parts achieve the transparency of glass. This capability is vital for the 3D printing process of light pipes, lenses, and transparent fluid manifolds where internal flow must be visually verified. By selecting a resin that matches the mechanical destiny of your part, we bridge the gap between a visual mockup and a functional prototype. We treat material selection as an engineered decision, ensuring the chemistry of the light-cured polymer matches the rigor of your physical application.

Post-Processing Rigor: Cleaning, Support, and Curing

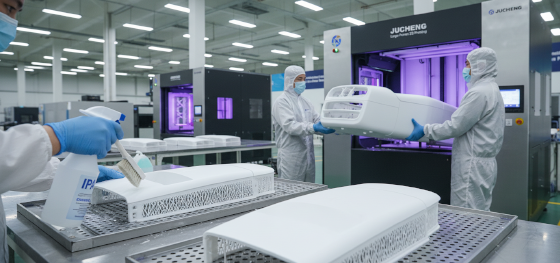

A raw part straight out of the resin vat is technically incomplete. It is in a "green" state—partially cured and covered in a film of sticky liquid resin. At Jucheng Precision, we believe that the quality of sla 3d printing is decided in the post-processing lab. The first step is a multi-stage ultrasonic bath using High-purity Isopropyl Alcohol (IPA) to remove every trace of uncured resin from the part’s intricate features. Any residue left behind will cure during the final stage, potentially clogging small holes or ruining the surface finish.

After cleaning, we manually remove the support structures. These are the thin, needle-like columns that hold overhanging features in place during the print. JUCHENG technicians use surgical precision to Peeling off these supports, followed by a light sanding to ensure the contact points are invisible. The final, mandatory step is UV Post-Curing. The part is placed in a specialized chamber where it is flooded with high-intensity UV light and, in some cases, heat. This completes the cross-linking reaction, locking in the material’s final mechanical properties and dimensional stability. Without this final cure, the part will stay soft and brittle. We manage this entire cycle with the technical rigor of a cleanroom facility, ensuring that when you receive your parts, they are dry, stable, and ready for the most demanding engineering scrutiny.

JUCHENG’s Large-Format Power: Monolithic Innovation

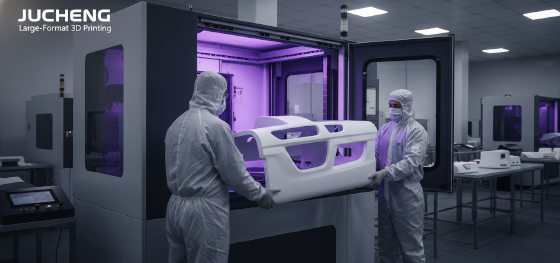

The greatest limitation of many 3D printing providers is the "size barrier." Most desktop machines can only print parts the size of a coffee mug. At Jucheng Precision, we have broken this barrier by operating a fleet of large-format industrial SLA machines capable of printing monolithic parts up to 800mm in a single piece. This is a game-changer for the automotive and appliance industries. Instead of printing five different sections and gluing them together—which introduces structural weak points and visible seams—we can print a full dashboard panel or a large medical device housing as a single, high-integrity block.

Printing monolithic large parts requires an expert understanding of resin shrinkage and build plate adhesion. JUCHENG’s engineers utilize advanced compensation algorithms to account for the way large volumes of resin react as they cure. We also offer integrated secondary services, including CNC Machining for critical mating surfaces on these large prints. This hybrid approach—3D printing for complexity and CNC for tolerance—ensures that your massive prototypes are not just visual models, but functional engineering components. When you receive a large-scale shipment from JUCHENG, you are getting the benefit of optimized physics and massive manufacturing capacity. Whether you are building the next generation of satellite hardware or a high-performance EV interior, our large-format SLA protocols ensure your vision is delivered with absolute precision and zero seams. Contact Jucheng Precision today for a technical DFM review and see how our industrial sla 3d printing can clarify and elevate your next manufacturing challenge.
