Why Structural foam reaction injection molding Solves the Sink Mark Crisis

Structural efficiency in oversized hardware is often sabotaged by the "Mass-to-Stiffness" penalty. When a design engineer finalizes a CAD model for a 1.5-meter industrial equipment bezel or a heavy-duty robotic chassis, they are forced into a dangerous compromise: use thick solid walls for rigidity and suffer from extreme weight, or use thin walls and risk structural failure. In the hyper-agile landscape of 2026, navigating this requirement for high-modulus, lightweight oversized hardware requires the strategic deployment of Structural foam reaction injection molding. This advanced branch of reaction injection molding materials engineering focuses on the creation of a "Sandwich Morphology"—a dense, solid external skin integrated with a lightweight, cellular internal core. Jucheng Precision operates as a high-fidelity manufacturing sanctuary in the Shenzhen precision manufacturing hub, providing the technical depth to bridge the gap between "heavy solid enclosures" and "agile structural assets." We don't just "reduce weight"; we engineer specialized expansion systems that ensure your largest designs are 30% lighter while remaining ten times stiffer than standard thin-walled shells.

Establishing a resilient launch for oversized structural components demands the rejection of traditional injection molding limitations. Amateurs often struggle with the "Cycle Time Anchor" when attempting to mold parts with sections thicker than 6mm, leading to exorbitant part prices. Jucheng Precision eliminates this "Economic Drag" by utilizing the unique expansion chemistry of structural foam. Because the internal foaming pressure forces the material against the tool walls without the need for massive hydraulic tonnage, we deliver parts up to two meters in length with 80% less in upfront Tooling CapEx. Whether you are developing a mobile medical workstation or a factory automation guard, our structural foam solutions allow you to bypass the "Weight Barrier" and launch your product in weeks, not months. This guide deconstructs the physics of the sandwich structure, the necessity of acoustic and thermal insulation, and why JUCHENG’s "Cellular Protocol" is the mandatory foundation for anyone developing Custom large plastic enclosures for 2026 market entry.

content:

How does structural foam RIM create a high-strength sandwich structure?

What are the weight vs. stiffness advantages for oversized enclosures?

Why is structural foam RIM the best solution for thermal and acoustic insulation?

How to prevent sink marks in ultra-thick sections using foaming agents?

How does JUCHENG achieve Class-A finishes on foamed polyurethane parts?

Frequently Asked Questions: Structural Foam RIM

How does structural foam RIM create a high-strength sandwich structure?

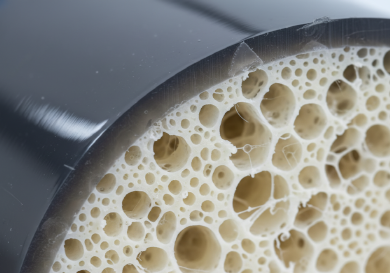

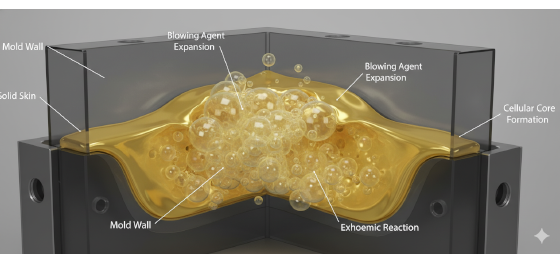

Molecular expansion inside a closed tool steel cavity allows for the violation of traditional wall-thickness limits. Structural foam reaction injection molding is a process where a chemical "Blowing Agent" (typically nitrogen or CO2) is introduced into the liquid polyurethane mixture. When this mixture enters the low-pressure mold, the gas expands, creating millions of microscopic closed cells in the center of the part. However, because the mold surface is cooler than the expanding core, the liquid polyurethane at the interface solidifies rapidly into a non-porous, high-density skin. This results in a "Sandwich Effect": two rigid outer shells connected by a lightweight internal web. At Jucheng Precision, we calibrate this "Skin-to-Core" ratio with surgical precision. We turn "liquid potential" into "structural girders," providing oversized hardware that possesses the flexural modulus of solid plastic but with a 20% to 40% reduction in total mass.

What are the weight vs. stiffness advantages for oversized enclosures?

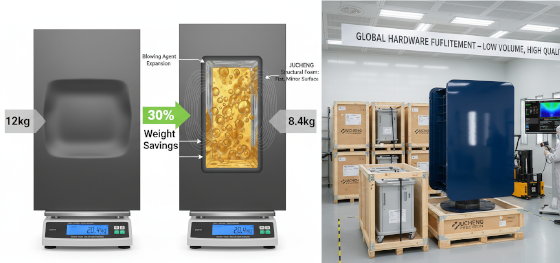

Mechanical leverage dictates the ROI of your shipping and assembly logistics. The primary reason engineers specify Structural foam reaction injection molding for Custom large plastic enclosures is the dramatic increase in the "Moment of Inertia." By increasing the part's wall thickness to 10mm or 15mm using structural foam, you exponentially increase its resistance to bending while actually *reducing* the weight compared to a 6mm solid part. This "Lightweight Stiffness" is vital for large-scale kiosks and medical carts that must be easily moved by clinicians but remain rigid enough to support heavy diagnostic displays. Below is the technical performance matrix our engineers use to guide clients during the Low volume large plastic parts design phase:

Why is structural foam RIM the best solution for thermal and acoustic insulation?

Thermodynamic passivity allows for the neutralization of unwanted environmental noise and heat. The closed-cell core of a Structural foam reaction injection molding part acts as a series of microscopic air pockets that scatter sound waves and resist heat transfer. This inherent "Insulation Sovereignty" is a mandatory requirement for server rack housings, laboratory diagnostic enclosures, and spa equipment cabinets. Jucheng Precision engineers utilize these properties to eliminate the need for secondary foam linings or expensive sound-dampening adhesive pads. By molding the insulation directly into the structural shell, we reduce your Bill of Materials (BOM) count and ensure your high-performance hardware operates with the "Silent Premium" feel your brand demands. We turn "vibration-prone plastic" into "stable acoustic shields."

How to prevent sink marks in ultra-thick sections using foaming agents?

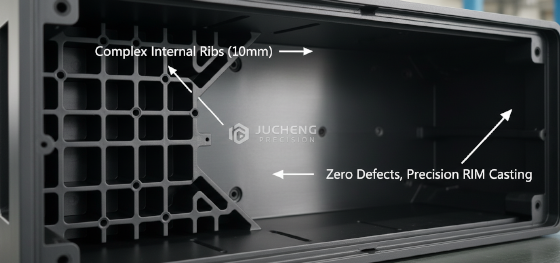

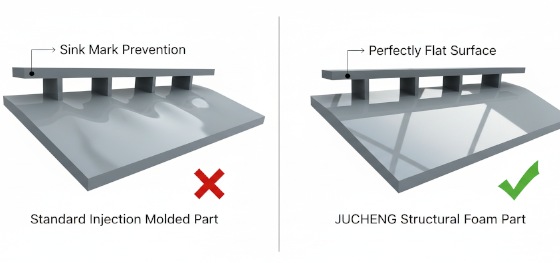

Dimensional sovereignty is earned through the rejection of standard injection molding physics. In the Large plastic parts manufacturing world, the "Sink Mark" is the ghost of excessive thermal mass. Standard molding rids the surface of perfection because the core shrinks and pulls the skin inward. In Structural foam reaction injection molding, the internal gas pressure pushes the plastic outward against the tool walls throughout the entire cooling cycle. This "Internal Outward Force" completely neutralizes the shrinkage pull, delivering 20mm thick sections that are perfectly flat on the cosmetic face. This capability allows JUCHENG to design massive strengthening ribs and mounting points directly into Large plastic medical enclosures, ensuring your hardware possesses the structural spine for clinical survival without sacrificing the retail-ready soul your design requires.

How does JUCHENG achieve Class-A finishes on foamed polyurethane parts?

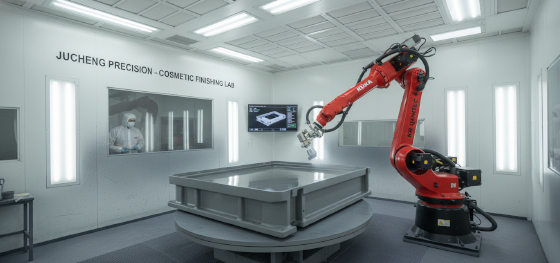

Manufacturing excellence at Jucheng Precision is built on the foundation of the "Zero-Artifact" finish. While the internal core is foamed, the high-density skin is solid and receptive to coatings. Our facility integrates automated Painting and finishing large plastic parts using automotive-grade 2K systems. We perform a surgical surface audit, sanding any minor parting line marks to ensure the large 2-meter canvas is perfectly level. Because RIM structural foam has a low coefficient of thermal expansion, the paint layer won't crack or peel even after intense environmental soak tests. We provide full material lot traceability and Ra inspection reports, ensuring your hardware arrives showroom-ready and documented for brand dominance. Stop gambling your luxury identity on crude industrial mockups. Leverage our decade of large-scale foamed replication mastery to validate rapidly and scale profitably.

Frequently Asked Questions: Structural Foam RIM

Question: How much weight can I save by using structural foam instead of solid RIM?
   Answer: On average, our clients see a 20% to 35% reduction in total part mass, depending on the wall thickness and foaming agent concentration, without any loss in flexural stiffness.

Question: Is structural foam RIM durable enough for industrial robot bases?
   Answer: Absolutely. Jucheng Precision utilizes high-impact polyurethanes that mimic the mechanical spine of ABS/PC blends, making them ideal for oversized structural frames in warehouse robotics.

Question: What is the maximum thickness JUCHENG can mold without sink marks?
   Answer: We have successfully delivered Custom large plastic enclosures with structural sections up to 25mm (1 inch) thick while maintaining a flawless, dimple-free cosmetic face.

Manufacturing sovereignty on a large scale requires a partner who understands that lightness is a structural asset. Jucheng Precision eliminates the friction of vendor-hopping by offering integrated CNC, RIM, and high-fidelity finishing under one ISO 9001 certified roof. Stop compromising your large-format designs with heavy solid shells or expensive steel. Leverage our decade of structural foamed replication mastery to validate rapidly and launch profitably. Contact our technical team today for a free DFM review and see how we can turn your digital intent into a structurally sovereign, lightweight reality that is documented for success.
