Vertical Welding: Techniques, Challenges, and Tips

Vertical welding is a fundamental skill in the fabrication and construction industries, where joining metals in non-flat positions is often unavoidable. This technique involves depositing weld material along a vertical plane, which presents unique challenges due to gravity's effect on molten metal. Understanding vertical weld positions and mastering various methods, such as vertical MIG welding and vertical arc welding, is essential for producing strong, defect-free joints. In this article, we'll explore key techniques, common issues like bad vertical welds, and practical vertical welding tips to enhance your proficiency. Whether you're a novice or an experienced welder, grasping these concepts can improve efficiency and safety in projects ranging from structural steelwork to pipeline installations.

content:

What Does "Vertical Welding" Mean?

Different Tools for the Job

What Does a Bad Weld Look Like?

Helpful Hints for Better Welding

What Does "Vertical Welding" Mean?

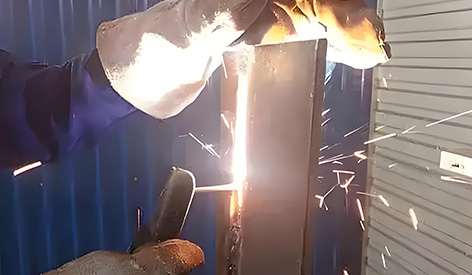

Think about drawing a line on a wall from the floor up to your head. That's what vertical weld position is like for a welder. It's simply the name for when the seam they are working on is straight up and down. Because of gravity, this position makes the job much harder. If the welder goes too slow or gets too close, the molten metal can sag or even drip, creating a big mess. To do this well, they have to move carefully and use special tricks to keep the "molten glue" (the weld puddle) in place.

Different Tools for the Job

Just like an artist uses different brushes, welders use different tools for different jobs. Here are some common ones used for vertical welding:

• Vertical MIG Welding: Imagine a hot glue gun that uses a thin metal wire instead of a glue stick. That's a lot like MIG welding. In vertical MIG welding, the machine feeds the wire automatically. The welder has to carefully control the gun's speed and angle to build the weld upwards without letting it drip. It's a popular method because it can be pretty fast.

• Vertical Arc Welding: This is a bigger category that includes a few methods. The main idea is that an electric "arc" (like a tiny, super-hot lightning bolt) melts the metal to stick it together. It’s the powerful spark that does the actual welding.

• Vertical Up Stick Welding: This is a very tough, old-school way to weld. The welder uses a metal rod (a "stick") that is coated in a special material. As they weld, the coating burns and creates a gas that protects the hot metal. For vertical up stick welding, the welder always starts at the bottom and moves the stick upwards. It’s like building a staircase out of molten metal, one small step at a time. This is a strong method great for building bridges and skyscrapers.

• Vertical Flux Core Welding & Flux Core Vertical Welding: These are two names for a very similar and super handy method. The special wire used in this process is filled with a magical powder called "flux". When it gets hot, the flux creates its own protective gas and even forms a slag blanket over the fresh weld. This blanket protects the weld as it cools. The best part? It works great outside, even on windy days. Whether you call it vertical flux core welding or flux core vertical welding, it's a go-to for outdoor projects like fixing fences or building metal sculptures.

What Does a Bad Weld Look Like?

Sometimes, a weld doesn't turn out right. Let's call this a bad vertical weld. It's important to spot these because a weak weld can be dangerous. Here's what can go wrong:

• Drips and Sagging: The weld metal looks like it's melting and sliding down the wall. This happens when the welder uses too much heat or moves too slowly.

• Tunnels and Holes: Sometimes, tiny holes or tunnels called "porosity" can form inside the weld. This is like a sponge made of metal – it's not strong! This often happens if the metal was dirty or windy blew the protective gas away.

• Uneven Edges: The weld might carve a groove into the base metal without filling it, which is called an "undercut." It looks like a little ditch on the side of the weld.

A good weld, on the other hand, looks neat and even, like a row of solid dimes stacked together.

Helpful Hints for Better Welding

So, how do you make a great vertical weld and avoid a bad vertical weld? Here are some simple vertical welding tips:

1. Fight Gravity: Always remember that gravity is your enemy. Your job is to outsmart it. For most vertical welding, it's best to start at the bottom and move upwards.

2. Move in a Pattern: Don't just go straight up. Welders often move the tool in a slight zig-zag, "weaving" it side to side as they go up. This helps spread the heat and metal evenly.

3. Keep it Clean: Always clean the metal before you start, just like you would wash your hands before using glue. Any dirt, rust, or oil can cause holes and weak spots.

4. Practice Makes Perfect: No one gets it right the first time! The best way to learn is to practice on some scrap metal. Try different speeds and patterns until you feel in control of the weld puddle.

Vertical welding is a challenging but super important skill. By using the right method—whether it's vertical MIG welding, tough vertical up stick welding, or windy-day-friendly flux core vertical welding—and by following the key vertical welding tips, welders can build strong, safe, and neat welds in the vertical weld position. Welding plays a significant role in sheet metal manufacturing.
