Engineers designing heavy-duty structural frames, material handling machinery, and industrial crane booms face immense mechanical stresses that standard carbon steels cannot support. Opting for alloy steel sheet metal fabrication provides the extreme load-bearing capacity and impact resistance needed to satisfy strict fatigue limits. Unlike standard carbon sheets, alloy steel integrates targeted quantities of transition metals to dramatically enhance physical hardenability and wear resistance.
Relying on thin carbon plates for high-load applications is a major design risk, as the material will buckle under fatigue or crack under sudden shock loads. To compensate, designers are often forced to increase plate thicknesses, which rapidly inflates shipping weight, slows down assembly speeds, and reduces the fuel efficiency of mobile machinery. Specifying high-strength structural alloys completely resolves these weight bottlenecks.
Balancing the material's enhanced chemical hardness against standard forming tooling is what separates clean, robust structural chassis from split, micro-cracked components. Let's examine how alloying elements modify steel metallurgy, analyze the heavy equipment required to cut and bend thick high-strength plates, and review how to scale your custom parts successfully.
content:
What are Alloy Steels?
Laser Cutting and Bending High-Strength Alloys
Custom Alloy Steel Parts Delivered Globally by JUCHENG
FAQ: Critical Questions About Alloy Steel Sheet Metal Fabrication
What are Alloy Steels?
How do chemical alloying elements improve the physical properties of carbon steel?
Alloying involves adding precise percentages of elements like chromium, molybdenum, manganese, and nickel to standard carbon steel to elevate yield strength, fracture toughness, and wear limits.
Standard structural carbon steel is highly ductile, but custom alloy steel allows us to reach unprecedented hardness ranges. In the B2B sector, engineers frequently specify high-strength low-alloy (HSLA) steels because they optimize structural weight. HSLA steels incorporate micro-additions of vanadium or titanium to build refined crystalline matrix boundaries.
For extreme environments requiring superior wear resistance, alloys enriched with chromium and molybdenum (commonly known as chromoly steels) are preferred. These elements significantly elevate the material's response to heat treatment, ensuring that the core of thick plates maintains outstanding structural toughness under continuous cyclic stress, preventing sudden crack propagation in the field.

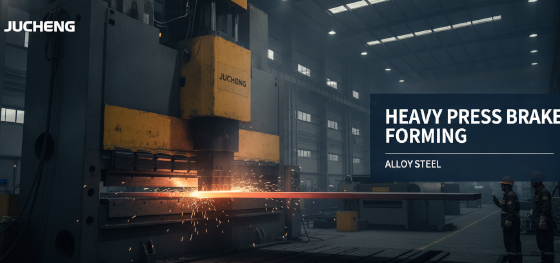

Laser Cutting and Bending High-Strength Alloys
Why does processing alloy steel require heavy-duty manufacturing equipment?
The high yield strength of structural alloys requires immense press force to initiate plastic deformation and demands high-power laser optics to slice through thick gauges without leaving severe edge dross.
To control capital budgets during alloy steel sheet metal fabrication, production teams must understand the material's physical resistance to forming. Because structural alloys possess an exceptionally high yield strength, standard press brakes will stall under the load. We deploy heavy-duty, high-tonnage CNC press brakes equipped with hardened tool steel die sets to execute precise bends.
Controlling the springback is another major engineering hurdle when forming HSLA plates. Due to high elastic limits, the metal exhibits severe angular rebound when the press punch retracts. To compensate, our programmers utilize advanced 3D unfolding software to pre-calculate over-bending angles. We also use generous inner radii because sharp punch dies will instantly tear the outer fibers of the plate along the fold line.

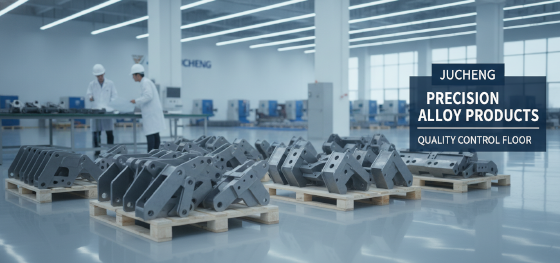

Custom Alloy Steel Parts Delivered Globally by JUCHENG
How does JUCHENG guarantee tight tolerances on heavy-duty alloy steel fabrications?
We operate high-power fiber laser cutters and high-tonnage press brakes managed by skilled operators, utilizing precise die clearances to prevent cracking on thick plates.

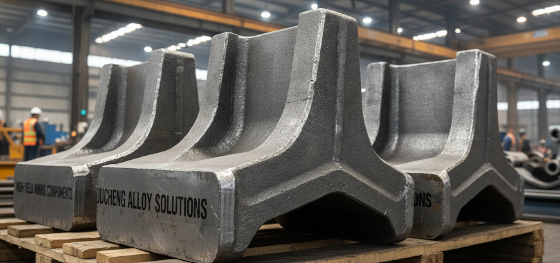

Selecting this premium, high-hardness sheet metal material ensures that your heavy machinery housings maintain maximum structural integrity under extreme continuous stress. JUCHENG integrates advanced heavy-plate shearing, multi-axis punching, and high-force forming into our full-service production lines. This allows us to transition your 3D CAD models into fully finished, durable alloy brackets with extreme dimensional accuracy.
We process a wide range of structural steel gauges, matching each to its mathematically calculated springback allowances. Our technical queue provides a 24-hour free DFM analysis to evaluate your CAD models, checking stress concentrations and minimum bend parameters before cutting steel. Supported by our no MOQ policy and rapid delivery guarantee, we manage your project from initial flat pattern cutting to final, fully integrated packaging.
FAQ: Critical Questions About Alloy Steel Sheet Metal Fabrication
How does welding high-strength alloy steel differ from welding standard carbon steel?
Alloy steels are highly susceptible to hydrogen cracking in the weld zone due to their high hardenability. To weld alloys successfully, we preheat the weld zone to slow down the cooling rate, utilize low-hydrogen welding rods, and perform meticulous post-weld heat treatments to stress-relieve the joint, ensuring a structurally solid fusion that resists fatigue.
What causes edge micro-cracking during laser cutting on HSLA plates?
Laser cutting utilizes intense heat to melt the metal, which can create a brittle, hardened heat-affected zone along the cut edge. If the part is subsequently folded near this edge, the brittle material will instantly crack. We prevent this by optimizing laser cutting feed speeds and deploying high-pressure nitrogen assist gas to cool the cut zone, minimizing the heat-affected zone.
Does plate thickness affect the recommended minimum bending radius?
Yes, heavily. While soft mild steels can handle a tight inner radius equal to their thickness, high-strength alloy steels require much larger bending radii (often three to five times the plate thickness depending on the grade). Forcing thick alloy plates into standard tight V-dies will exceed the ultimate tensile limits of the material, causing complete structural splitting.
How does JUCHENG prevent tool damage during alloy steel sheet metal fabrication?
High-hardness alloys exert extreme force on press dies and shearing blades, causing rapid tool wear. To protect our tooling and maintain precise tolerances, we utilize premium, through-hardened tool steel punch heads, apply anti-friction coatings to our dies, and continuously monitor press tonnages using digital sensors to prevent overloaded stress conditions.
