Automotive Vacuum Casting Prototypes: IATF 16949 Compliant Solutions

Precision in automotive engineering leaves zero margin for material ambiguity. When navigating the arduous journey from initial styling clay models to the final assembly line, Tier-1 suppliers and OEMs encounter a critical validation gap. Traditional additive manufacturing fails to simulate the high-heat resistance and tactile sophistication required for modern vehicle interiors. Conversely, production-grade steel tooling requires a six-figure financial sacrifice and a lead time that threatens market-entry timelines. Bridging this chasm requires the strategic deployment of Automotive Vacuum Casting Prototypes. This technology acts as the technical bridge within the broader vacuum casting prototyping framework, delivering high-fidelity components that possess the exact mechanical spine and aesthetic soul of final production hardware. Jucheng Precision operates under a rigorous IATF 16949-compliant workflow, ensuring that every textured dashboard trim or optically clear headlight lens behaves like a production-intent part long before the steel mold is ever quenched. We provide the manufacturing sovereignty needed to survive rigorous road-test cycles and executive cosmetic audits.

Achieving the "Showroom Standard" dictates the success of a vehicle's interior haptics and exterior lighting signatures. In an era where consumer perception is driven by soft-touch surfaces and crystalline light guides, relying on crude industrial mockups is a liability. Jucheng Precision engineers partner with automotive designers to select specialized polyurethane resins—from high-impact ABS simulants to UV-stabilized clear grades—that ensure physical test data is 100% predictive of mass production behavior. The following analysis explores the strategic necessity of casting in modern vehicle development, focusing on compliance, optics, and thermal endurance.

content:

Interior Trim Mastery: Replicating Class-A Haptics

Optical Sovereignty: High-Clarity Lighting Prototypes

Thermal Endurance: Functional Under-the-Hood Testing

IATF 16949 Standards: The Road to PPAP Approval

Interior Trim Mastery: Replicating Class-A Haptics

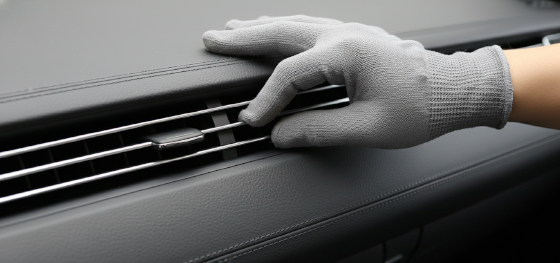

Tactile feedback remains the ultimate judge of a vehicle's premium status. Designers spend thousands of hours perfecting the "Grain" of a center console or the "Click-Feel" of an air vent adjustment tab. Automotive Vacuum Casting Prototypes are the only methodology capable of capturing the microscopic surface energy required for Class-A cosmetic validation. Unlike 3D printing, which leaves digital striations, liquid silicone molding captures the exact VDI 3400 spark texture or Mold-Tech leather grain applied to the CNC-machined master pattern. Jucheng Precision technicians utilize surgical precision to hide parting lines along geometric shadow lines, ensuring that your interior prototypes are indistinguishable from injection-molded hardware. We utilize specialized "soft-touch" urethanes to simulate overmolded elastomers on steering wheel buttons and door handles, providing the ergonomic data required to finalize the user interface (UI). By delivering 30 identical, cosmetically perfect units, we enable multi-stakeholder reviews where every executive holds an identical vision of the final cabin experience.

Optical Sovereignty: High-Clarity Lighting Prototypes

Light transmission is the most unforgiving metric in automotive validation. Modern headlight and taillight designs feature complex light guides, Fresnel lenses, and thick-walled transparent housings that must deliver precise photometric data. Additive manufacturing fundamentally fails here due to internal porosity and UV-yellowing of photopolymers. Automotive Vacuum Casting Prototypes utilizing optical-grade resins like Axson PX 5212 provide 90% light transmission, mirroring the behavior of production Polycarbonate or PMMA. At Jucheng Precision, we subject these resins to deep-vacuum degassing cycles to eliminate light-refracting micro-bubbles. This results in a "Water-White" clarity that allows engineers to verify light distribution patterns and beam cut-offs on a light-bench. Furthermore, our resins are formulated to resist UV degradation during long-term exposure testing, ensuring your lighting prototypes maintain their crystalline aesthetic throughout the entire vehicle development cycle. We bridge the gap between "Digital Ray Tracing" and "Physical Lumens," providing the optical truth required for safety certification.

Thermal Endurance: Functional Under-the-Hood Testing

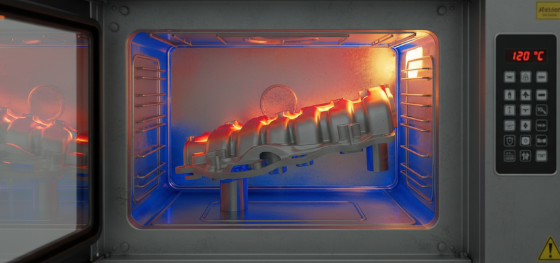

Engine bay environments represent a hostile frontier for prototype materials. Components such as intake manifolds, fluid reservoirs, and sensor housings must survive continuous exposure to 120°C temperatures and aggressive chemical contaminants. Standard 3D prints soften and warp almost immediately in these conditions. Automotive Vacuum Casting Prototypes utilizing high-temp polyurethanes (HDT > 130°C) provide a ruggedized surrogate for functional testing. Jucheng Precision engineers select resins with high elongation-at-break and specific Shore D hardness to allow for rigorous vibration and pressure-cycle audits. This material spine ensures that your functional testing yields actionable data—not just a melted pile of plastic. By performing real-world thermal audits with cast parts, automotive teams can identify stress risers and design flaws in the manifold geometry while the production steel mold is still being cut, preventing the six-figure disaster of a late-stage tooling change.

IATF 16949 Standards: The Road to PPAP Approval

Manufacturing sovereignty in the vehicle sector is built on the foundation of the IATF 16949 quality management system. Jucheng Precision recognizes that a prototype is a technical contract; if the dimensions drift across a batch of 50 units, the validation data is worthless. We implement rigorous process control that mirrors the Production Part Approval Process (PPAP). We utilize high-precision CMM (Coordinate Measuring Machines) to audit every batch of Automotive Vacuum Casting Prototypes, providing full dimensional inspection reports that link back to your digital STEP file. Our material lot traceability ensures that every resin batch is verified via spectrometer to confirm chemical consistency. This level of rigor is why global OEMs trust JUCHENG as their "Bridge to Production." We don't just provide parts; we provide the documented certainty required to move from the testing track to the dealership floor. Stop compromising your automotive engineering goals with fragile mockups. Leverage our decade of chemical replication expertise to certify confidently and launch your next vehicle breakthrough profitably. Contact our technical team today for a free DFM review and see how we can armor your automotive design for the real world.
