Brass Composition: A Guide to the Personality of an Alloy
Views: 12 Author: Allen Xiao Publish Time: 2025-11-18 Origin: Site
The properties of brass are not defined by its name. They are defined by a number. That number is its zinc content.
Many designers simply specify "brass" on their drawings. This is a common but critical mistake. It is like ordering "a car" without specifying if you need a sports car or a delivery truck.
Brass is not one material. It is a huge family of alloys. The brass composition is the secret code that determines its personality. This guide will teach you how to read that code.

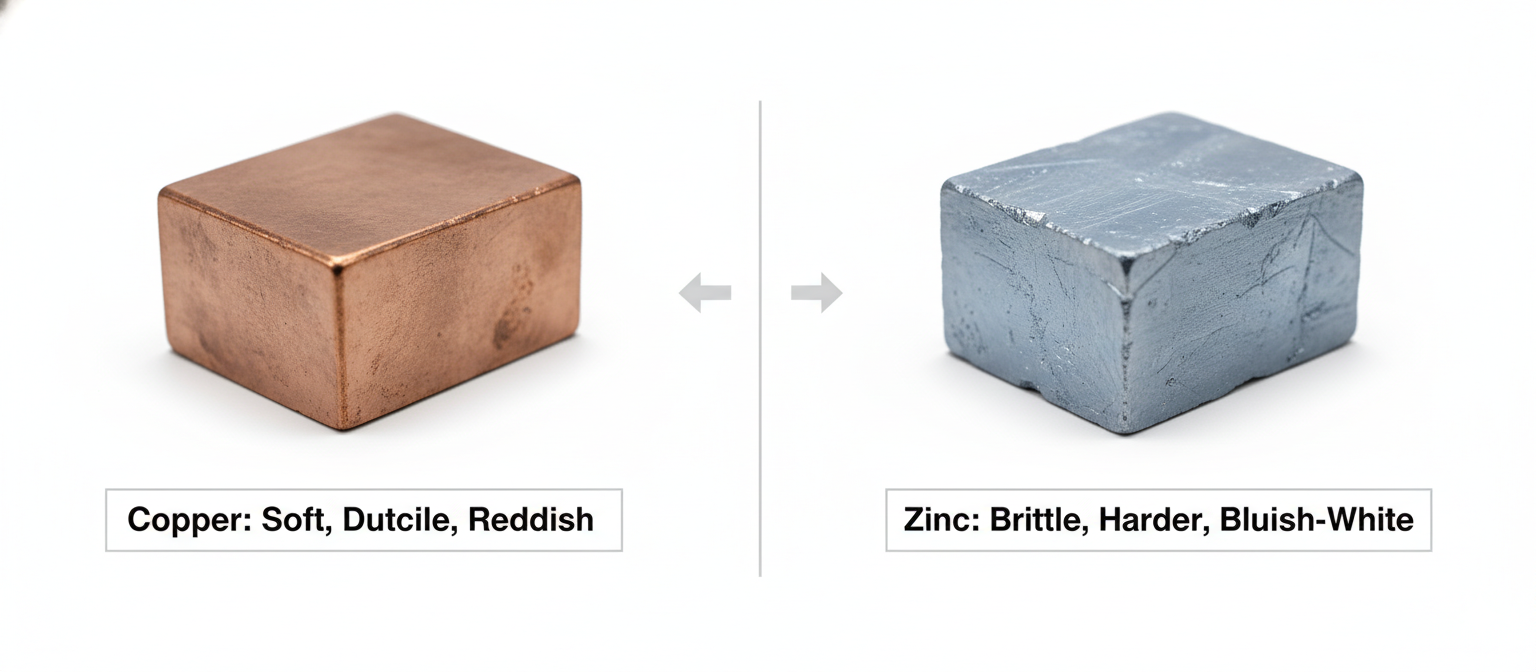

At its core, all brass is a mix of two parent metals: copper and zinc. These two Metallic materials have very different personalities.
Copper is soft. It is ductile, meaning it can be stretched and formed easily. It has a warm, reddish color. It is a great conductor of electricity and heat.
Zinc is the opposite. It is harder. It is more brittle. It has a cool, bluish-white color. It is also much cheaper than copper.
The brass composition is the recipe that blends these two personalities. By changing the percentage of zinc, you can create a huge range of alloys. Each one has a unique balance of strength, color, and workability.
The Machinist's Dream: Free-Machining Brass
Ask any experienced machinist what their favorite material is. Many will say "C360 brass." This alloy is a legend in the manufacturing world.
Its composition is typically around 61.5% copper, 35.5% zinc, and a secret ingredient: about 3% lead.

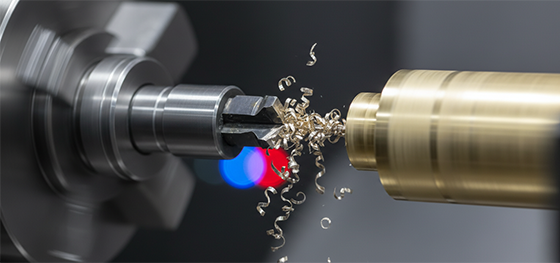

This tiny amount of lead is a miracle for machinability. It makes the metal chips break into small, manageable pieces as they are cut. This is a huge advantage. Long, stringy chips can get tangled in the machine and ruin the part. The small chips of C360 fall away cleanly.
This means we can run our machines at very high speeds. We can create very sharp details and excellent surface finishes with less tool wear. It is the perfect choice for complex, high-volume parts like plumbing fittings, valve bodies, and threaded connectors.
The Artist's Choice: Formable, Red Brasses
Now let's look at the other end of the spectrum. What if your main goal is not machinability, but the ability to bend and shape the metal?
For this, you need a brass with a much higher copper content. Alloys like C230, often called "red brass," can have up to 85% copper.
This high copper content makes the alloy much softer and more ductile. It has more of copper's personality. It can be easily hammered, bent, and stretched into complex curves without cracking.
This is why it is the favorite choice for artists and musical instrument makers. The bell of a trumpet, with its elegant, sweeping curve, is made from a high-copper brass. The alloy also has a beautiful, warm, reddish-gold color that is highly prized for decorative items.
The Engineer's Shield: Brasses for Tough Jobs

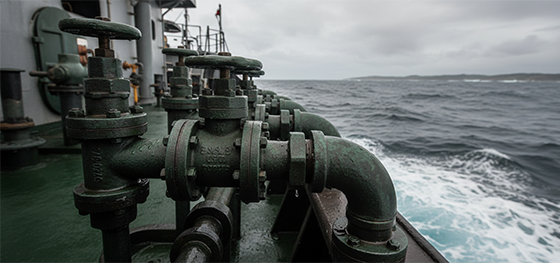

What about applications that need to survive in harsh environments? Like a boat fitting exposed to saltwater.
For these jobs, we need special brass alloys. C464, or "naval brass," is a great example. Its composition has a secret ingredient of its own: a tiny amount of tin (about 1%).
This small addition of tin dramatically increases the alloy's resistance to corrosion. Specifically, it resists a process called "dezincification," where the zinc is leached out of the alloy in saltwater, leaving behind a weak, porous copper structure.
By choosing a specific composition, engineers can design parts that are not only strong and machinable, but also highly durable in a specific corrosive environment.
Why This Matters to You
The brass composition is not just a detail for the manufacturer. It is a critical design decision for you, the engineer.
If your part needs to be mass-produced with many threads and fine details, you should design with C360 in mind. If your part needs to be bent into a beautiful curve, you need a high-copper alloy. If it needs to survive in the ocean, you need a naval brass.
Specifying the right alloy on your drawing is essential. This is where a good manufacturing partner can help. We understand the personalities of these different alloys. We can provide expert advice during the design phase to help you choose the perfect brass composition for your budget, your application, and your manufacturing process.
