Simulating PMMA and PC: Clear Polyurethane Vacuum Casting

Optical perfection remains the most unforgiving critic in the prototyping booth. When an engineering team presents a new headlight signature or a medical diagnostic window to stakeholders, the presence of a single microscopic air bubble or a slight amber tint can jeopardize the entire project’s credibility. In the rigorous domain of polyurethane vacuum casting, transparency is not merely a visual preference; it is a functional mandate. Standard additive manufacturing—even high-end SLA—often fails the "Visual Audit" due to internal striations and UV instability that lead to rapid yellowing. Navigating this hurdle requires the strategic deployment of clear polyurethane vacuum casting. This technology utilizes specialized high-refractive-index resins and a surgical management of atmospheric pressure to replicate the crystalline clarity of PMMA (Acrylic) or Polycarbonate (PC). Jucheng Precision operates as a high-fidelity optics laboratory, ensuring that your transparent prototypes possess the aesthetic soul and photometric accuracy of final mass-production hardware.

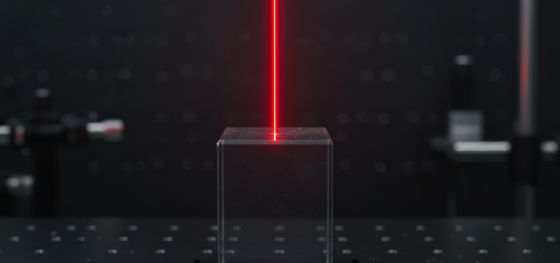

Molecular purity dictates the success of light transmission in complex geometries. Achieving "Water-White" transparency requires more than just pouring clear liquid; it requires an engineering mastery of exothermic peaks and degassing cycles. Jucheng Precision utilizes premium optical systems like Axson PX 5212 to deliver parts that maintain 90% light transmission, ensuring your photometric data is actionable and robust. This guide dissects the atmospheric requirements for bubble-free casting, the chemistry of UV stabilization, and why JUCHENG’s integrated approach to clear replication is the mandatory choice for high-requirement industries like automotive lighting and medical diagnostics.

content:

Atmospheric Sovereignty: The Physics of Degassing

Chemical Integrity: Fighting UV Degradation and Yellowing

Surface Realism: Manual Buffing and Mirror Finishes

Industry Verticals: Validating High-Requirement Optics

Atmospheric Sovereignty: The Physics of Degassing

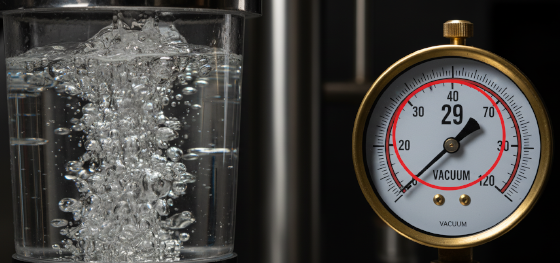

Trapped air is the primary antagonist of clear polyurethane vacuum casting. When the two-part resin is mixed, it inadvertently whips millions of microscopic oxygen and nitrogen bubbles into the viscous liquid. In an opaque part, these bubbles might be hidden; in a clear light guide, they act as prisms, refracting light and ruining the part's photometric intent. Achieving a "zero-defect" transparency requires a deep-vacuum protocol. At Jucheng Precision, we subject our clear resins to a vacuum of 29 inches of Mercury (Hg) within our high-capacity chambers. This negative pressure causes the air bubbles to expand thirty times their original volume, rising to the surface in a violent "boil" before the mixture collapses into a dense, air-free liquid. This process must be timed precisely against the resin’s "Pot Life." If the vacuum is pulled too slowly, the resin begins to cross-link while still bubbling, trapping "frozen voids" in the part. If pulled too fast, the resin may boil over the container. Our master technicians manage this delicate pressure curve to ensure that the liquid entering the silicone mold is as pure and homogeneous as glass, delivering internal clarity that 3D printing simply cannot fathom.

Chemical Integrity: Fighting UV Degradation and Yellowing

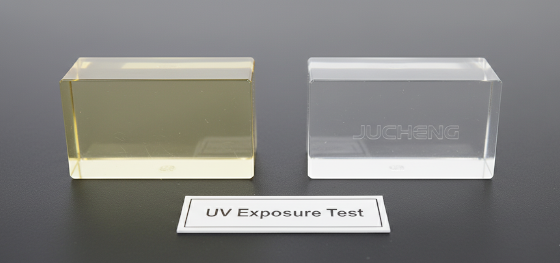

Visual longevity is the hallmark of professional clear replication. Many low-cost clear resins are chemically prone to oxidation and UV degradation, turning from water-white to a sickly amber color within mere days of sun exposure. This phenomenon is unacceptable for automotive exterior lighting or outdoor consumer electronics. Jucheng Precision exclusively utilizes premium clear polyurethanes that are formulated with UV-stabilizers and HALS (Hindered Amine Light Stabilizers). These additives act as chemical "sacrificial shields," absorbing ultraviolet radiation before it can break the molecular bonds of the polymer chain. clear polyurethane vacuum casting at JUCHENG ensures that your prototypes maintain their spectral purity throughout long-term environmental audits and sales conferences. We also carefully manage the "Exothermic Peak" during the curing process. Clear resins generate significant heat as they cure; if the temperature rises too rapidly in thick-walled parts, the center of the component can turn yellow or develop internal stress fractures. We employ staged, gradual heating cycles in our digitally controlled ovens to stabilize the transition, ensuring the material remains optically inert and dimensionally stable.

Surface Realism: Manual Buffing and Mirror Finishes

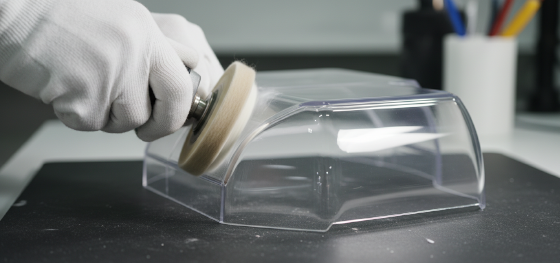

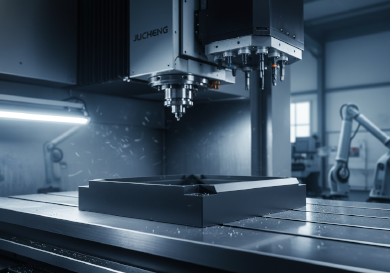

Surface roughness is the enemy of light transmission. A perfectly clear internal resin is worthless if the exterior surface scatters light due to manufacturing noise. clear polyurethane vacuum casting is essentially a parasitic replication process; it only looks as good as the master pattern from which it was born. Jucheng Precision invests significant skilled labor into the "Master Preparation" phase. We utilize 5-axis CNC machining or high-resolution SLA to create the genesis geometry, followed by hundreds of hours of progressive hand-sanding—moving from 400 grit to 2000 grit. The final master is then buffed with a wool wheel and diamond compound to achieve an SPI A2 mirror finish. The liquid silicone mold captures this mirror-like surface with 99.9% fidelity. Once the part is demolded, we apply a high-quality UV-clear coat in our dust-free spray booth. This final layer not only provides an extra barrier against scratching but also fills any sub-micron surface porosity, resulting in an "Optical Sovereignty" that makes the prototype indistinguishable from a mass-produced polycarbonate unit.

Industry Verticals: Validating High-Requirement Optics

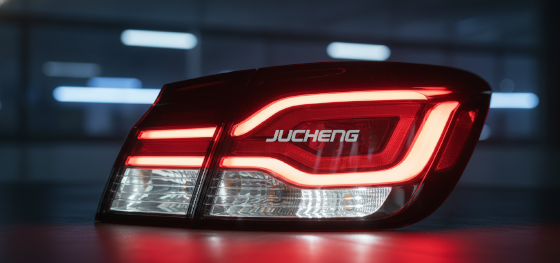

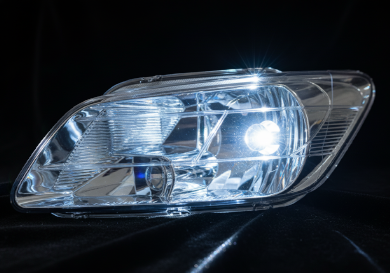

Iterative speed in the automotive and medical sectors relies on accurate physical validation. Automotive lighting engineers utilize JUCHENG's clear polyurethane vacuum casting services to verify beam patterns, Fresnel lens efficiency, and complex internal reflections for headlights and taillights. Because our cast materials possess the flexural modulus and toughness of production PC, these prototypes can be fully assembled with LEDs and subjected to vibration and road-shock testing. In the medical device sector, we produce transparent housings for fluidic manifolds and diagnostic windows where visibility into the internal mechanism is vital for user safety. We provide full material lot traceability, ensuring that the resin used in your batch is documented for your regulatory submission. By delivering 20 to 50 identical, optically perfect units in a matter of days, JUCHENG enables your team to conduct simultaneous marketing shoots and internal thermal audits, ensuring your launch hits the market with 100% confidence. Stop settling for "cloudy" mockups. Experience the crystalline truth that professional chemical replication provides. Contact JUCHENG’s engineering team today for a free DFM review and see how we can bring your optical vision to life.
