conformal cooling injection molding: Breaking the Cycle Time Barrier
Views: 2 Author: Allen Xiao Publish Time: 2026-03-20 Origin: Site
Thermodynamic bottlenecks represent the final frontier of production efficiency. For decades, the Injection molding process has been shackled by the physical limitations of the straight-line drill bit. Traditional cooling channels, restricted by Euclidean geometry, can only reach areas of a mold accessible by a rotating tool. This leaves deep cores, complex ribs, and curved sidewalls as "Thermal Dead Zones" that stubbornly retain heat for seconds longer than the rest of the tool. The resulting differential shrinkage is the primary catalyst for Injection molding defects, specifically catastrophic warpage and rhythmic sink marks. Navigating this physical hurdle requires the strategic deployment of conformal cooling injection molding. This revolutionary technology bypasses the constraints of subtractive machining by utilizing metal 3D printing to "grow" cooling circuits that mirror the exact curvature of your CAD geometry. Jucheng Precision operates as a high-fidelity hybrid foundry, utilizing in-house DMLS metal printing and 5-axis CNC centers to ensure your hardware cools with absolute uniformity. We don't just "drill water lines"; we engineer a 3D thermal defense system that slashes cycle times and locks in dimensional sovereignty for your most ambitious hardware designs.
Establishing a high-velocity production roadmap begins with the rejection of "Prehistoric Quenching." Amateurs view a mold as a static block of steel, unaware that seventy percent of the injection cycle is purely a race against thermal energy. Every second your part spends trapped inside the mold waiting for a "Hot Spot" to solidify is a second of lost revenue. Jucheng Precision eliminates these "Economic Anchors" by providing a comprehensive thermal audit on every complex 3D project. We identify where traditional cooling fails and where conformal cooling injection molding can provide a 10x increase in heat transfer surface area. Whether you are validating a deep-walled medical diagnostic housing or a multi-contoured automotive air vent, our technical advisory ensures your hardware reaches its "Solidification Plateau" in record time. This guide deconstructs the physics of additive tooling, the mathematics of cycle time ROI, and why JUCHENG’s "Hybrid Protocol" is the mandatory foundation for anyone aiming for Low Volume Injection Molding efficiency at scale.
Thermodynamic Dead Zones: The Failure of Linear Drills

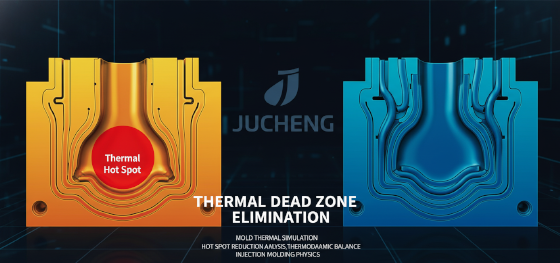

Mechanical constraints in the tool shop often dictate the failure of the parts on the floor. Standard cooling channels are manufactured using industrial drills that follow a straight path. While effective for simple, flat plates, these linear circuits leave a dangerous "Thermal Delta" when encountering complex 3D features. Deep cores, for example, often act as heat reservoirs because a straight drill cannot get close enough to the tip of the feature without compromising the tool's structural modulus. This results in the core remaining 30°C hotter than the cavity side, a recipe for Injection molding warpage. To assist engineers in understanding this physical gap, Jucheng Precision provides the following comparative logic:
Feature
Traditional Drilled Lines
Conformal Cooling Circuits
Geometry Capability
Straight lines only
Unlimited 3D Curvatures
Proximity to Part
Limited (Safety margins)
Precise (2-3mm from face)
Thermal Uniformity
Poor (Hot spots)
Superior (Balanced)
Cycle Time Impact
Base Velocity
20% - 40% Reduction
Molecular Growth: The Physics of DMLS Metal 3D Printing
Manufacturing the impossible is achieved through the layer-by-layer fusion of tool steel. conformal cooling injection molding relies on Direct Metal Laser Sintering (DMLS), an additive process that allows for the creation of internal cavities that subtractive CNC mills simply cannot fathomed. At Jucheng Precision, we use high-power fiber lasers to weld S136 or H13 steel powder into dense, monolithic inserts. This "Molecular Growth" allows our designers to create cooling channels with non-circular cross-sections (like tear-drop shapes) to maintain laminar flow around the part's mounting bosses and deep ribs. We treat these inserts as "High-Performance Heat Exchangers." Once the 3D-printing is complete, we move the inserts to our 5-axis CNC centers for final precision grinding and mirror-polishing. This hybrid approach ensures that the surface finish of your part remains an SPI A-1 mirror, while the hidden internal architecture provides the thermal horsepower needed for high-speed automated production.
Economic Velocity: Shaving Seconds via Conformal Precision

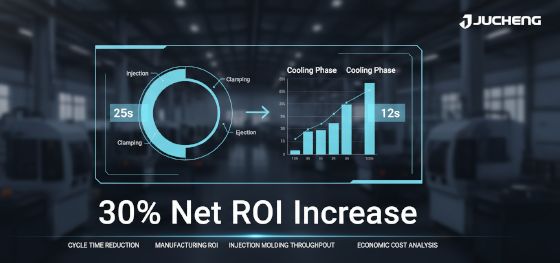

Financial yield in the injection room is anchored by the clock. When you optimize the Injection molding process for speed, you are effectively lowering your "Machine-Hour Tax." For a typical high-performance enclosure, the cooling phase represents the single largest operational expense. By utilizing conformal circuits, Jucheng Precision routinely slashes these wait times. For example, on a complex medical housing with a 30-second cycle, we can often reduce the cooling time by 8 seconds. For a 50,000-unit production run, those 8 seconds translate to over 110 hours of saved machine time—thousands of dollars in direct cost reduction. Below is the ROI impact we observe for projects utilizing conformal cooling injection molding:

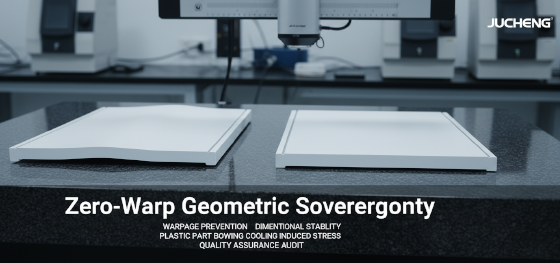

Structural rebellion occurs when a part is ejected before its internal energy is balanced. Injection molding warpage is rarely a result of the pressure; it is a result of non-uniform shrinkage pulling the part into a distorted equilibrium. If the "A-side" of your mold is 10°C cooler than the "B-side," the part will bow toward the cold steel. conformal cooling injection molding eliminates this "Thermodynamic Pull." By placing water channels at an identical 2.0mm distance from every part face, Jucheng Precision ensures that the solidification front moves at a perfectly synchronized velocity through the polymer wall. This eliminates the residual internal stress that plagues thin-walled Injection molding materials like Nylon and Polycarbonate. We provide the manufacturing insurance needed to ensure your housings remain flat and your assemblies remain watertight, even under the most aggressive environmental soak tests.
Manufacturing excellence at Jucheng Precision is built on the foundation of the integrated supply chain. We are one of the few facilities globally that combines a Tier-1 tool shop with in-house industrial DMLS printing. This allows us to manage your part's "Thermal Destiny" without the delay of third-party vendors. When you upload a CAD file to our facility, our veteran engineers perform a comprehensive "Thermal Bottleneck Audit." We identify the hot spots that will ruin your yield and propose 3D-printed inserts to neutralize them before the first chip of steel is cut. We provide full material lot traceability and CMM dimensional inspection reports for every batch, ensuring your hardware journey is lean, predictable, and market-ready. Stop compromising your hardware vision with prehistoric cooling. Leverage our decade of hybrid replication mastery to validate rapidly, launch early, and scale profitably. Contact our technical team today for a free DFM review. Our experts will identify Injection molding process bottlenecks before they cost you money, ensuring your transition to production is seamless, stable, and retail-ready.
