Choosing the Right Resin for Your Vacuum Casting Project
Views: 1 Author: Allen Xiao Publish Time: 2025-12-02 Origin: Site
In the world of manufacturing, the word "resin" is both one of the most common and one of the most confusing terms. It is a bit like the word "metal." It does not refer to one specific thing. It refers to a huge category of materials.
So, when an engineer asks for "Resin vacuum casting," our first and most important question is always the same: "Which resin?"
Choosing the right resin is the single most important decision in this process. It will define your prototype's properties, performance, and its ability to truly mimic your final product. This guide will demystify the word "resin" and show you why one particular family of resins is the undisputed champion of this technology.

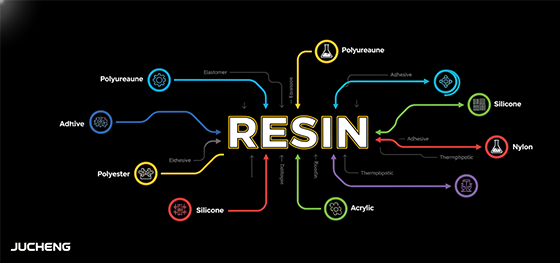

In polymer chemistry, "resin" is a general term for a liquid that can be cured into a solid. There are many different families of thermosetting resins.
Epoxy resins are famous for their high strength and use as adhesives. Polyester resins are often used with fiberglass to make large, strong structures like boat hulls. Silicone resins are used to make the flexible molds for the vacuum casting process itself.
And then there are polyurethane resins. While all of these are technically "resins," in the world of professional Resin vacuum casting for product prototypes, one family dominates all others for its versatility and performance. That family is polyurethane.
Polyurethane: The Champion of Prototyping Resins
Why is polyurethane the king of this process? Because it is a chameleon. The family of polyurethane vacuum casting materials is enormous.
By changing the chemical formulation, a materials chemist can create a polyurethane resin that perfectly mimics the properties of almost any production thermoplastic. This is the magic of polyurethane vacuum casting.

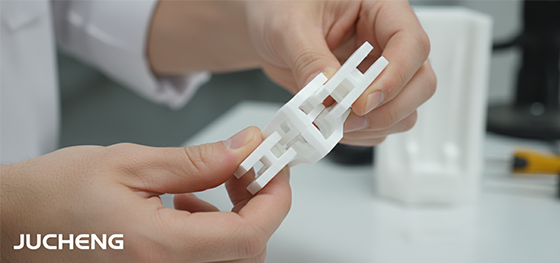

We can choose a rigid, high-performance polyurethane that feels and behaves just like ABS, PC, or Nylon. It will be strong, stiff, and dimensionally stable.
Or, we can choose a soft, flexible, elastomeric polyurethane that feels just like rubber or silicone. We can even dial in the exact hardness, from gel-soft to tire-firm.
This incredible versatility is what makes the process so powerful. It allows us to create a prototype that does not just look like your final product, but also feels and performs like it.
Other Resins: Understanding Their Roles
While polyurethane is the star, other resins do have their place, but usually not in functional prototyping.
Epoxy resins are sometimes used for casting. They are very strong and have low shrinkage. But they are often more brittle than polyurethanes. They are more commonly used in the art and hobby world for creating crystal-clear encapsulations, or "river tables."
Polyester resins are very cheap. But they have high shrinkage, which means the final part is not very dimensionally accurate. They also have a very strong, unpleasant odor. They are almost never used for high-quality prototype parts.
For the world of professional prototyping, polyurethane offers the best balance of performance, versatility, and accuracy.
Matching the Resin to the Job
So, when you are planning your project, the key is to define your needs.
What production material are you trying to simulate? What is the most important property for your prototype to have? Is it rigidity? Impact strength? Flexibility? Heat resistance?
Based on your answers, an experienced manufacturing partner can then select the perfect polyurethane resin from their library. They will look at the datasheets. They will compare the flexural modulus, the impact strength, the heat deflection temperature, and the shore hardness.
This is a data-driven, engineering-led decision. It ensures that the Resin vacuum casting process yields a part that gives you truly valuable and reliable feedback.
Why a Specialist Partner Matters
Working with these advanced resins requires expertise. Each formulation has its own unique quirks.

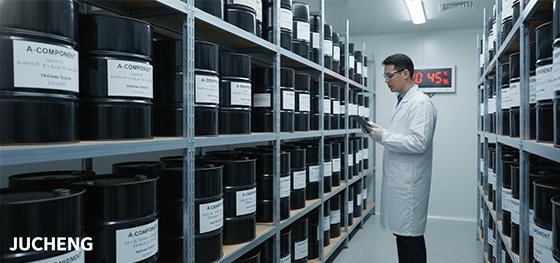

They must be stored in a climate-controlled environment. They must be mixed in a precise ratio. They must be properly degassed under vacuum. And they require specific curing times and temperatures.
A specialist partner like JUCHENG has this expertise. We have a deep knowledge of the wide range of vacuum casting materials available. We can provide you with not just a part, but with a full consultation.
We help you clarify your needs. We guide you to the right resin. And then we execute the process with the precision and control needed to create a perfect prototype. This partnership turns a confusing term like "resin" into a powerful manufacturing solution.
